Запчасти Case 1150M WT/LGP (89.128.AC[01]) - RIPPER, MECHANICAL (89) - TOOLS

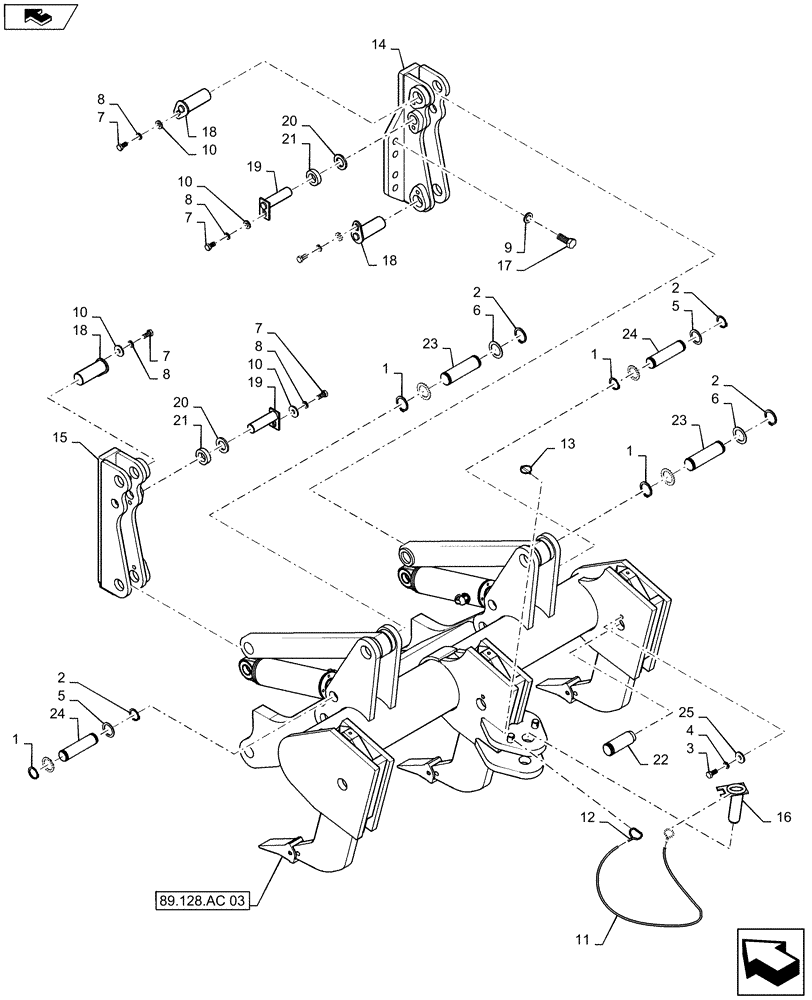

Схема запчастей Case 1150M WT/LGP - (89.128.AC[01]) - RIPPER, MECHANICAL (89) - TOOLS
3
8
1
18
25
5
19
2
2
12
11
19
23
13
24
20
2
24
5
6
8
16
22
7
20
10
7
10
1
9
14
10
10
8
18
7
7
18
21
1
1
23
8
15
2
4
6
89.128.ac 03
21
17
home

Артикул

Название

Примечание

Количество

1

103-16175

SNAP RING,#175, Ext

Circle Clip

4шт.

2

103-16200

SNAP RING,#200, Ext

Circle Clip

8шт.

3

409-91020

BOLT

3шт.

4

492-11062

BEARING WASHER,5/8"

3шт.

5

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

4шт.

6

495-81282

WASHER,2 1/16" x 3" x .109"

8шт.

7

614-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 8.8, Full Thd

6шт.

8

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

6шт.

9

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

18шт.

10

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

6шт.

11

47496259

CABLE,405mm L

Lanyard

1шт.

12

47496260

SLEEVE

Aluminum

2шт.

13

A30338

PIN

Klik

1шт.

14

47670617

BRACKET

Ripper Mounting Bracket Right Hand

1шт.

15

47670625

BRACKET

Ripper Mounting Bracket Left Hand

1шт.

16

87339515

PIN

Drawbar

1шт.

17

87564731

BOLT,Hex, M24 x 80mm, Cl 10.9

18шт.

18

87355606

PIN,50.8mm OD x 144.78mm L

Plated

4шт.

19

87355608

PIN,38.1mm OD x 144.78mm L

Plated

2шт.

20

87383796

WASHER

Plated Spacer

2шт.

21

87383797

WASHER

Plated Spacer

2шт.

22

87383798

PIN,50.8mm OD x 139.7mm L

3шт.

23

87383799

PIN,50.8mm OD x 179.8mm L

4шт.

24

87383800

PIN,44.45mm OD x 179.8mm L

2шт.

25

419223A1

WASHER

3шт.

Выбрано товаров: 25
