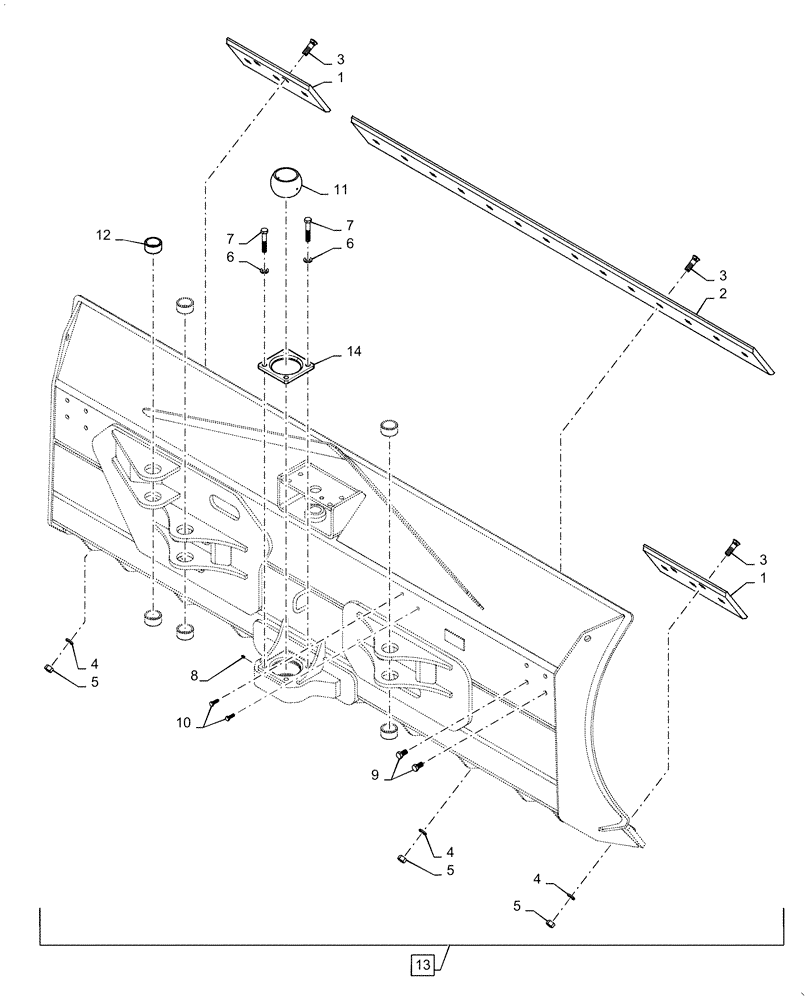

Запчасти Case 1150M WT/LGP (86.110.AD[02]) - BLADE, 132 INCH CUTTING EDGE (86) - DOZER

1

R42490

END

Standard

2шт.

2

87313382

BIT

1шт.

3

R56474

PLOW BOLT

Dome Hd, 3/4-10 X 2.5 Grade 8

26шт.

4

92-11075

LOCK WASHER,3/4"

26шт.

5

29-1012

NUT,3/4"-10, G8

26шт.

6

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16 X 17.75 X 31.5 X 4.2 Hts Boron

4шт.

7

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

4шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

9

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

8шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

11

87314613

BUSHING

Roller, 3.25 Diameter

1шт.

12

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

6шт.

13

84599293

DOZER BLADE

Incl 1 - 12, 14

1шт.

14

84545666

CAP

1шт.
