Запчасти Case 1150M WT/LGP (71.460.AB [02]) - GREASE, HOSE (71) - LUBRICATION SYSTEM

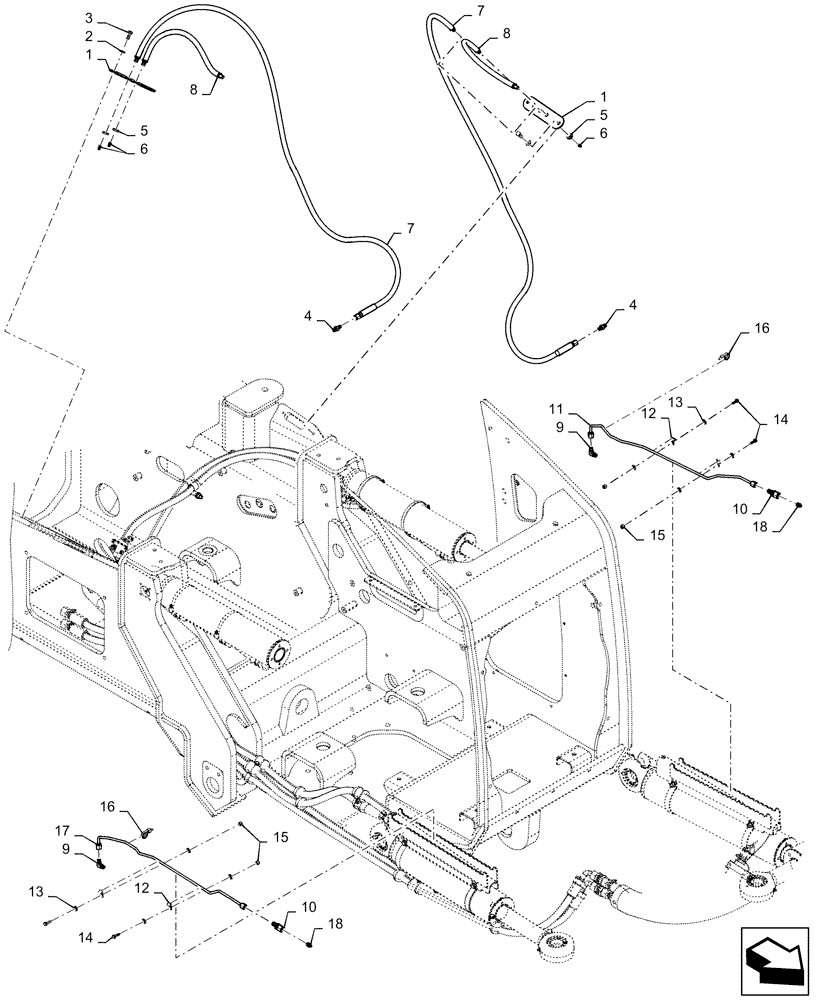

Схема запчастей Case 1150M WT/LGP - (71.460.AB [02]) - GREASE, HOSE (71) - LUBRICATION SYSTEM
18
4
13
13
5
9
10
18
1
14
9
10
6
5
4
2
7
16
16
8
17
14
15
7
1
12
15
6
11
12
8
3

Артикул

Название

Примечание

Количество

1

47550901

PLATE

2шт.

2

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

3

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

4

86513589

HYD CONNECTOR,7/16" - 20 JIC x 1/8" - 27 NPT

2шт.

5

F53473

LOCK NUT,1/8-27 NPSM

8-27 NPSM Bank Lube Hose

5шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

5шт.

7

47533452

HOSE,4.76mm ID x 1720mm L, SAE 100R2

C Frame Pivot

2шт.

8

47512589

HOSE,3.97mm ID x 400mm L, SAE 100R2

2шт.

9

86512947

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

2шт.

10

47550022

ELBOW

2шт.

11

47550217

TUBE

Angle Eye Grease LH

1шт.

12

47551531

CLIP

4шт.

13

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

8шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

15

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

4шт.

16

L18331

CABLE TIE,375.9mm L, Nylon

2шт.

17

47533445

TUBE

Angle Eye Grease RH

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

Выбрано товаров: 18
