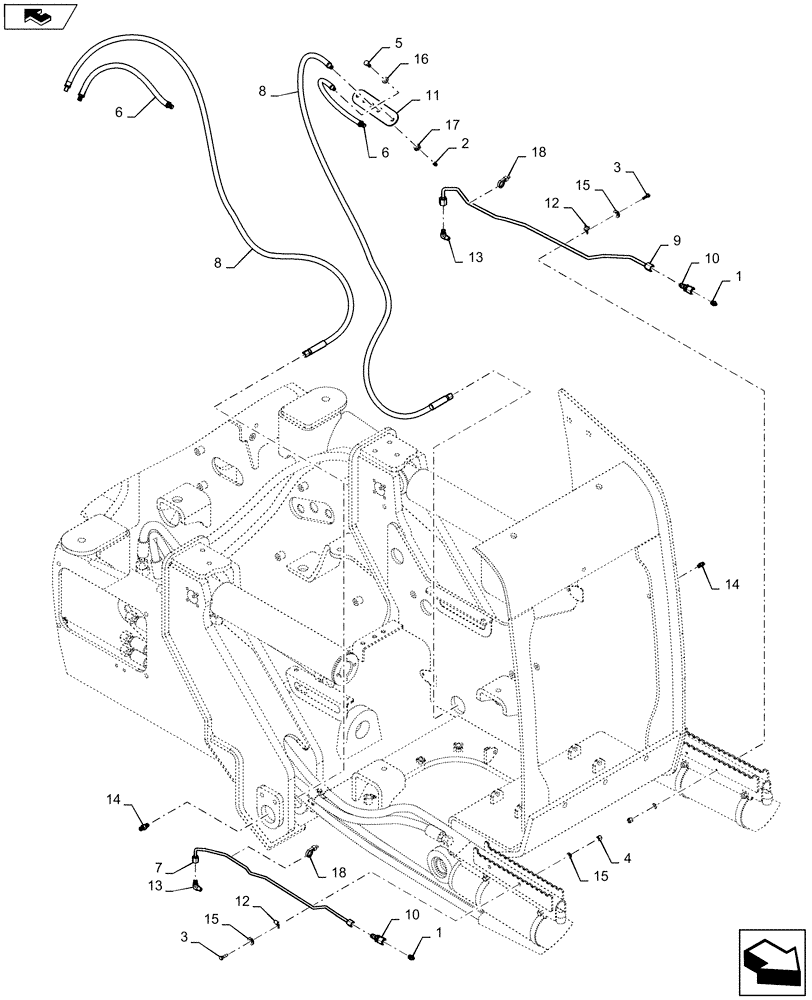

Запчасти Case 1150M WT/LGP (71.460.AB[01]) - LUBRICATION LINE (71) - LUBRICATION SYSTEM

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

3

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

4

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

4шт.

5

47471614

BOLT

M8 X 16 CLASS 8.8 ZND

4шт.

6

47512589

HOSE,3.97mm ID x 400mm L, SAE 100R2

2шт.

7

47533451

TUBE

1шт.

8

47533452

HOSE,4.76mm ID x 1720mm L, SAE 100R2

2шт.

9

47547216

TUBE

1шт.

10

47550022

ELBOW

2шт.

11

47550901

PLATE

2шт.

12

47551531

CLIP

4шт.

13

86512947

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

2шт.

14

86513589

HYD CONNECTOR,7/16" - 20 JIC x 1/8" - 27 NPT

2шт.

15

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

8шт.

16

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

17

F53473

LOCK NUT,1/8-27 NPSM

4шт.

18

L18331

CABLE TIE,375.9mm L, Nylon

2шт.
