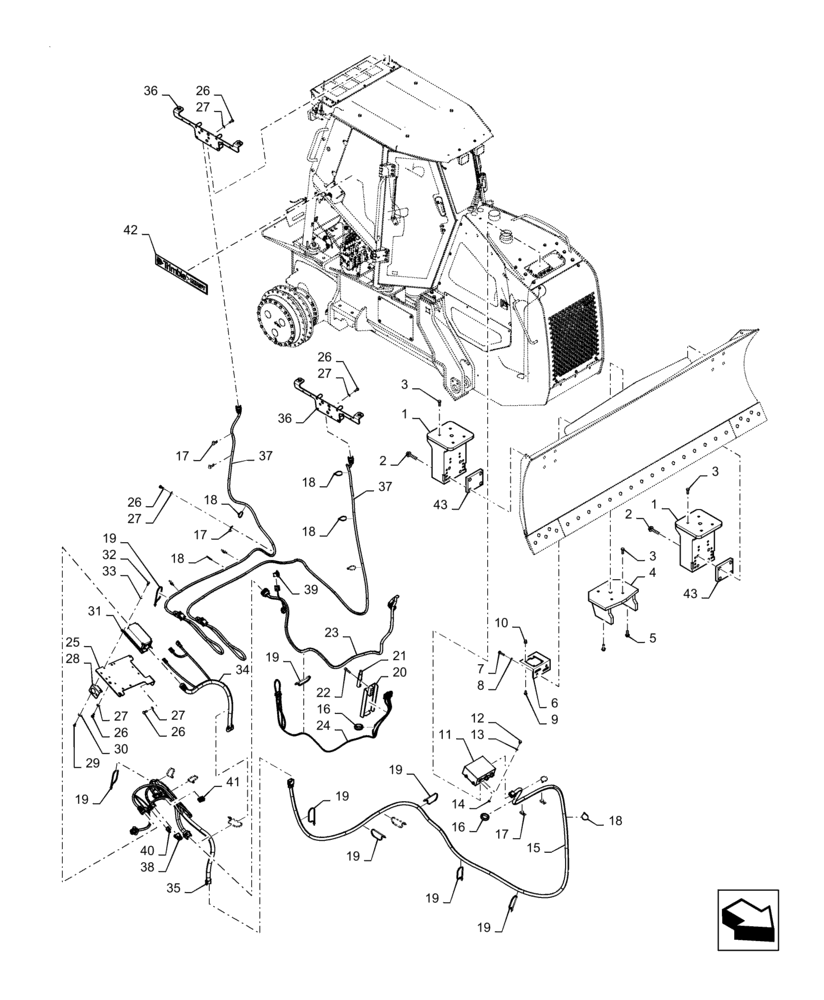

Запчасти Case 1150M WT/LGP (55.680.AA[01]) - TRIMBLE READY INSTALLATION (55) - ELECTRICAL SYSTEMS

1

47411774

BRACKET

Dozer Side Mast, Trimble

2шт.

2

47410091

BOLT

8шт.

3

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

12шт.

4

47411775

BRACKET

Center Mast, Trimble

1шт.

5

86981487

BOLT,Flange, M12 x 35mm, Full, Cl 10.9 DOR

4шт.

6

47411778

BRACKET

Slope Sensor, Trimble

1шт.

7

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

8

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

9

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

4шт.

10

87310307

CROWN NUT,Crown, 1/4"-20

4шт.

11

47411781

BRACKET

Quicks, Trimble

1шт.

12

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

13

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

14

43362

NUT,M8 x 1.25, Cl 10

2шт.

15

47411793

WIRE HARNESS

Quicks Assy

1шт.

16

87423314

GROMMET,1.5" ID x 2.125" ID x 0.562" Thk

2шт.

17

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

9шт.

19

L18331

CABLE TIE,375.9mm L, Nylon

18шт.

20

47411783

BRACKET

Display Plate

1шт.

21

47466111

POST

Trimble Display

1шт.

22

86512139

HEX SOC SCREW,M10 x 40mm, Cl 12.9

2шт.

23

47411794

WIRE HARNESS

Display

1шт.

24

47466112

WIRE HARNESS

Lightbars

1шт.

25

47411785

BRACKET

Controller, Trimble

1шт.

26

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

27

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

28

47467619

BRACKET

Diagnostic Connector, Mounting

1шт.

29

43232

BOLT,Hex, M8 x 16mm, Cl 10.9

2шт.

30

13578378

WASHER,8.15mm ID x 24mm OD x 2mm Thk

2шт.

31

47467614

CONTROLLER

1шт.

32

87646159

BOLT,Hex, M8 x 20mm, Cl 8.8

4шт.

33

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

4шт.

34

47365599

WIRE HARNESS

Interface, Trimble

1шт.

35

47411786

WIRE HARNESS

Main, Trimble

1шт.

36

47411780

BRACKET

Radio

1шт.

37

47411795

WIRE HARNESS

Radio, Cab

1шт.

38

47410329

DUST CAP

DTS, Cab

1шт.

39

84391168

CAP

8 Way

1шт.

40

84391166

WIRE CONNECTOR,Male, 4 Pins

4 Way

1шт.

41

84391169

CAP,Male, 2 Pins

Male Receiver

1шт.

42

47560212

DECAL

Trimble Ready

3шт.

43

47882848

SPACER

Guidance Bracket, CE Gray

2шт.
