Запчасти Case 1150M WT/LGP (55.512.CL[03]) - JOYSTICK WITHOUT THUMBWHEEL (55) - ELECTRICAL SYSTEMS

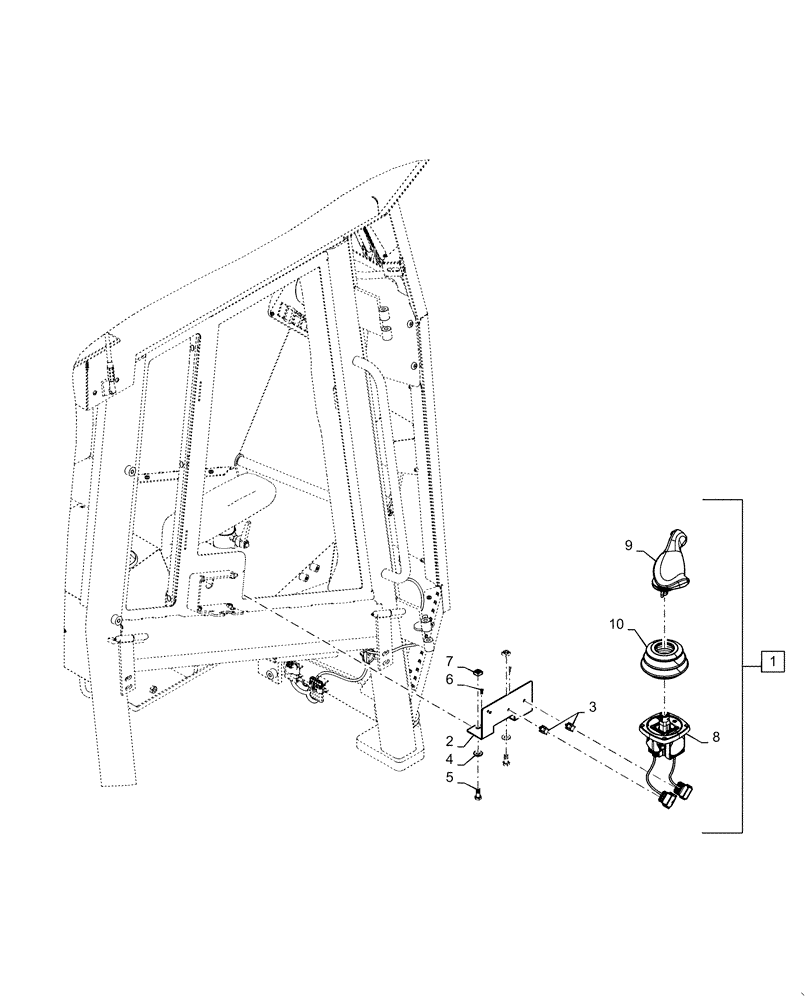

Схема запчастей Case 1150M WT/LGP - (55.512.CL[03]) - JOYSTICK WITHOUT THUMBWHEEL (55) - ELECTRICAL SYSTEMS
3
6
5
9
1
4
7
8
2
10

Артикул

Название

Примечание

Количество

1

47387251

JOYSTICK

Dozer Blade Controls, Incl 8 - 10

1шт.

2

47429724

PLATE

Painted Plate Harness Mount

1шт.

3

84322203

CLIP

Wire Connector Mounting

2шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

M10 10.65 x 23.0 x 2.2

2шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

7

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

Square 10M - 1.5 W/Retaining CLS

2шт.

8

47527312

JOYSTICK

Base Assembly, Dozer Blade Controls

1шт.

9

47408442

JOYSTICK

Grip, Dozer Blade Controls

1шт.

10

84370045

BOOT

Joystick

1шт.

Выбрано товаров: 10
