Запчасти Case 1150M WT/LGP (55.510.AF[01]) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

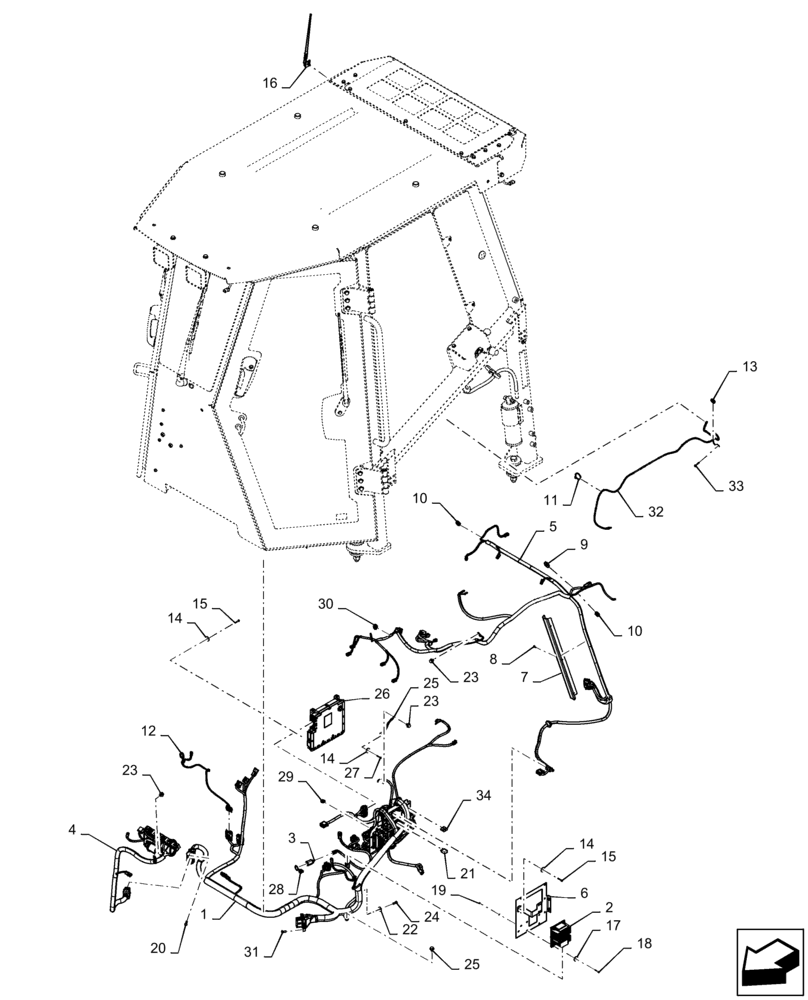

Схема запчастей Case 1150M WT/LGP - (55.510.AF[01]) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS
9
12
19
21
25
29
2
14
14
1
34
5
27
23
11
23
25
17
14
15
33
24
6
20
30
10
31
13
15
4
3
32
22
10
8
16
28
18
7
23
26

Артикул

Название

Примечание

Количество

1

47678807

WIRE HARNESS

Main

1шт.

2

47409027

CONVERTER,24V To 12V

1шт.

3

283779A1

POWER SOCKET,12V

1шт.

4

47510638

WIRE HARNESS

Dashboard

1шт.

5

47681282

WIRE HARNESS

Cab A/C Light

1шт.

6

47395977

PLATE

Harness Mount

1шт.

7

84470975

GUARD

Cover, Wire Harness

1шт.

8

13276217

SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd

3шт.

9

87615074

GROMMET

Condenser

1шт.

10

87577766

GROMMET

Rear Lights

2шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

49шт.

12

84382961

WIRE HARNESS

Cab

1шт.

13

87577768

GROMMET

Antenna Cable

1шт.

14

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

12шт.

15

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

16

197745A1

ANTENNA

Radio

1шт.

17

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

12шт.

18

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

6шт.

19

825-1405

NUT,M5, Cl 8

6шт.

20

84415413

SCREW,Pan, 10-16" x 5/8 C/R, SST

2шт.

21

87696395

RELAY,5-PIN 280 SERIES 24V

5 Pin, 280 Series, 24V

1шт.

22

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

23

86509558

FLANGE BOLT,Hex, M10 x 12mm, Cl 8.8

4шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

25

87413162

GROUND STRAP

Cold Start

1шт.

26

84328725

ECU

UCM.24V.STD2

1шт.

26

84328725R

REMAN ELECT CONTROL

UCM.24V.STD2

1шт.

26

84328725C

CORE-ELECTRONIC CONT

Return Number

1шт.

27

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

4шт.

28

283781A1

CAP,Polyester Elastomer

Power Plug

1шт.

29

84467169

GROMMET

Seat

1шт.

30

86982772

GROMMET

Antenna Cable

1шт.

31

540-712

SCREW,Cross Pan Hd, M5 x 12

4шт.

32

87372520

ANTENNA

Cable

1шт.

33

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

1шт.

34

84425139

FUSE,25A, White

A/C, 40Amp

2шт.

Выбрано товаров: 36
