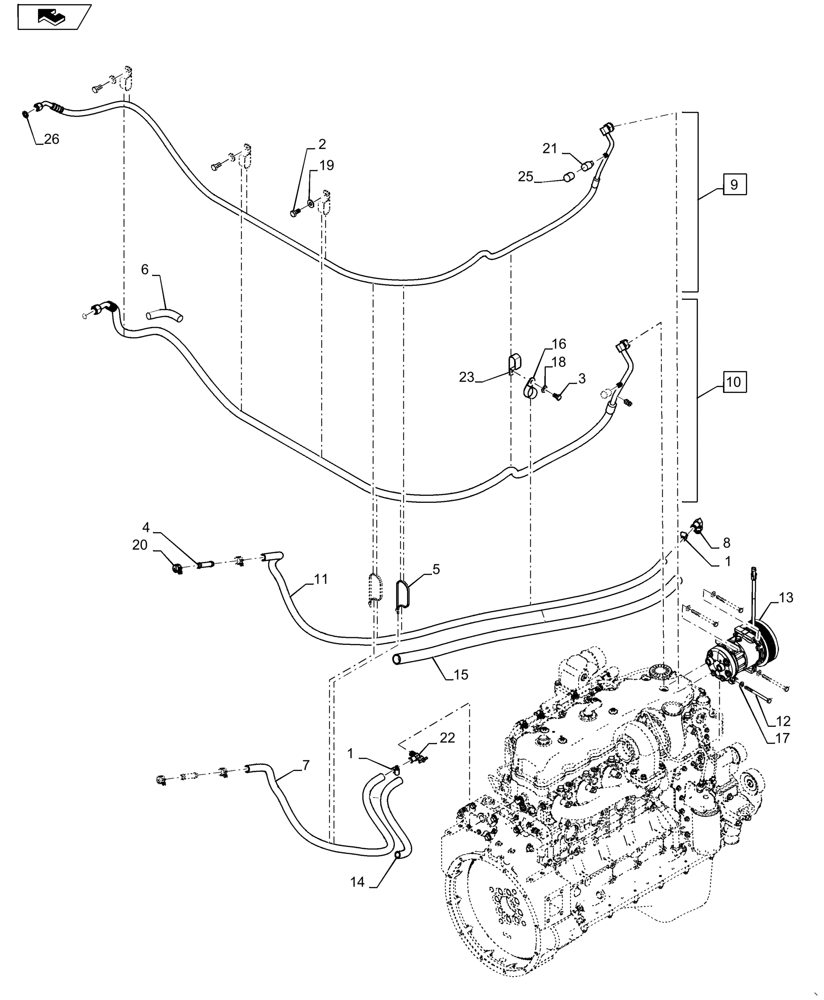

Запчасти Case 1150M WT/LGP (55.050.AL[02]) - HVAC AND HEATER PLUMBING (55) - ELECTRICAL SYSTEMS

1

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

3

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

4

S104739

TUBE,0.625" OD x 3" L

Hose Splice

2шт.

5

L18331

CABLE TIE,375.9mm L, Nylon

2шт.

6

84292617

CONDUIT

2шт.

7

84414424

HEATER HOSE

Supply

1шт.

8

84559989

FITTING,1/2" TUBE TO 5/8" HOSE

ORB to Hose

1шт.

9

84567344

A/C HOSE

Incl 21, 25, 26

1шт.

10

84567346

A/C HOSE

Incl 25, 26

1шт.

11

84568732

HEATER HOSE

Return

1шт.

12

86512165

BOLT,Hex, M8 x 100mm, Cl 10.9

3шт.

13

86983968

COMPRESSOR

A/C 24V

1шт.

13

86983968R

REMAN-COMPRESSOR

A/C 24V

1шт.

13

86983968C

CORE-COMPRESSOR

Return Number

1шт.

14

87323423

CONDUIT

Heater Supply

1шт.

15

87325547

CONDUIT

Heater Return

2шт.

16

87353455

CLAMP,34.9mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

17

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

18

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

1шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

20

1954736C1

HOSE CLAMP,#24

4шт.

21

284273A2

SWITCH, A/C HIGH PRE

1шт.

22

A16764

VALVE

Shut Off

1шт.

23

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Insulated

5шт.

25

122554A1

CAP

2шт.

26

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

4шт.
