Запчасти Case 1150M WT/LGP (50.200.AK[01]) - AIR CONDITIONING CONDENSER (50) - CAB CLIMATE CONTROL

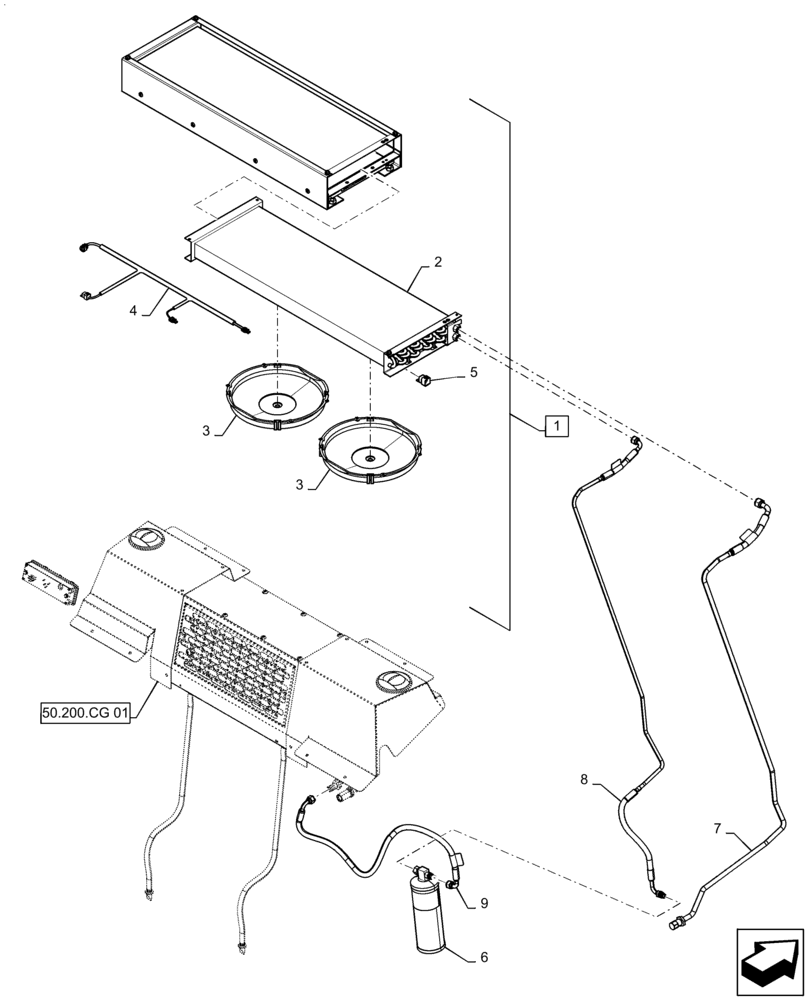

Схема запчастей Case 1150M WT/LGP - (50.200.AK[01]) - AIR CONDITIONING CONDENSER (50) - CAB CLIMATE CONTROL
6
2
50.200.cg 01
3
7
5
4
1
8
9
3

Артикул

Название

Примечание

Количество

1

84406516

CONDENSER

Air Conditioning System, Incl 2 - 5

1шт.

2

87721572

CONDENSER

Core Assembly

1шт.

3

87587491

FAN

Assy, Pancake, 24 Volt

2шт.

4

84406877

WIRE HARNESS

Internal Condenser

1шт.

5

87586970

RELAY

24 Volt

1шт.

6

87696535

RECEIVER-DRYER,Air Conditioner

1шт.

7

84549568

TUBE

Condenser To Bulkhead

1шт.

8

84419018

A/C HOSE

Condenser To Receiver-Dryer

1шт.

9

84419019

A/C HOSE,9.53mm ID x 810.77mm L

Receiver_Dryer to Cab A/C Unit

1шт.

10

87397412

CONTROL

Cab A/C

1шт.

Выбрано товаров: 10
