Запчасти Case 1150M WT/LGP (48.138.AB[04]) - YOKE, ADJUSTER (48) - TRACKS & TRACK SUSPENSION

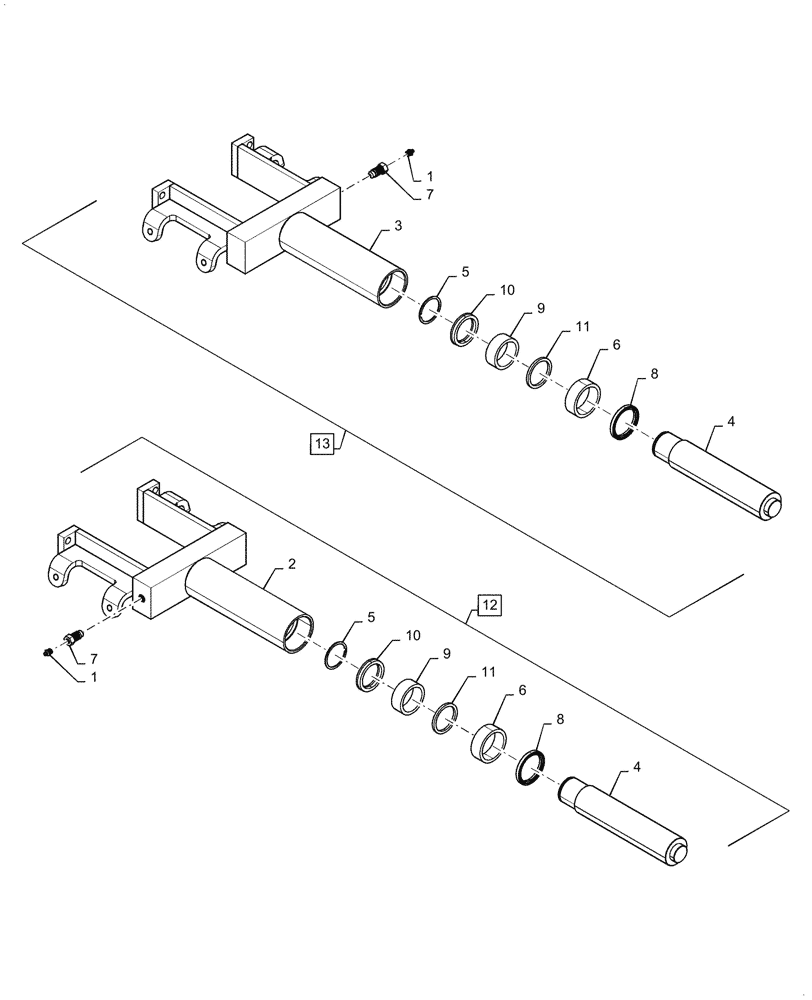

Схема запчастей Case 1150M WT/LGP - (48.138.AB[04]) - YOKE, ADJUSTER (48) - TRACKS & TRACK SUSPENSION
13
8
3
9
8
4
11
6
1
12
9
2
7
6
5
5
10
11
1
7
4
10

Артикул

Название

Примечание

Количество

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

2

NSS

NOT SOLD SEPARAT

LH, Yoke W/ Idler, Incl in 12

1шт.

3

NSS

NOT SOLD SEPARAT

RH, Yoke W Idler, Incl in 13

1шт.

4

345091A1

PISTON

Hydraulic, Track Adjuster

2шт.

5

A32413

SNAP RING,#212, 1.997", Ext

2шт.

6

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

2шт.

7

D35287

CHECK VALVE,5/8" - 18

2шт.

8

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

2шт.

9

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

2шт.

10

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

2шт.

11

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

2шт.

12

87309196

YOKE

LH, Yoke Assembly, Incl 1,2, 4 - 11

1шт.

13

87309195

YOKE

RH, Yoke Assembly, Incl 1, 3 - 11

1шт.

Выбрано товаров: 13
