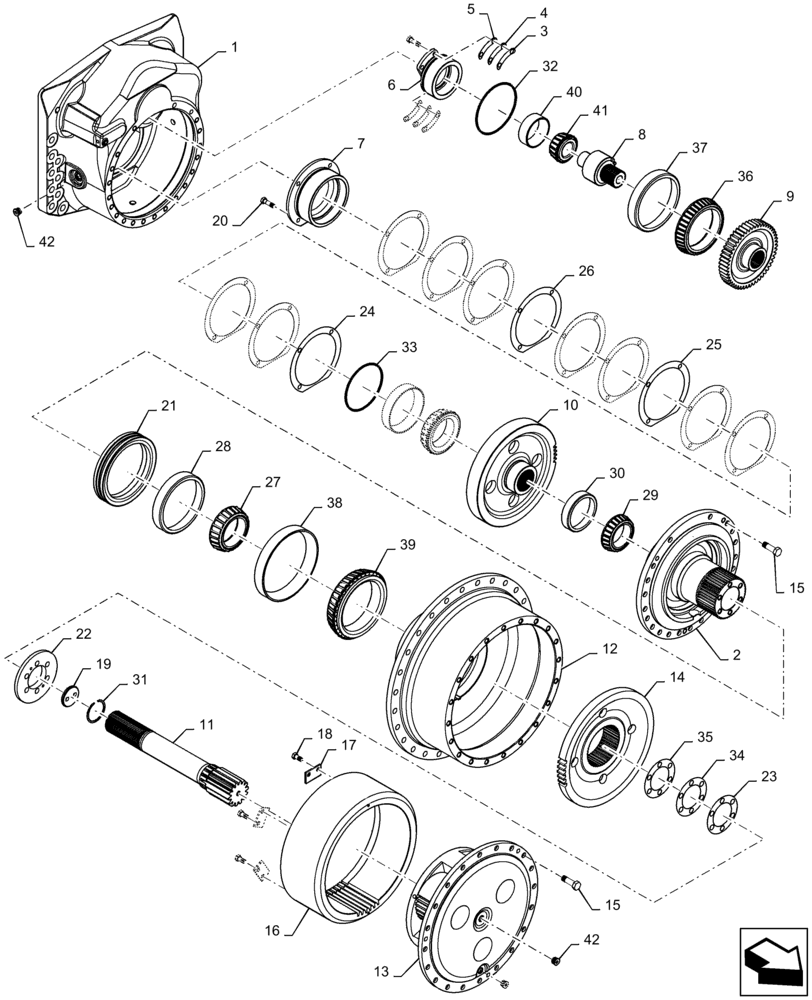

Запчасти Case 1150M WT/LGP (48.130.AJ[02]) - FINAL DRIVE, WIDE TRACK (48) - TRACKS & TRACK SUSPENSION

1

47447180

FINAL DRIVE HOUSING

1шт.

2

87452186

SPINDLE

1шт.

3

G107613

SHIM

0.08 MM

1шт.

4

G107614

SHIM

0.18 MM

1шт.

5

G107615

SHIM

0.51 MM

1шт.

6

87452193

BEARING COVER,103.162 mm ID x 132.89 mm OD x 55.1 mm

1шт.

7

87452194

BEARING COVER,156.949 mm ID x 177.85 mm OD x 65 mm

1шт.

8

87610432

IDLER PINION

1шт.

9

87610438

DRIVEN GEAR

1шт.

10

47450062

DRIVEN GEAR

1шт.

11

87309912

GEAR

1шт.

12

87452188

HUB

1шт.

13

87309913

PLANET CARRIER

1шт.

14

87309916

RING CARRIER

1шт.

15

606-16050

BOLT,Hex, M16 x 50mm, Cl 10.9

47шт.

16

87309917

GEAR

1шт.

17

87452214

RETAINER

6шт.

18

606-12025

BOLT,Hex, M12 x 25mm, Cl 10.9

12шт.

19

87452199

RETAINER

1шт.

20

606-12040

BOLT,Hex, M12 x 40mm, Cl 10.9

10шт.

21

G107620

SEAL,193.22mm ID x 238.89mm OD x 42.46mm Thk

1шт.

22

87452201

ADJUSTING PLATE

1шт.

23

87452202

SHIM,82mm ID x 133mm OD x 0.08mm Thk

0.08 MM

1шт.

24

87452195

SHIM

0.18 MM

1шт.

25

87452196

SHIM

0.51 MM

1шт.

26

87452197

SHIM

1шт.

27

G103915

TAPERED BEARING,142.88mm ID x 39.69mm W

1шт.

28

G100240

BEARING CUP,200.03mm OD x 34.13mm W

1шт.

29

87313983

BEARING ASSY,99.97mm ID x 42mm W

2шт.

30

87313985

BEARING CUP,156.97mm OD x 34mm W

2шт.

31

D32043

RING

1шт.

32

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

33

238-5261

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

1шт.

34

87452203

SHIM,82mm ID x 133mm OD x 0.18mm Thk

0.18 MM

1шт.

35

87452204

SHIM,82mm ID x 133mm OD x 0.51mm Thk

0.51 MM

1шт.

36

84986C1

BEARING ASSY,49.21mm ID x 44.48mm W

1шт.

37

65721C1

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

1шт.

38

A140151

BEARING CUP

1шт.

39

A140150

ROLLER BEARING,6.875" ID x 1.875"

1шт.

40

84987C1

BEARING ASSY

1шт.

41

84986C91

BEARING

1шт.

42

218-5210

PLUG,Hex, 3/4"-16 ORB

5шт.
