Запчасти Case 1150M WT/LGP (48.130.AJ[01]) - FINAL DRIVE, WIDE TRACK (48) - TRACKS & TRACK SUSPENSION

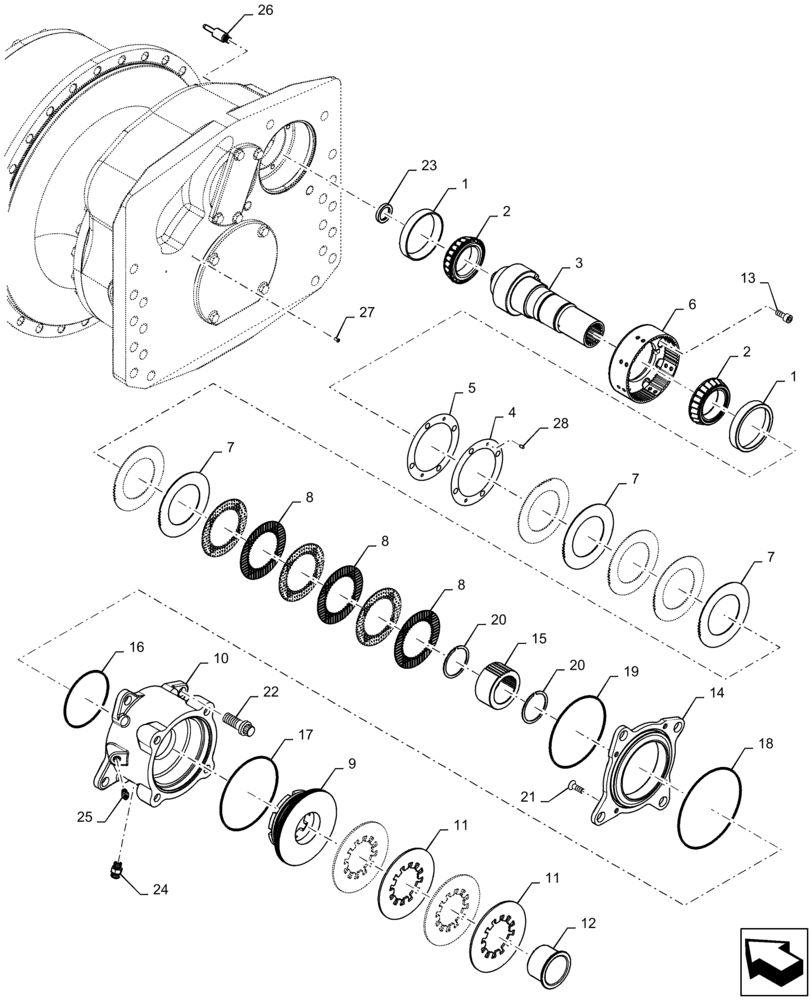

Схема запчастей Case 1150M WT/LGP - (48.130.AJ[01]) - FINAL DRIVE, WIDE TRACK (48) - TRACKS & TRACK SUSPENSION
15
20
2
14
2
5
16
7
17
4
3
9
20
7
8
1
12
10
8
18
27
11
8
11
22
28
1
6
13
26
23
19
25
21
7
24

Артикул

Название

Примечание

Количество

1

A136128

BEARING CUP

2шт.

2

A136127

ROLLER BEARING,2.5591" ID x 0.9055"

2шт.

3

47504510

PINION

1шт.

4

84322474

SHIM

1шт.

5

47506895

SHIM

1шт.

6

84304614

FINAL DRIVE HOUSING

1шт.

7

345335A2

PLATE

7шт.

8

84163978

DISC

6шт.

9

87577298

PISTON

1шт.

10

84296769

HOUSING

1шт.

11

1997880C1

SPRING,70.15mm ID x 155mm OD x 3.5mm Thk

4шт.

12

87577303

SLEEVE

1шт.

13

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

14

47504331

PLATE

1шт.

15

87452185

HUB

1шт.

16

385236A2

SEALING RING

1шт.

17

385237A2

SEALING RING,3.48mm Thk x 156.59mm ID, 70 Duro

1шт.

18

87591920

O-RING,0.139" Thk x 6.48" ID, -260, Cl 7, 75 Duro

1шт.

19

87591919

O-RING,0.139" Thk x 5.984" ID, -258, Cl 7, 75 Duro

1шт.

20

101-11250

SNAP RING,#250, 2.356, Ext

2шт.

21

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

4шт.

22

868-20050

12 PT SCREW,M20 x 50mm, Cl 12.9

4шт.

23

87567817

SEAL,28mm ID x 40mm OD x 7mm Thk

1шт.

24

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

25

9832308

BLEEDER

1шт.

26

87520606

PLUG

2шт.

27

139311A1

RIVET

2шт.

28

87495306

PIN,5mm OD x 10mm L

2шт.

Выбрано товаров: 28
