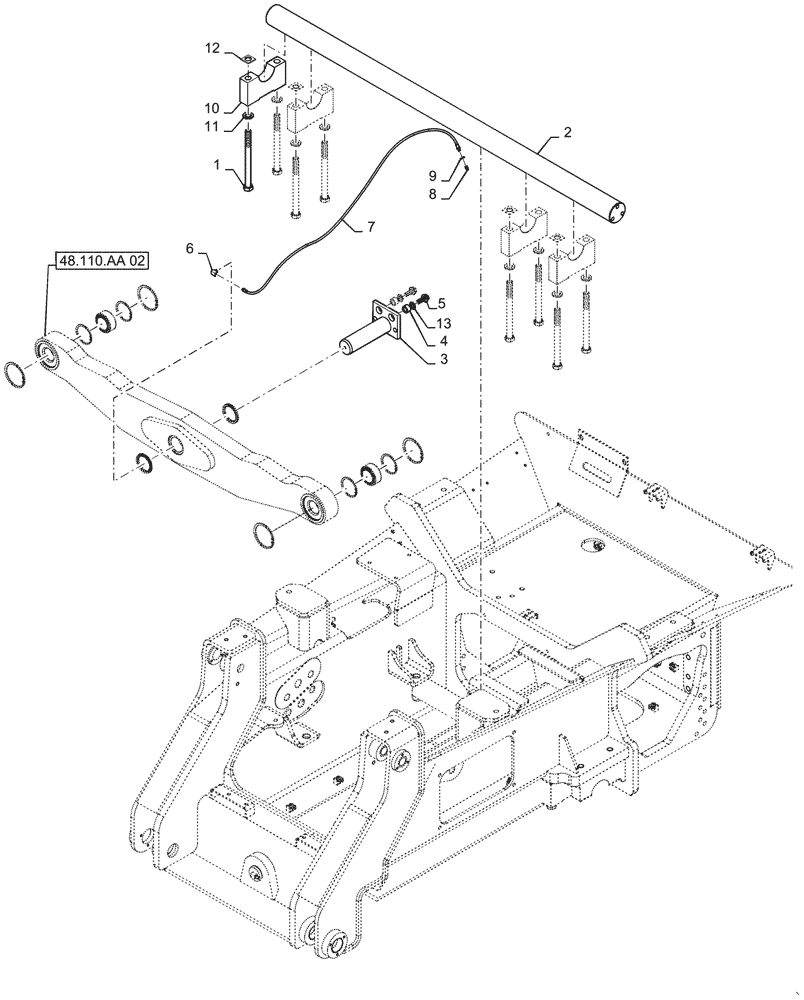

Запчасти Case 1150M WT/LGP (48.110.AA[01]) - SUSPENSION WIDE TRACK (48) - TRACKS & TRACK SUSPENSION

1

87316948

BOLT,Hex, M24 x 290mm, Cl 10.9

8шт.

2

84558552

SHAFT

Pivot, 80 Gauge

1шт.

3

84301353

SPECIAL PIN

Center

1шт.

4

87652972

BUSHING,20.6mm ID x 31.7mm OD 20.6mm H

Lift Link

2шт.

5

87563127

BOLT,Hex, M20 x 50mm, Cl 10.9

Flange, M16 x 40 Full, 10.9

2шт.

6

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

7

84588575

HOSE ASSY.,4mm ID x 1430mm L, SAE 100R7

Hydraulic, Grease

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Fitting

1шт.

9

76085536

NUT,1/8-27 NPSM

1/8-27 Npsm, Bank Lube Hose

1шт.

10

47564120

CLAMP

Pivot Shaft, Lower

4шт.

11

87016610

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

8шт.

12

47558724

KIT

Kit, Pivot Shaft

1шт.

Includes (1) of Each of the Following: 47558743, 47558742, 47558738, 47558736, 47558734, 47558732

1шт.

12

47558743

SPACER,9mm Thk

1шт.

12

47558742

SPACER,8mm Thk

1шт.

12

47558738

SPACER,6mm Thk

1шт.

12

47558736

SPACER,5mm Thk

1шт.

12

47558734

SPACER,4mm Thk

1шт.

12

47558732

SPACER,3mm Thk

1шт.

13

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.
