Запчасти Case 1150M WT (90.124.020) - VAR - 784111 - SEAT PEDESTAL & MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

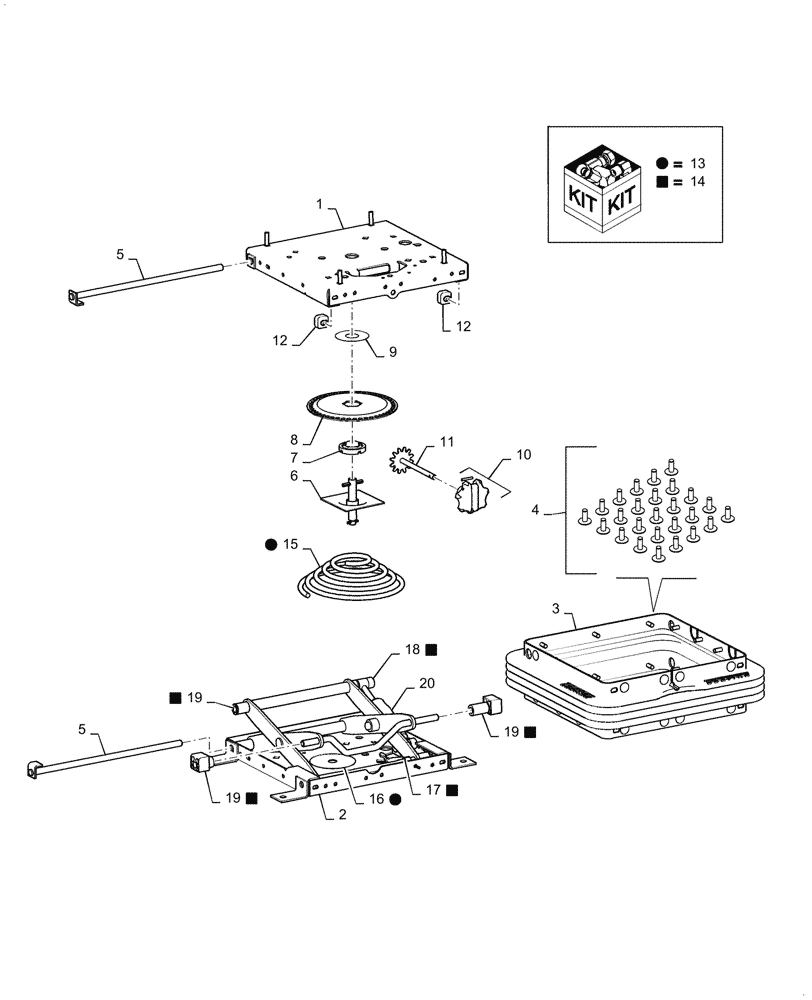

Схема запчастей Case 1150M WT - (90.124.020) - VAR - 784111 - SEAT PEDESTAL & MECHANICAL SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
13
1
19
15
13
13
6
12
14
14
19
9
13
20
12
2
16
8
5
19
4
7
14
14
18
14
3
11
14
10
14
17

Артикул

Название

Примечание

Количество

1

47425483

HOUSING

Upper

1шт.

2

47357012

HOUSING

Lower

1шт.

3

84188219

KIT

Boot Assembly

1шт.

4

47357798

RETAINER

Kit, For Boot Assembly

1шт.

5

112884A1

SHAFT,368mm L

Bearing Inclded

2шт.

(1) Shaft for Upper, (1) Shaft for Lower

1шт.

6

84586971

GEAR SHAFT

Assembly, Incl Pins, Plate and Spring Washer

1шт.

7

84586972

HUB

Seat Adjustment

1шт.

8

84586970

GEAR,188mm OD

Seat Adjustment

1шт.

9

84586966

WASHER,27.5mm ID x 70mm OD x 05mm Thk

Seat Adjustment

1шт.

10

123969A1

SEAT ACCESSORY

Knob Assembly, Retaining Pin, and Shaft

1шт.

11

84586969

GEAR

Shaft and Drive Gear

1шт.

12

276467

BUMPER

Rubber

2шт.

13

130676A1

KIT

Spring, Incl 15, 16

1шт.

14

1977725C1

SLIDER

Kit, Incl 17 - 19

1шт.

15

NSS

NOT SOLD SEPARAT

Spring, Incl in 13

1шт.

16

NSS

NOT SOLD SEPARAT

Spring Pad, Incl in 13

1шт.

17

NSS

NOT SOLD SEPARAT

Ride Indicator, Incl in 14

1шт.

18

NSS

NOT SOLD SEPARAT

Tube Bearings, Incl in 14

4шт.

19

NSS

NOT SOLD SEPARAT

Block Slider, Incl in 14

2шт.

20

389276A1

KIT

Shock Service Kit

1шт.

Выбрано товаров: 21
