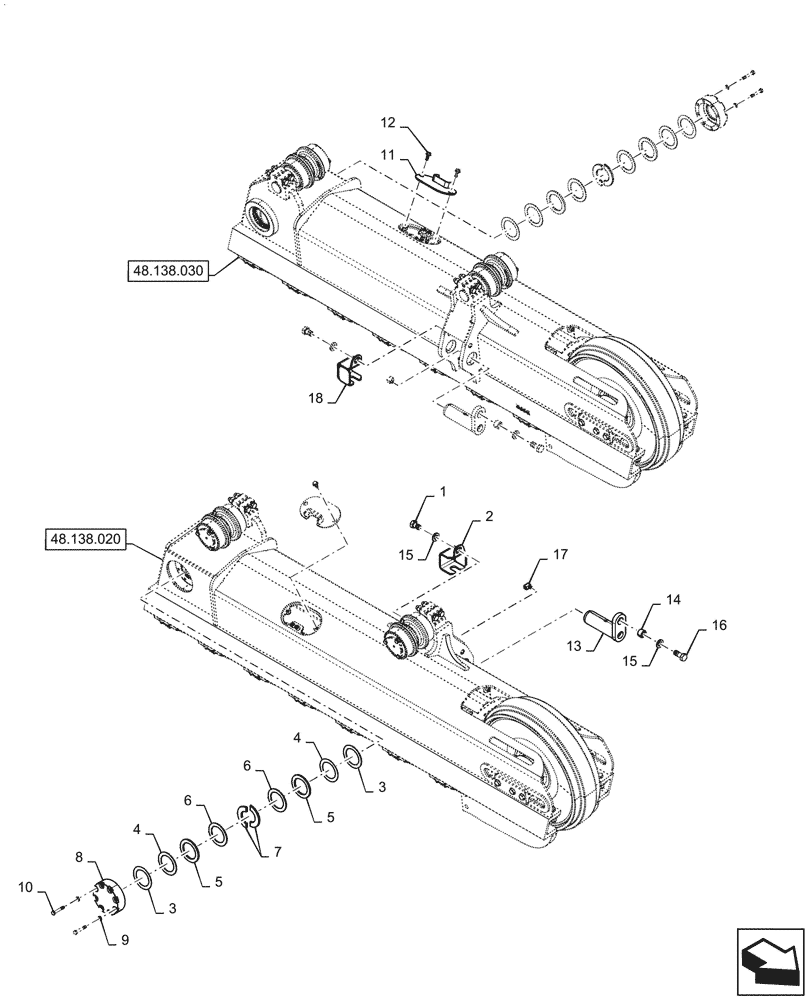

Запчасти Case 1150M WT (48.138.010) - UNDERCARRIAGE (48) - TRACKS & TRACK SUSPENSION

1

47919382

LOCK BOLT,M20 X 30mm Full, 10.9 ZND W/ Coating

2шт.

2

47869493

PLATE

2шт.

3

47800447

SHIM,79mm ID x 110mm OD x 1mm Thk

4шт.

4

47800494

SHIM,79mm ID x 110mm OD x 2mm Thk

4шт.

5

47798376

WASHER

4шт.

6

47803824

SHIM

4шт.

7

47798374

RETAINER

4шт.

8

47798373

PLATE

2шт.

9

13550421

WASHER,10.2mm ID x 20mm OD x 2mm Thk

16шт.

10

47804294

LOCK BOLT,M10 x 60 Full 10.9, ZND

16шт.

11

47889194

PLATE

2шт.

12

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

13

47918607

PIN

2шт.

14

87652972

BUSHING,20.6mm ID x 31.7mm OD 20.6mm H

2шт.

15

87713134

SPECIAL WASHER

4шт.

16

47919383

LOCK BOLT,M20 x 45mm, Full 10.9 ZND W/ Coating

2шт.

17

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

18

47869491

PLATE

1шт.

19

47869493

PLATE

1шт.
