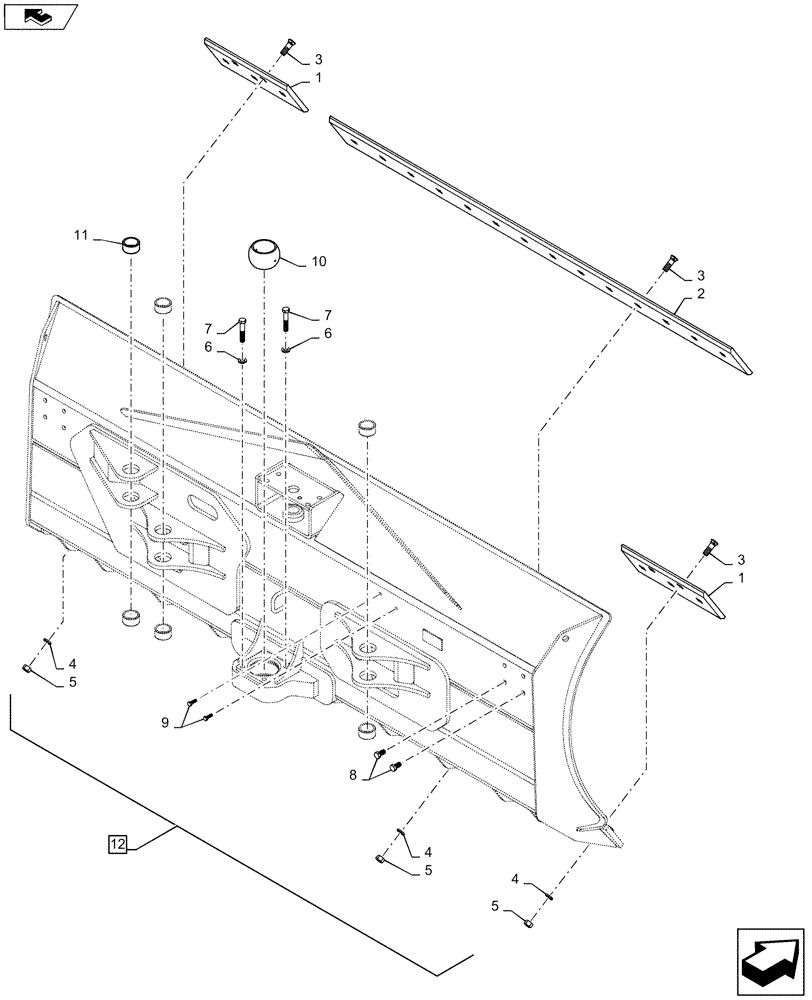

Запчасти Case 1150M LT (86.110.010) - DOZER BLADE, LT, 120 INCH (86) - DOZER

1

R42490

END

Standard

2шт.

2

327539A1

EDGE

End Cutting, Center

1шт.

3

R56474

PLOW BOLT

Dome Hd, 3/4-10 X 2.5, GR 8

24шт.

4

92-11075

LOCK WASHER,3/4"

Lock, Regular 3/4 0.759 Cast

24шт.

5

29-1012

NUT,3/4"-10, G8

24шт.

6

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16 X 17.75 X 31.5 X 4.2 Hts Boron

4шт.

7

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

4шт.

8

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

8шт.

9

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

10

87314613

BUSHING

Roller, 3.25 Diameter

1шт.

11

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

6шт.

12

47362994

DOZER BLADE

Incl 1 - 11

1шт.
