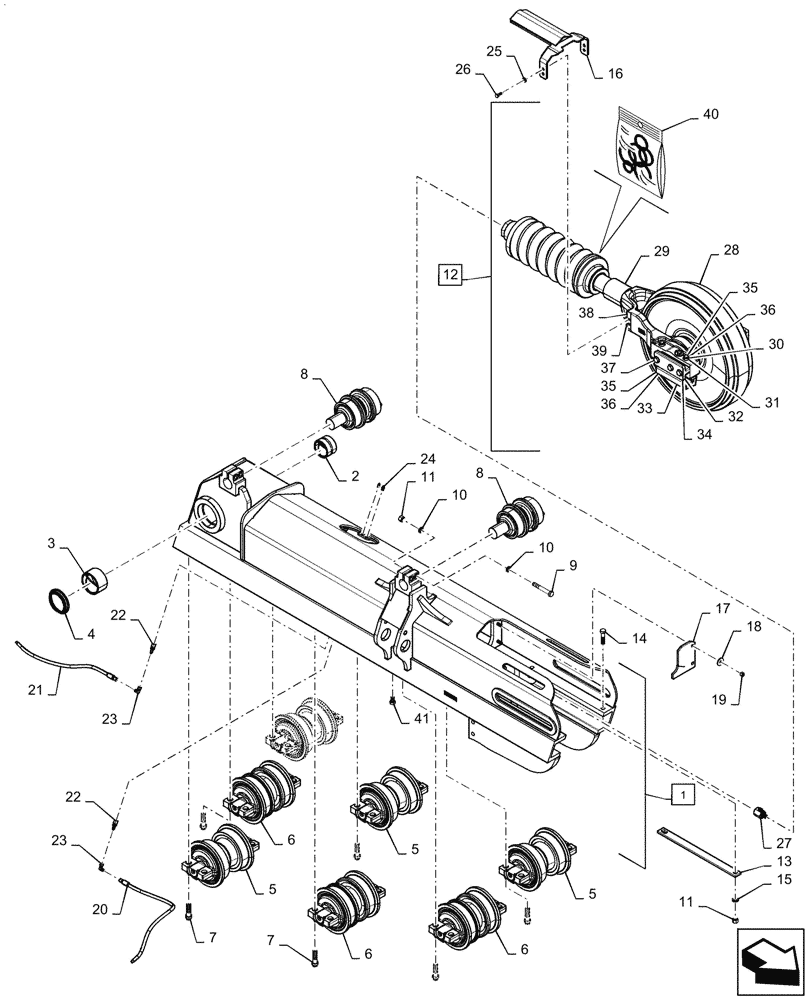

Запчасти Case 1150M LT (48.138.030) - LH, UNDERCARRIAGE (48) - TRACKS & TRACK SUSPENSION

1

47919911

FRAME

Incl 41

1шт.

2

47836813

BRONZE BUSHING,75.2mm ID x 89.1mm OD x 60.2mm L

1шт.

3

47887127

BUSHING

1шт.

4

47930329

SEAL

1шт.

5

47726079

TRACK ROLLER

4шт.

6

47726080

TRACK ROLLER

3шт.

7

47950137

SCREW,M20 x 65mm, 10.9 ZND

28шт.

8

47877150

ROLLER

2шт.

9

84036080

BOLT,Hex, M16 x 110mm, Cl 10.9

4шт.

10

87563152

WASHER,17mm ID x 26.5mm OD x 4mm Thk

8шт.

11

251843

LOCK NUT,M16 x 2, Cl 10

8шт.

12

47877152

IDLER WHEEL

Incl 28 - 39

1шт.

13

87456085

BAR

2шт.

14

11119231

BOLT,M16 x 75mm, Cl 10.9

4шт.

15

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

16

47887109

BRACKET

4шт.

17

47800074

COVER

1шт.

18

87613255

WASHER,0.47" ID x 1.5" OD x 0.13" Thk

4шт.

19

412141

NUT,M10 x 1.5, Cl 8

4шт.

20

47919010

HOSE

1шт.

21

47919012

HOSE

1шт.

22

47550022

ELBOW

2шт.

23

86512933

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

25

86588501

WASHER,11mm ID x 20mm OD x 2.5mm Thk

4шт.

26

47661424

BOLT,M10 x 25mm 10.9 ZND

4шт.

27

47887117

VALVE

Grease

1шт.

28

47887179

IDLER WHEEL

1шт.

29

47887186

SPRING

1шт.

30

47887187

WASHER

4шт.

31

47887188

SPRING

4шт.

32

47887191

WEAR PLATE

2шт.

33

47887192

WEAR PLATE

2шт.

34

47887193

BRACKET

2шт.

35

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

12шт.

36

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

24шт.

37

11119434

SCREW

6шт.

38

11119034

SCREW,M16 x 55mm

4шт.

39

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

40

48049705

SEAL KIT

1шт.

41

374888

BOLT,Hex, M16 x 2 x 25mm, Cl 8.8, Full Thd

12шт.
