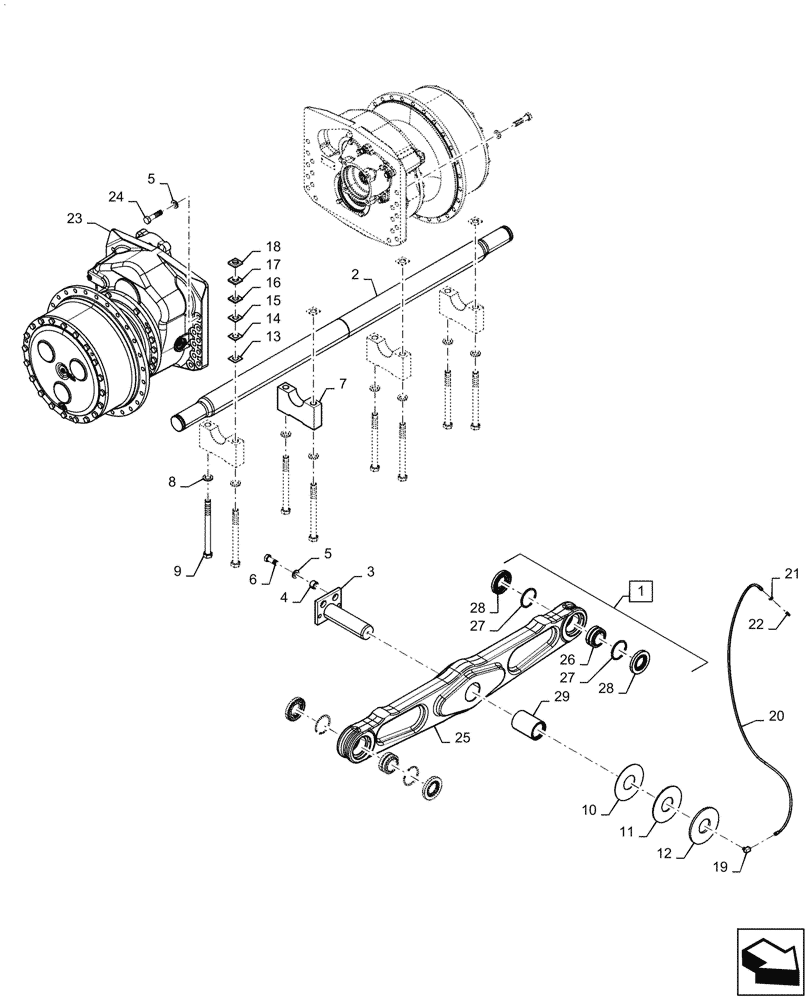

Запчасти Case 1150M LT (48.110.010) - SUSPENSION , NARROW, GAUGE LT (48) - TRACKS & TRACK SUSPENSION

1

47921475

BEAM

Equalizer, 72 Guage, LT Models, Incl 25 - 29

1шт.

2

47854078

SHAFT

Pivot

1шт.

3

47721224

PIN

Center

1шт.

4

87652972

BUSHING,20.6mm ID x 31.7mm OD 20.6mm H

2шт.

5

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

38шт.

6

87563127

BOLT,Hex, M20 x 50mm, Cl 10.9

2шт.

7

47564120

CLAMP

Piviot Shaft

4шт.

8

87016610

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

8шт.

9

47568002

BOLT,Hex, M24 x 290mm, Cl 10.9

8шт.

10

47798377

SPACER,70.4mm ID x 178mm OD x 3mm Thk

1шт.

11

47798378

SPACER,70.4mm ID x 178mm OD x 5mm Thk

1шт.

12

47798379

SPACER,70.4mm ID x 178mm OD x 10mm Thk

1шт.

13

47558732

SPACER,3mm Thk

1шт.

14

47558734

SPACER,4mm Thk

1шт.

15

47558736

SPACER,5mm Thk

1шт.

16

47558738

SPACER,6mm Thk

1шт.

17

47558742

SPACER,8mm Thk

1шт.

18

47558743

SPACER,9mm Thk

1шт.

19

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

1шт.

20

47948448

HYDRAULIC HOSE,1430mm L

1шт.

21

76085536

NUT,1/8-27 NPSM

1шт.

22

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

23

47863726

FINAL DRIVE

Assy, Narrow Gauge

2шт.

24

84388492

PREV TORQUE BOLT,Hex, M20 x 80mm, Cl 10.9

36шт.

25

NSS

NOT SOLD SEPARAT

Equalizer Beam, Incl in 1

1шт.

26

76041311

SPHERICAL BEARING,60mm ID x 90mm OD x 44mm W

2шт.

27

11062476

SNAP RING,M90, Int

4шт.

28

47699773

SEALING RING,57mm ID x 111mm OD x 14mm H

4шт.

29

47705693

BUSHING,70mm ID x 90mm OD x 125mm L

1шт.
