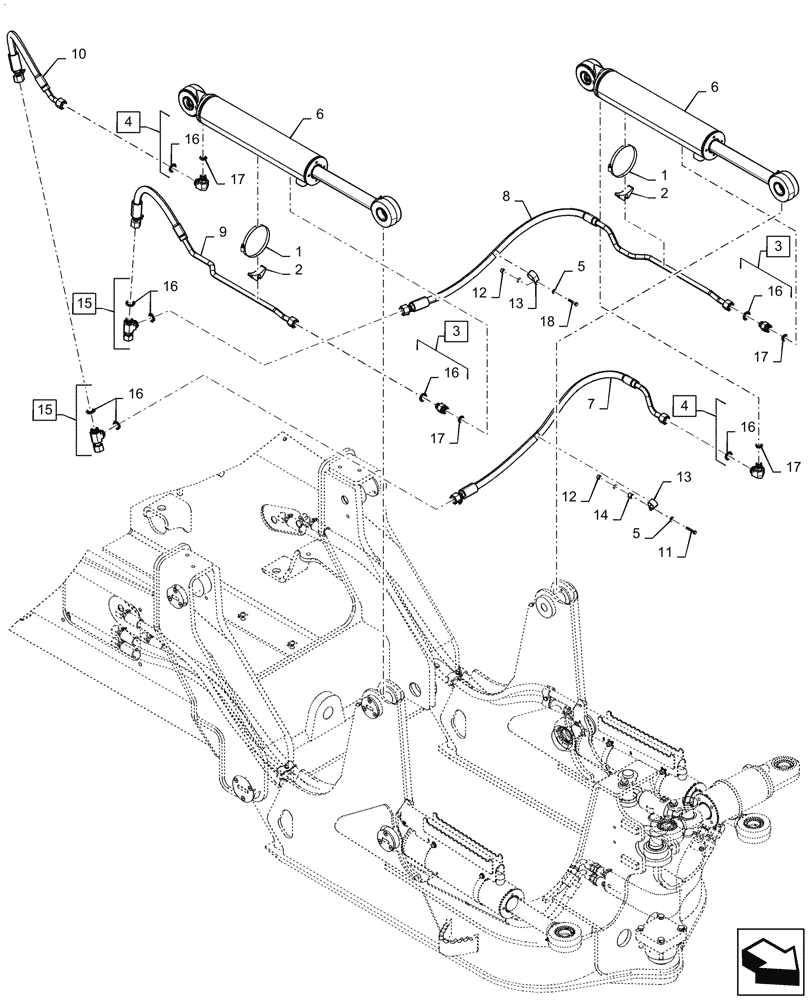

Запчасти Case 1150M LT (35.741.010) - LIFT CYLINDER, HYDRAULIC LINES (35) - HYDRAULIC SYSTEMS

1

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

4шт.

2

D142787

SPACER

4шт.

3

47743801

HYD CONNECTOR

Incl 16, 17

2шт.

4

47739433

90 ELBOW

Incl 16, 17

2шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

6

84389147

LIFT CYLINDER,Double Acting, 50.8mm Rod, 488mm Stroke

2шт.

7

47455651

HYD TUBE

1шт.

8

47455649

HYD TUBE

1шт.

9

47460579

HYDRAULIC HOSE

1шт.

10

47458147

HYD TUBE

1шт.

11

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

12

412250

NUT,M8 x 1.25, Cl 8

2шт.

13

87312719

COLLAR,31.7mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

14

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

1шт.

15

87016915

TEE,1-3/16"-12 ORFS x 13.9mm ORB

Incl (2) Ref 76

2шт.

16

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

17

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

18

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.
