Запчасти Case 1150M LT (35.300.010) - HYDRAULIC FLUID RESERVOIR (35) - HYDRAULIC SYSTEMS

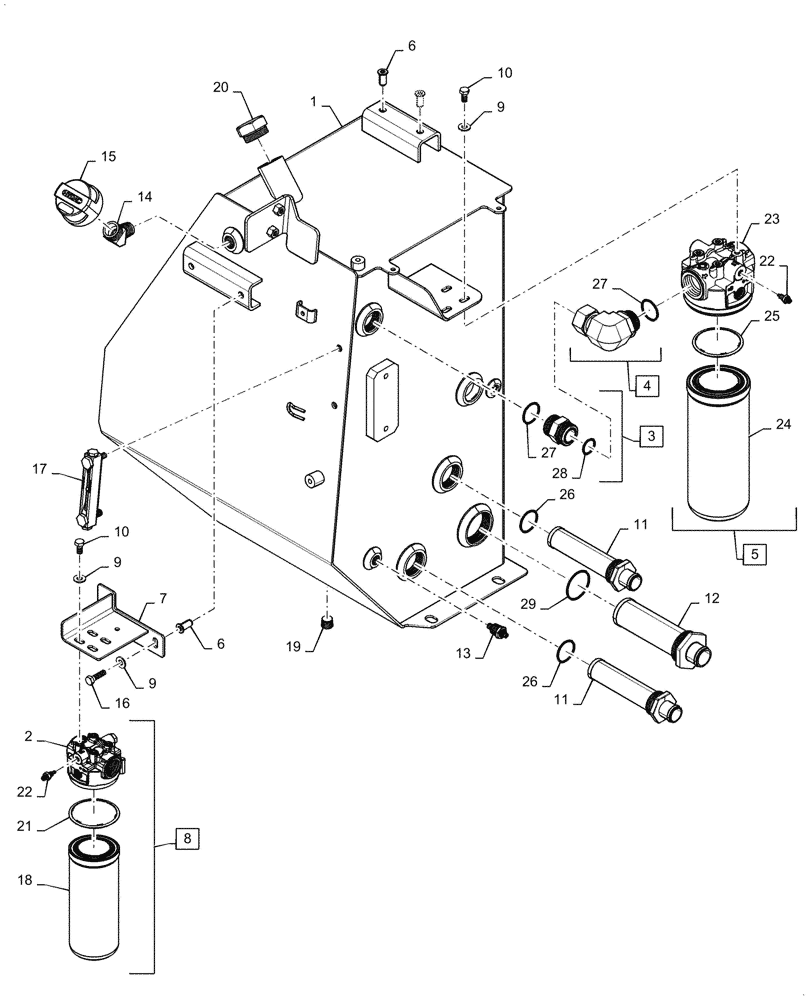

Схема запчастей Case 1150M LT - (35.300.010) - HYDRAULIC FLUID RESERVOIR (35) - HYDRAULIC SYSTEMS
27
9
7
12
27
29
23
16
6
21
11
1
26
5
10
22
26
6
15
9
24
11
25
13
28
2
20
10
22
8
9
14
17
4
19
18
3

Артикул

Название

Примечание

Количество

1

47773196

RESERVOIR, HYDRAULIC

CE Gray

1шт.

2

NSS

NOT SOLD SEPARAT

Filter Head, Incl in 8

1шт.

3

9840325

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

Incl 27, 28

1шт.

4

84329840

90 ELBOW

Incl, 27

1шт.

5

47617483

FILTER

Implement, Incl

1шт.

6

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

4шт.

7

84412239

BRACKET

Filter

1шт.

8

47833558

HYDRAULIC OIL FILTER

Charge, Incl 2, 18, 21, 22

1шт.

9

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10шт.

10

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

11

84341116

FILTER STRAINER

Hydraulic Tank

2шт.

12

84329266

FILTER STRAINER,1.5"

1шт.

13

84300765

TEMPERATURE SENDER,1/2" - 14 NPTF

1шт.

14

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

1шт.

15

84339375

BREATHER

1шт.

16

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

17

226456A1

LEVEL GAUGE

Hydraulic Content

1шт.

18

47833564

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L, M87 x 2.5-6H, <4 Microns

1шт.

19

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

20

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

1шт.

21

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

1шт.

22

8604802

PRESSURE SWITCH

Oil Filter

2шт.

23

NSS

NOT SOLD SEPARAT

Filter Head, Incl in 5

1шт.

24

84196445

HYDRAULIC OIL FILTER

Charge

1шт.

25

84362145

RING

Wear, Charge Filter

1шт.

26

84375830

O-RING,3mm Thk x 43.69mm ID, 70 Duro

2шт.

27

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

2шт.

28

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

29

84375831

OIL SEAL,3mm Thk x 59mm ID, 70 Duro

1шт.

Выбрано товаров: 29
