(48.100.AD[03]) - TRACK CHAIN 43 LINK CELT

Запчасти Case 1150M LT (48.100.AD[03]) - TRACK CHAIN 43 LINK CELT (48) - TRACKS & TRACK SUSPENSION

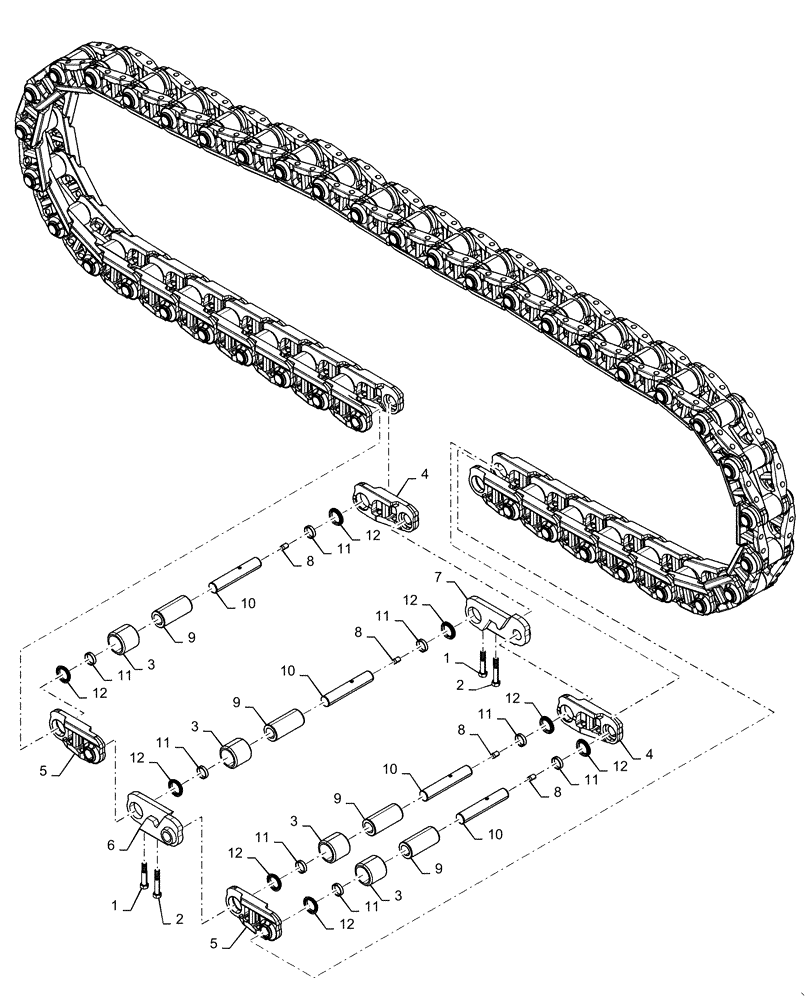

Схема запчастей Case 1150M LT - (48.100.AD[03]) - TRACK CHAIN 43 LINK CELT (48) - TRACKS & TRACK SUSPENSION
11
10
6
8
12
1
12
11
11
3
8
9
5
8
9
11
10
11
12
11
4
5
11
3
3
4
7
2
12
3
1
11
10
10
9
12
8
12
9
12
2
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

135778A1

BOLT,Spher Hex, 5/8" - 18 x 82.50mm

Master Link

2шт.

2

135779A1

BOLT,Spher Hex, 5/8" - 18 x 92mm

Master Link

2шт.

3

189275A1

BUSHING,59.38mm ID x 79.38mm OD x 74mm L

Rotating

43шт.

4

365492A1

LINK

Track Right Hand

42шт.

5

365493A1

LINK

Track Left Hand

42шт.

6

365526A1

LINK ASSY.

Master Left Hand

1шт.

7

365527A1

LINK ASSY.

Master Right Hand

1шт.

8

R50441

PLUG

CLT

43шт.

9

R51191

BUSHING,36.9mm ID x 58.77mm OD x 128.8mm L

CELT

43шт.

10

R51192

PIN,36.58mm OD x 206.5mm L

CLT

43шт.

11

R51193

SPACER

86шт.

12

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

Track Chain

86шт.

13

47749266

TRACK CHAIN

CELT, 43 Links, CE Gray

1шт.
