Запчасти Case 1150M LT (48.100.AD[01]) - TRACK ASSEMBLY CLT (48) - TRACKS & TRACK SUSPENSION

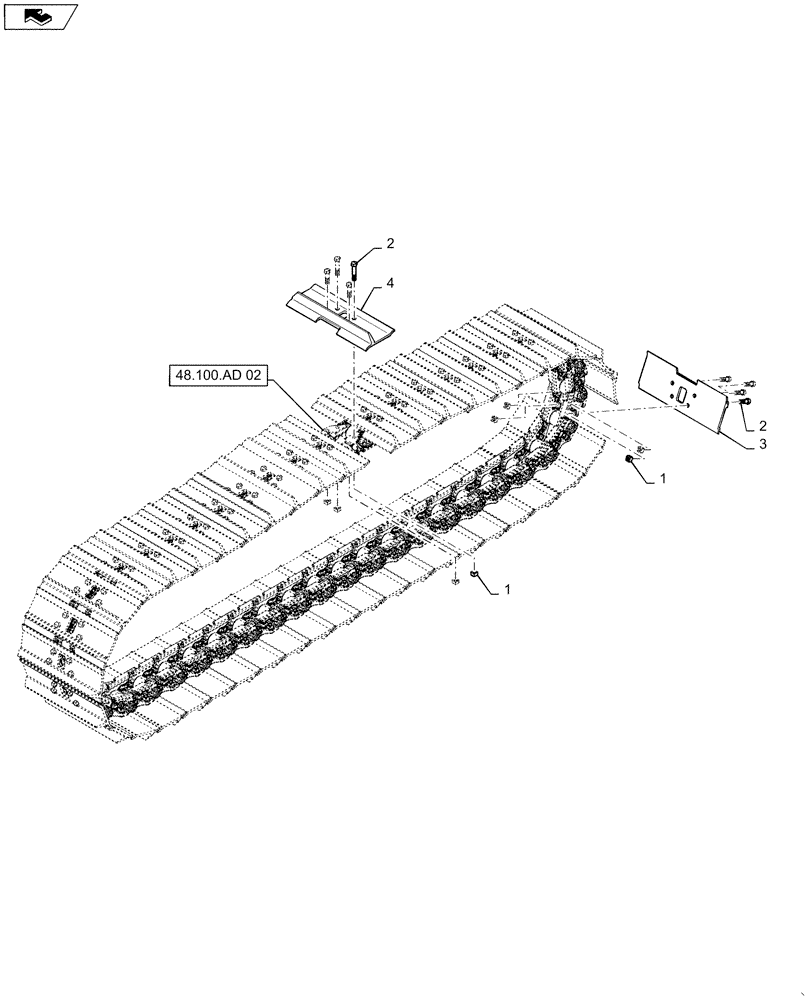

Схема запчастей Case 1150M LT - (48.100.AD[01]) - TRACK ASSEMBLY CLT (48) - TRACKS & TRACK SUSPENSION
48.100.ad 02
4
2
1
2
1
home
3

Артикул

Название

Примечание

Количество

1

R25688

SQUARE NUT

168шт.

2

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

168шт.

3

47655473

TRACK SHOE

Master 26" One Bar Closed

1шт.

3

47655474

TRACK SHOE

Master 30" One Bar Closed

1шт.

3

47655471

TRACK SHOE

Master 20" One Bar Closed

1шт.

3

47655472

SHOE

Master 22" One Bar Closed

1шт.

4

47655468

TRACK SHOE

Track 26" One Bar Closed

42шт.

4

47655469

TRACK SHOE

Track 30" One Bar Closed

42шт.

4

47655466

TRACK SHOE

Track 20" One Bar Closed

42шт.

4

47655467

SHOE

Track 22" One Bar Closed

42шт.

Выбрано товаров: 10
