Запчасти Case 1150M LT (39.100.AB[01]) - FRAME C, AND PITCH AND LINK (39) - FRAMES AND BALLASTING

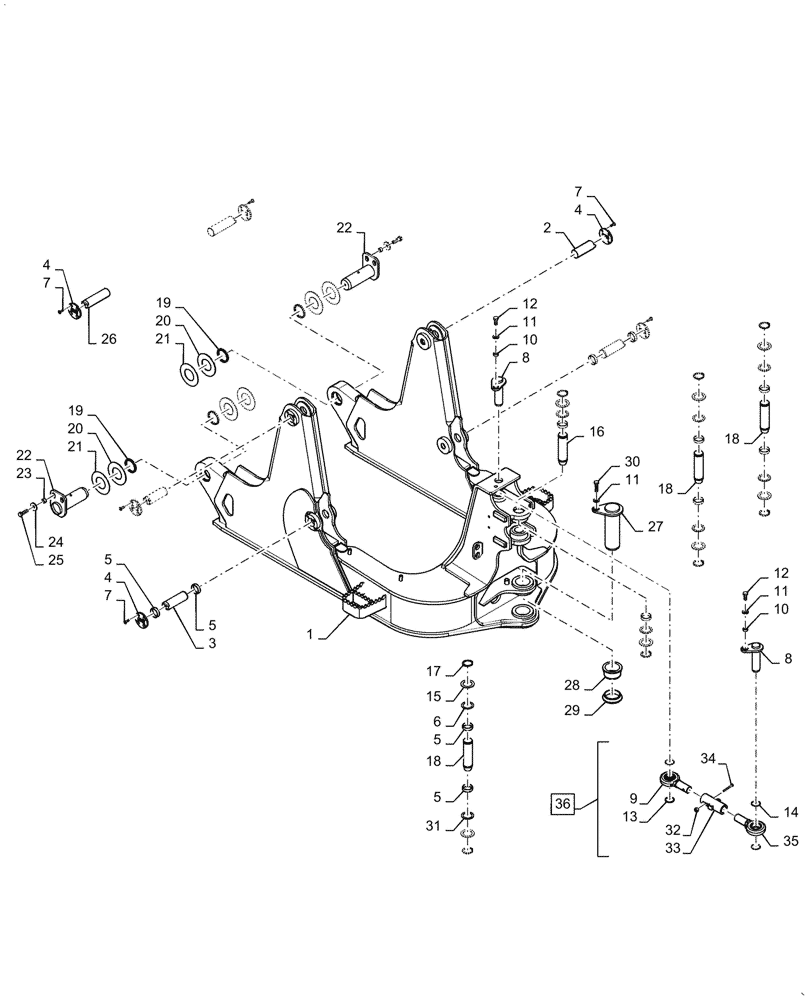

Схема запчастей Case 1150M LT - (39.100.AB[01]) - FRAME C, AND PITCH AND LINK (39) - FRAMES AND BALLASTING
11
10
11
5
19
4
30
12
20
36
25
29
8
21
28
21
15
14
34
11
3
26
17
33
27
22
18
7
18
6
5
31
9
7
10
8
5
18
24
2
35
7
4
4
20
13
16
19
1
23
32
12
5
22

Артикул

Название

Примечание

Количество

1

47547253

FRAME

C Inside

1шт.

2

84537899

PIN,50mm OD x 143.5mm L

Lift Cylinder Mounting

2шт.

3

84537898

PIN,50.75mm OD x 156mm L

2шт.

4

84537897

PIVOT PLATE

Pin

6шт.

5

84385169

BUSHING,52.32mm ID x 57.15mm OD x 15.75mm L

Spacer

12шт.

6

87690482

WASHER,2.03" ID x 2.75" OD x 0.07" Thk

4шт.

7

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

24шт.

8

84380507

PIN,44.4mm OD x 175mm L

With Cylinder Mount

2шт.

9

84550963

EYE,1-3/4" - 12

Left Hand

1шт.

10

84380519

SPACER,16.5mm ID x 25.5mm OD x 12.75mm L

2шт.

11

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

3шт.

12

84246776

PREV TORQUE BOLT,Hex, M16 x 35mm, Cl 10.9

2шт.

13

84541743

SHIM,45.5mm ID x 53.5mm OD x 3mm Thk

Pitch Link

2шт.

14

84385270

SHIM,45.5mm ID x 53.5mm OD x 1mm Thk

Pitch Link

6шт.

15

495-81282

WASHER,2 1/16" x 3" x .109"

9шт.

16

84538461

PIN,50.75mm OD x 256.8mm L

DIA Tilt Cylinder Rod

1шт.

17

103-16200

SNAP RING,#200, Ext

8шт.

18

87546004

PIN,50.77mm OD x 200.8mm L

DIA Angle and Tilt Cylinder Rod

3шт.

19

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

4шт.

20

87477364

SHIM

4шт.

21

134167A1

SHIM,72mm ID x 140mm OD x 2.05mm Thk

4шт.

22

47539780

PIN

C - Frame

2шт.

23

419041A1

SPACER

Mounting

4шт.

24

419223A1

WASHER

Hardened

4шт.

25

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

26

84537900

PIN,50mm OD x 177.8mm L

Lift Cylinder Mounting

2шт.

27

47361746

PIN,82.49mm OD x 271.6mm L

Blade

1шт.

28

84538603

SPACER,82.8mm ID x 110mm OD x 51.05mm L

C - Frame

1шт.

29

84538604

SPACER,82.8mm ID x 110mm OD x 23.2mm L

C - Frame

1шт.

30

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

1шт.

31

87690483

WASHER,2.03" ID x 2.75" OD x 0.12" Thk

4шт.

32

412141

NUT,M10 x 1.5, Cl 8

1шт.

33

84550961

TUBE

1шт.

34

43252

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

1шт.

35

87311755

BEARING ASSY,44.45 mm ID x 63.88 mm OD x 38.8239 mm

Right Hand

1шт.

36

84550959

LINK CONROD

Pitch, Incl 9, 13, 14, 32 - 35

1шт.

Выбрано товаров: 36
