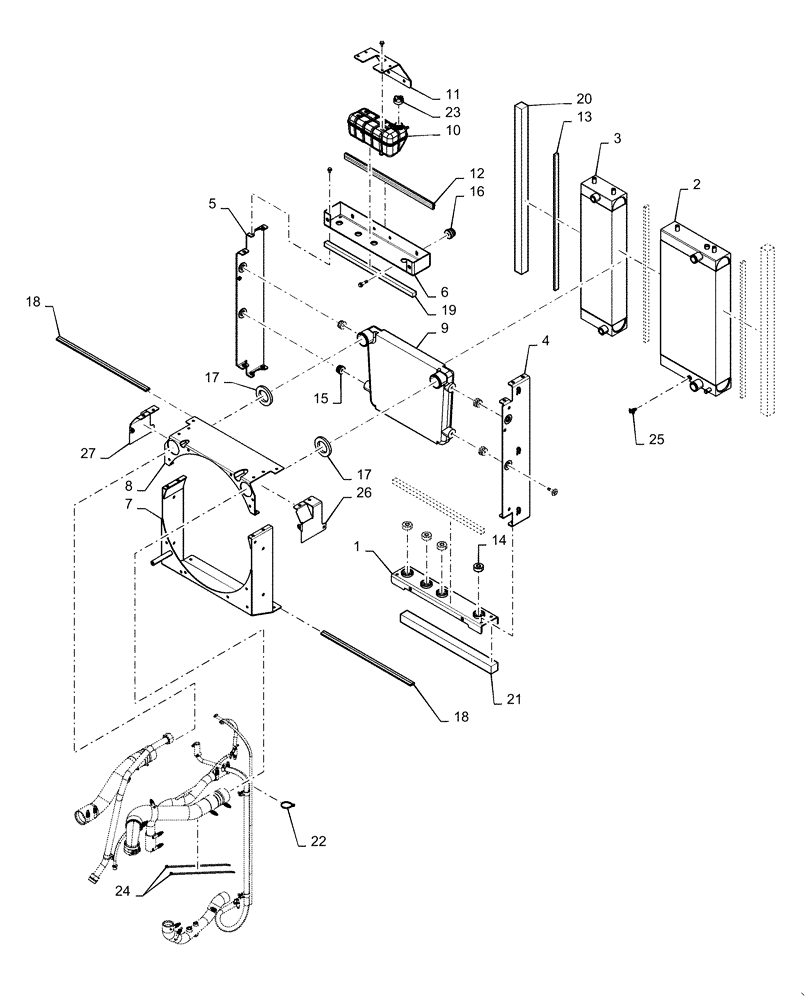

Запчасти Case 1150M LT (10.400.BF[03]) - RADIATOR FRAME AND SEALS (10) - ENGINE

1

47591888

FRAME

Radiator Bottom Painted

1шт.

2

47576423

RADIATOR

1шт.

3

47576422

COOLER

Oil

1шт.

4

47593963

FRAME

Right Hand Painted

1шт.

5

47591898

FRAME

Left Hand Painted

1шт.

6

47591878

FRAME

Top Painted

1шт.

7

47487138

SHROUD

Fan Lower Painted

1шт.

8

47578889

SHROUD

Fan Upper Painted

1шт.

9

84588264

COOLER ASSY.

Charge Air

1шт.

10

82019588

RESERVOIR

Radiator Degas Bottle

1шт.

11

84564876

BRACKET

Radiator Top Channel

1шт.

12

84556841

RUBBER SEAL,680mm L

Bulb Seal

1шт.

13

84481481

SEALING STRIP,900mm L

Foam

3шт.

14

84570346

ISOLATOR,20mm ID x 53mm OD x 21mm L

Vibration

8шт.

15

84481474

ISOLATOR

Vibration

4шт.

16

84481473

ISOLATOR

Vibration

2шт.

17

84481483

SEAL

Foam

2шт.

18

84556842

SEAL,690mm L

Bulb

2шт.

19

84556843

SEALING STRIP,680mm L

Foam

2шт.

20

84556839

SEALING STRIP,1100mm L

Foam

2шт.

21

47525524

SEAL

Foam

1шт.

22

L11541

CABLE TIE,203.2mm L, Nylon

Nylon

3шт.

23

82022744

CAP,Female, Vented, Non-Locking

1шт.

24

87050114

STRAP

Cable Tie

2шт.

25

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Fuel Tank

1шт.

26

47538765

SHROUD

Right Hand Side Painted

1шт.

27

47538755

SHROUD

Left Hand Side Painted

1шт.

28

48054335

Degas Bottle

COVER

1шт.

29

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.
