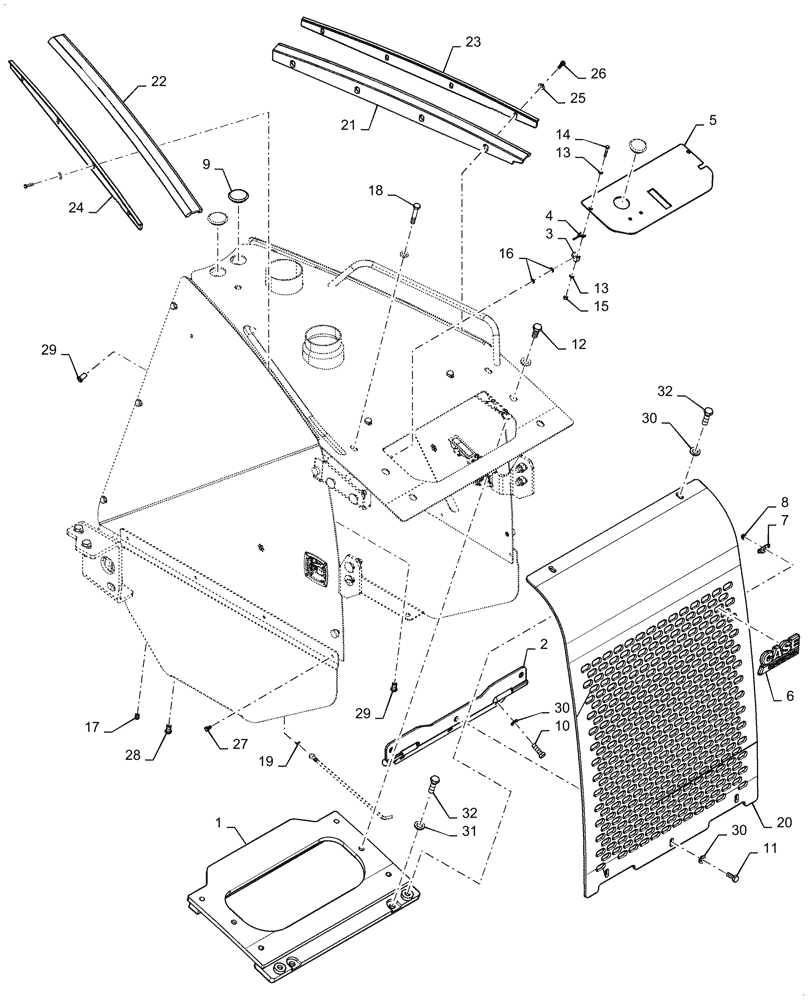

Запчасти Case 1150M LT (90.100.AB[02]) - HOOD, TOP COVER, FRONT GRILL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84589150

SUPPORT

1шт.

2

84495476

HINGE

1шт.

3

87440322

HINGE

2шт.

4

84497831

STOP

2шт.

5

47545151

ACCESS COVER

BSN - Door, CE Gray , Serial Range: -NFDC11077

1шт.

5

47750209

ACCESS COVER

ASN - Door, CE Gray, Start Serial: NFDC11078

1шт.

6

84478049

EMBLEM

1шт.

7

84494357

MOUNTING PLATE

2шт.

8

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

9

14508287

PLUG

3шт.

10

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

3шт.

11

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

12

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

4шт.

13

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

14

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

2шт.

15

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.

16

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

17

87328598

INSERT,M6 x 1"

4шт.

18

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

19

F44883

CLIP,DIN 71805 - S10

2шт.

20

47611966

GRILLE

1шт.

21

47546667

SEAL

1шт.

22

47546668

SEAL

1шт.

23

47546670

CLAMP

1шт.

24

47546671

CLAMP

1шт.

25

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

26

87378776

BOLT,Hex, M8 x 30mm, Cl 8.8

8шт.

27

A161780

BUMPER

2шт.

28

14507687

PLUG,20mm ID

1шт.

29

85825181

INSERT

3шт.

30

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

30шт.

31

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

1шт.

32

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

2шт.
