Запчасти Case 1150M LT (55.302.AG[01]) - BATTERY (55) - ELECTRICAL SYSTEMS

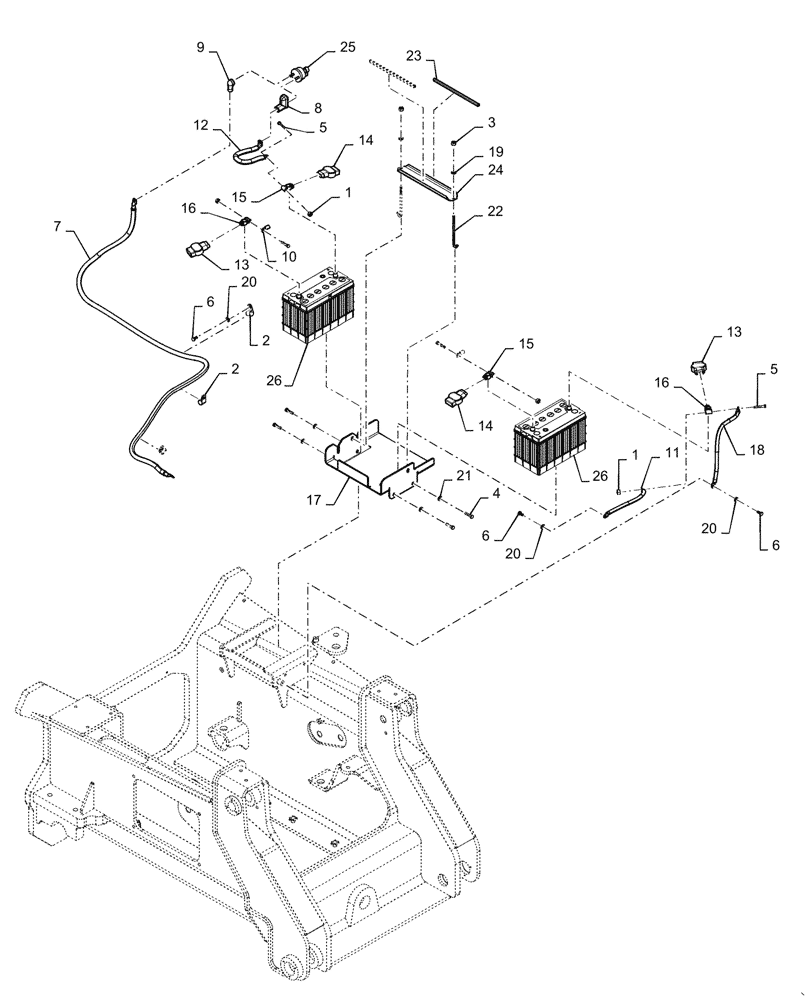

Схема запчастей Case 1150M LT - (55.302.AG[01]) - BATTERY (55) - ELECTRICAL SYSTEMS
26
13
2
7
9
14
15
20
18
14
6
16
6
6
1
17
16
3
19
10
22
4
5
2
15
1
13
25
24
26
21
12
20
5
20
8
11
23

Артикул

Название

Примечание

Количество

1

425-106

NUT,3/8"-16, Cl 5

4шт.

2

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

4шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

4

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

4шт.

5

280425

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

6

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

4шт.

7

47372611

ELECTRIC CABLE

Battery Positive

1шт.

8

47464114

BOOT

90 Degree

1шт.

9

47524103

CAP

1шт.

10

47693286

JUMPER

Dual Battery Negative

1шт.

11

47693288

CABLE

Negative Battery

1шт.

12

47693294

CABLE

Positive, Battery to Switch

1шт.

13

47693868

COVER

Battery Cable Terminal Black

2шт.

14

47693869

COVER

Battery Cable Terminal Red

2шт.

15

84360337

TERMINAL

Battery Clam Positive

2шт.

16

84360338

TERMINAL

Battery Clamp Negative

2шт.

17

84390076

BATTERY TRAY

1шт.

18

84415464

NEG BATTERY CABLE

To Ground

1шт.

19

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

20

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

7шт.

21

87713132

SPECIAL WASHER,10.7mm ID x 23mm OD x 2.2mm Thk

4шт.

22

416297A1

ROD

Battery Hold Down

2шт.

23

D40442

MOLDING

Quickedge

2шт.

24

R46490

BRACKET

Battery Hold Down

1шт.

25

R52278

SWITCH

Master Disconnect

1шт.

26

BMF31EW

WET BATTERY

Case

2шт.

Выбрано товаров: 26
