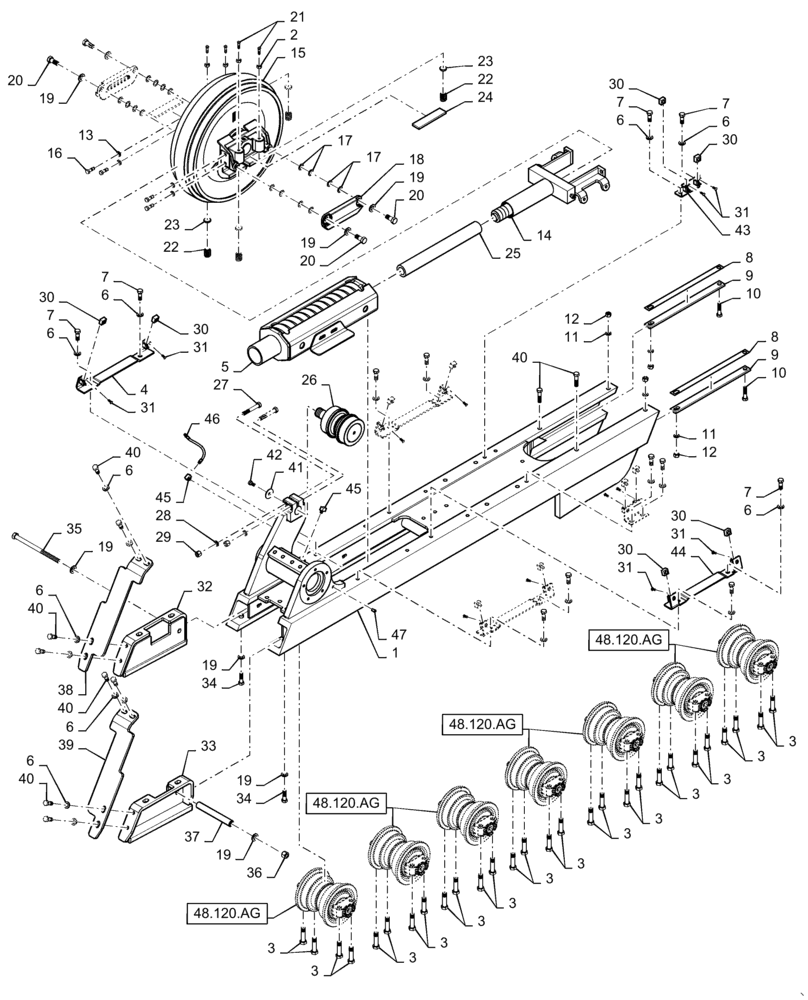

Запчасти Case 1150M LT (48.130.AX[02]) - TRACK ASSY (48) - TRACKS & TRACK SUSPENSION

1

47462147

FRAME

Right Hand Final Track

1шт.

1

47462149

FRAME

1шт.

2

9628503

NUT,3/8"-16, G5

4шт.

3

409-91248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

28шт.

4

84598658

BRACKET

Recoil Housing

2шт.

5

84597690

HOUSING

Final Recoil

1шт.

6

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

20шт.

7

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

12шт.

8

87456084

SHIM

6шт.

9

87456085

BAR

2шт.

10

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

11

492-11062

BEARING WASHER,5/8"

4шт.

12

425-1010

NUT,5/8"-11, G5

4шт.

13

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

14

87309195

YOKE

1шт.

15

84388196

IDLER WHEEL

1шт.

16

410-9824

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

4шт.

17

D35268

SHIM,1/32" Thk

20шт.

18

87649097

COVER PLATE

2шт.

19

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

10шт.

20

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

21

84193280

BOLT

4шт.

22

R33245

SPRING SEAT

Boss

4шт.

23

188866A1

SHOCK ABSORBER

Spring Idler Support

4шт.

24

R58620

LARGE PLATE

Idler Wear Bar

2шт.

25

84382990

TUBE

Track, Spacer

1шт.

26

84387912

TRACK ROLLER,150mm OD x 162mm W

Carrier

1шт.

27

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

2шт.

28

496-81004

WASHER,41/64" x 1.047" x .134", HDN

2шт.

29

232-41410

LOCK NUT,5/8"-11, GC

2шт.

30

224-28010

SQUARE NUT,Sq, 5/8"-11, G2, Hvy

12шт.

31

336371A1

PIN,4.88mm OD x 14.23mm L

12шт.

32

84383268

GUIDE

Left Hand Rear Track

1шт.

33

84383269

GUIDE

Right Hand Rear Track

1шт.

34

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

4шт.

35

280434

BOLT,Hex, 3/4" - 10 x 11 1/2", Gr 5

1шт.

36

231-41112

LOCK NUT,3/4"-10, GB

1шт.

37

R27555

SPACER

Rockguard

1шт.

38

84383855

COVER

Left Hand Sprocket Guard

1шт.

39

84383858

COVER

Right Hand Sprocket Guard

1шт.

40

86622997

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

8шт.

41

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

1шт.

42

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

43

84409423

BRACKET

Front Cover

2шт.

44

84409548

BRACKET

Recoil Cover

2шт.

45

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

46

84563169

HOSE ASSY.,6.35mm ID x 290mm L, SAE 100R7

Pivot Shaft Grease

1шт.

47

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.
