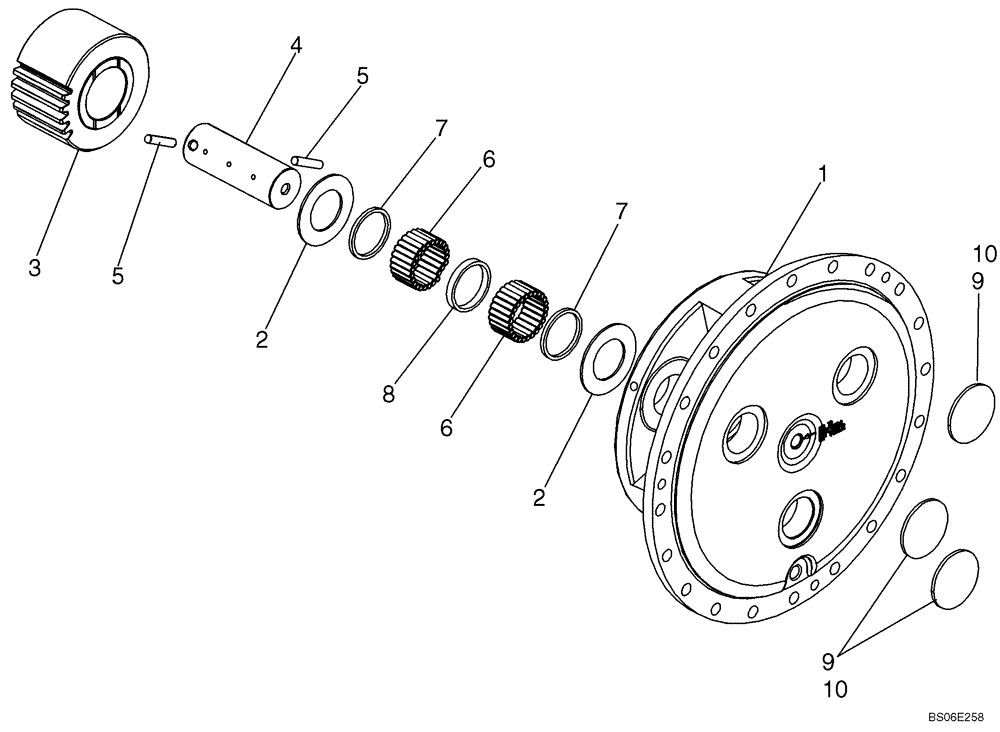

Запчасти Case 1150K (06-07) - PLANETARY, FINAL DRIVE ASSEMBLY (06) - POWER TRAIN

87452179

DRIVE ASSY.

Final Drive Assy, 70 Gage Narrow Extended Long Track (XLT); Incl. Ref 1 - 10; Also Includes Parts On Figure 06-06

2шт.

84311752R

REMAN-FINAL DRIVE

1150K SERIES 3,TIER III, Reman For New P/N 87452179

2шт.

84311752C

CORE-FINAL DRIVE

Return Number

2шт.

87452180

DRIVE ASSY.

Final Drive Assy, 78 Gage Wide Track (WT) or Low Ground Pressure (LGP); Incl. Ref 1 - 10; Also Includes Parts On Figure 06-06

2шт.

84311759R

REMAN-FINAL DRIVE

Reman for New PN 87452180

2шт.

84311759C

CORE-FINAL DRIVE

Return Number

2шт.

84311752R

REMAN-FINAL DRIVE

1150K SERIES 3,TIER III, Reman For New P/N87452180

2шт.

84311752C

CORE-FINAL DRIVE

Return Number

2шт.

NSS

NOT SOLD SEPARAT

87309913 Carrier Assembly, Planetary; No Longer Serviced as Assembly; Included With 87452179 or 87452180 Final Drive Assy; Order Component parts Separately Incl. Ref 1 - 10

1шт.

1

87309914

HOUSING

Planetary Carrier

1шт.

2

87452211

THRUST WASHER,58mm ID x 100mm OD x 3mm Thk

Planet Gear

6шт.

3

87309915

GEAR

Planet

3шт.

4

87452207

GROOVED PIN,57.62mm OD x 162mm L

Planet Gear Pin

3шт.

5

135-113

GROOVED PIN,7/16" x 2", Type A

6шт.

6

A151972

ROLLER

Roller

150шт.

7

87452209

SPACER

62.60 ID x 71.85 OD x 5.30 mm thk Spacer

6шт.

8

87452210

SPACER

62.60 ID x 71.85 OD x 10.30 mm thk Spacer

3шт.

9

41-52

PLUG,Exp, 3 1/4"

Expansion

3шт.

10

345-74

SEALANT

1 ml Loctite No. 504

1шт.
