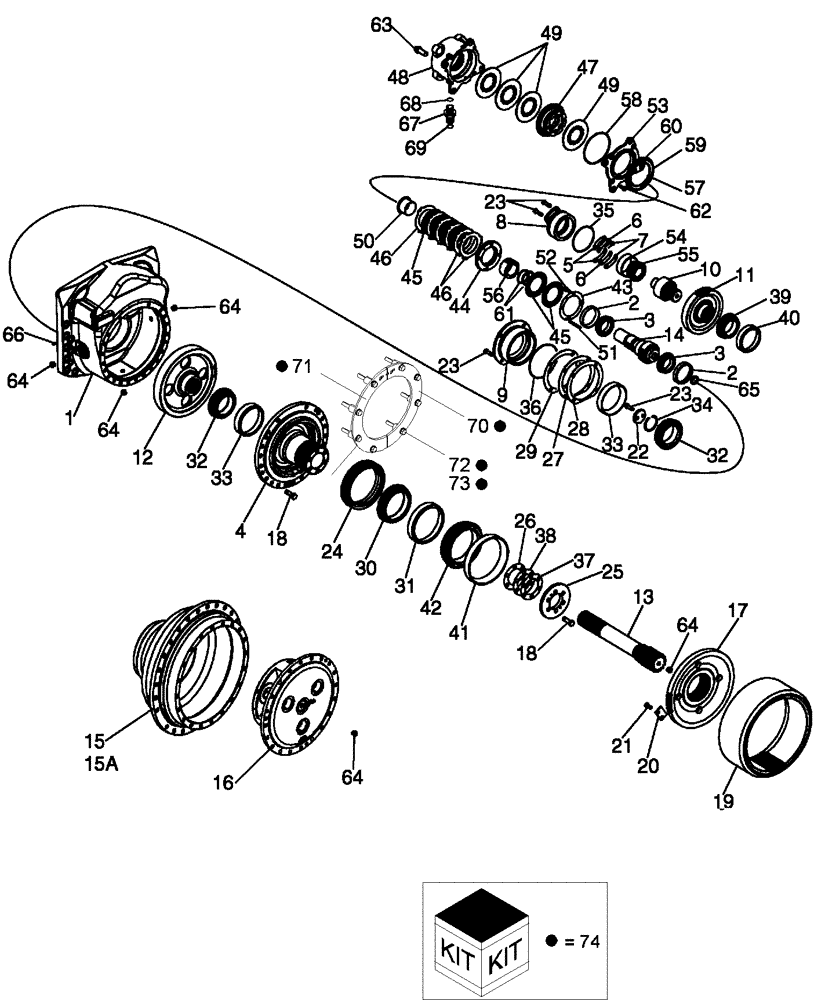

Запчасти Case 1150K (06-06) - FINAL DRIVE ASSEMBLY (06) - POWER TRAIN

87452179

DRIVE ASSY.

Final Drive, 70 Gage Narrow Extended Long Track (XLT; Includes Ref 1 - 14, 15A - 69; Also Includes Parts On Figure 06-07

2шт.

84311752R

REMAN-FINAL DRIVE

1150K SERIES 3,TIER III, Reman For New P/N 87452179

2шт.

84311752C

CORE-FINAL DRIVE

Return Number

2шт.

87452180

DRIVE ASSY.

Final Drive, 78 Gage Wide Track (WT) or Low Ground Pressure (LGP); Includes Ref 1 - 15, 16 - 69; Also Includes Parts On Figure 06-07

2шт.

84311759R

REMAN-FINAL DRIVE

1150K SERIES 3,TIER III, Reman For New P/N 87452180

2шт.

84311759C

CORE-FINAL DRIVE

Return Number

2шт.

1

87309904

HOUSING

Final Drive Housing

1шт.

2

A136128

BEARING CUP

Cup

2шт.

3

A136127

ROLLER BEARING,2.5591" ID x 0.9055"

Cone

2шт.

4

87452186

SPINDLE

1шт.

5

G107613

SHIM

Shim; 0,08 mm thk; Idler Shaft Cover

1шт.

6

G107614

SHIM

Shim; 0,18 mm thk; Idler Shaft Cover

1шт.

7

G107615

SHIM

Shim; 0,51 mm thk; Idler Shaft Cover

1шт.

8

87452193

BEARING COVER,103.162 mm ID x 132.89 mm OD x 55.1 mm

Idler Gear Bearing Cover

1шт.

9

87452194

BEARING COVER,156.949 mm ID x 177.85 mm OD x 65 mm

Sun Gear Bearing Cover

1шт.

10

87610432

IDLER PINION

16T; Replaces 87309910

1шт.

11

87610438

DRIVEN GEAR

Gear, Idler Driven, 50T; Replaces 87309908

1шт.

12

87309911

DRIVEN GEAR

65T

1шт.

13

87309912

GEAR

Shaft, Sun Gear Final Drive

1шт.

14

87309907

GEAR

Pinion, Park Brake and Input

1шт.

15

87452188

HUB

87452180 Final Drive for WT or LGP

1шт.

15a

87452187

HUB,Final Drive

87452179 Final Drive for XLT

1шт.

16

87309913 Planetary Carrier Assembly; Not Serviced As An Assembly, See Figure 06-07

1шт.

17

87309916

RING CARRIER

Carrier, Ring Gear

1шт.

18

606-16050

BOLT,Hex, M16 x 50mm, Cl 10.9

47шт.

19

87309917

GEAR

Ring

1шт.

20

87452214

RETAINER

Ring Gear

6шт.

21

606-12025

BOLT,Hex, M12 x 25mm, Cl 10.9

12шт.

22

87452199

RETAINER

Sun Gear

1шт.

23

606-12040

BOLT,Hex, M12 x 40mm, Cl 10.9

10шт.

24

G107620

SEAL,193.22mm ID x 238.89mm OD x 42.46mm Thk

Face

1шт.

25

87452201

ADJUSTING PLATE

Bearing Adjust Plate

1шт.

26

87452202

SHIM,82mm ID x 133mm OD x 0.08mm Thk

Shim, 0,08 mm thk; 6 Mounting Holes

1шт.

27

87452195

SHIM

Shim, 0,08 mm thk; 4 Mounting Holes; Sun Gear Bearing

1шт.

28

87452196

SHIM

Shim, 0,18 mm thk; 4 Mounting Holes; Sun Gear Bearing

1шт.

29

87452197

SHIM

Shim, 0,51 mm thk; 4 Mounting Holes; Sun Gear Bearing

1шт.

30

G103915

TAPERED BEARING,142.88mm ID x 39.69mm W

Cone

1шт.

31

G100240

BEARING CUP,200.03mm OD x 34.13mm W

Bearing

1шт.

32

87313983

BEARING ASSY,99.97mm ID x 42mm W

2шт.

33

87313985

BEARING CUP,156.97mm OD x 34mm W

2шт.

34

D32043

RING

Snap, Internal

1шт.

35

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

36

238-5261

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

1шт.

37

87452203

SHIM,82mm ID x 133mm OD x 0.18mm Thk

0,18 mm thk; 6 Mounting Holes

1шт.

38

87452204

SHIM,82mm ID x 133mm OD x 0.51mm Thk

0,51 mm thk; 6 Mounting Holes

1шт.

39

65720C91

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

Cone

1шт.

40

65721C1

BEARING ASSY,3.1496" ID x 5.1181" OD x 1.378"

Cup

1шт.

41

A140151

BEARING CUP

Bearing

1шт.

42

A140150

ROLLER BEARING,6.875" ID x 1.875"

Bearing

1шт.

43

87368126

SHIM,106mm ID x 146mm OD x 0.1mm Thk

0,10 mm thk; Input Bearing

1шт.

44

87455988

RETAINING PLATE

Bearing Retaining Plate

1шт.

45

A188946

DRIVE PLATE,81.9mm ID x 127mm OD x 2.6mm Thk

Clutch Friction; Internal Teeth

6шт.

46

385244A2

BRAKE PLATE

Separator

6шт.

47

87577298

PISTON

Piston Brake

1шт.

48

87577295

HOUSING

Parking Brake Housing

1шт.

49

1997880C1

SPRING,70.15mm ID x 155mm OD x 3.5mm Thk

4шт.

50

87577303

SLEEVE

Spring Retainer

1шт.

51

837-8075

DOWEL,M8 x 75

Hardened

3шт.

52

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

4шт.

53

87452184

BRAKE PLATE

Plate, Park Brake Housing

1шт.

54

84987C1

BEARING ASSY

1шт.

55

84986C91

BEARING

Cone

1шт.

56

87452185

HUB

Park Brake Hub

1шт.

57

385236A2

SEALING RING

SEALRING 0,137 x 4,682 in

1шт.

58

385237A2

SEALING RING,3.48mm Thk x 156.59mm ID, 70 Duro

SEALRING 0,137 x 6,165 in

1шт.

59

87591920

O-RING,0.139" Thk x 6.48" ID, -260, Cl 7, 75 Duro

O-RING, Replaces 238-5260; Used on Some Models

1шт.

60

87591919

O-RING,0.139" Thk x 5.984" ID, -258, Cl 7, 75 Duro

O-RING, Replaces 238-5258; Used on Some Models

1шт.

61

101-11250

SNAP RING,#250, 2.356, Ext

2шт.

62

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

4шт.

63

868-20050

12 PT SCREW,M20 x 50mm, Cl 12.9

12 Point Flange Head Screw, M20 x 50; 12.9

4шт.

64

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl 237-6008 O-Ring

5шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

65

87567817

SEAL,28mm ID x 40mm OD x 7mm Thk

1шт.

66

87520606

PLUG

Expansion Type; 10 mm

1шт.

67

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl Ref 68, 69; Parking Brake Housing

1шт.

68

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Boss End

1шт.

69

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal End

1шт.

70

87487610

GUARD

Seal

2шт.

71

87487609

GUARD

Seal

2шт.

72

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

16шт.

73

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

16шт.

74

84226589

SEAL KIT

Seal Guard

1шт.

75

84335948

SERVICE KIT

Park Brake (Not Shown)

1шт.
