Запчасти Case 1150K (06-05) - FINAL DRIVE - MOUNTING (06) - POWER TRAIN

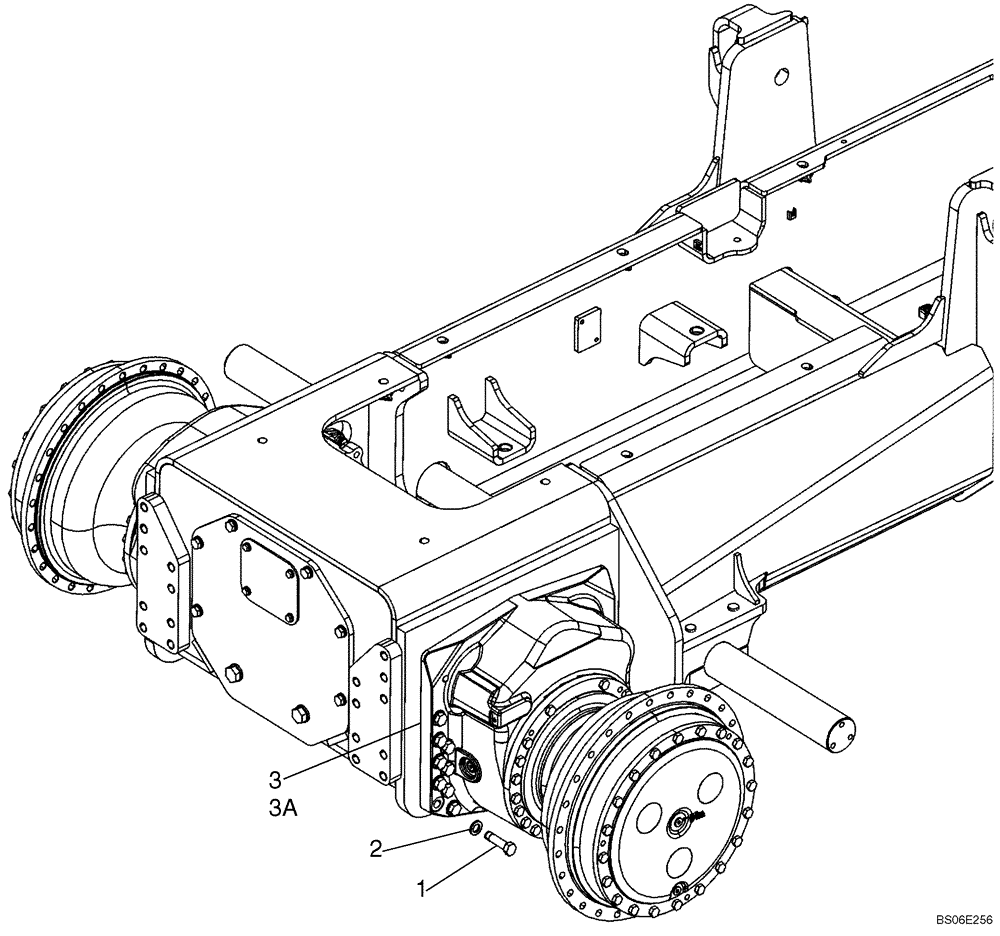

Схема запчастей Case 1150K - (06-05) - FINAL DRIVE - MOUNTING (06) - POWER TRAIN
2
3a
1
3

Артикул

Название

Примечание

Количество

1

87352548

BOLT,Hex, M20 x 75mm, Cl 10.9

M20 x 75 Locking Bolt

36шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

36шт.

3

87452179

DRIVE ASSY.

Final Drive, 70 Gage Narrow Extended Long Track (XLT); See Figure 06-06; Mounts to Rear Box on Main Frame, See Figure 09-07 for Final Drive Box Covers

2шт.

3

84311752R

REMAN-FINAL DRIVE

1150K SERIES 3,TIER III, Reman For New P/N 87452179

2шт.

3

84311752C

CORE-FINAL DRIVE

Return Number

2шт.

3a

87452180

DRIVE ASSY.

Final Drive, 78 Gage Wide Track (WT) or Low Ground Pressure (LGP); See Figure 06-06; Mounts to Rear Box on Main Frame, See Figure 09-07 For Final Drive Box Covers

2шт.

3a

84311759R

REMAN-FINAL DRIVE

1150K SERIES 3,TIER III, Reman For New P/N 87452180

2шт.

3a

84311759C

CORE-FINAL DRIVE

Return Number

2шт.

Выбрано товаров: 8
