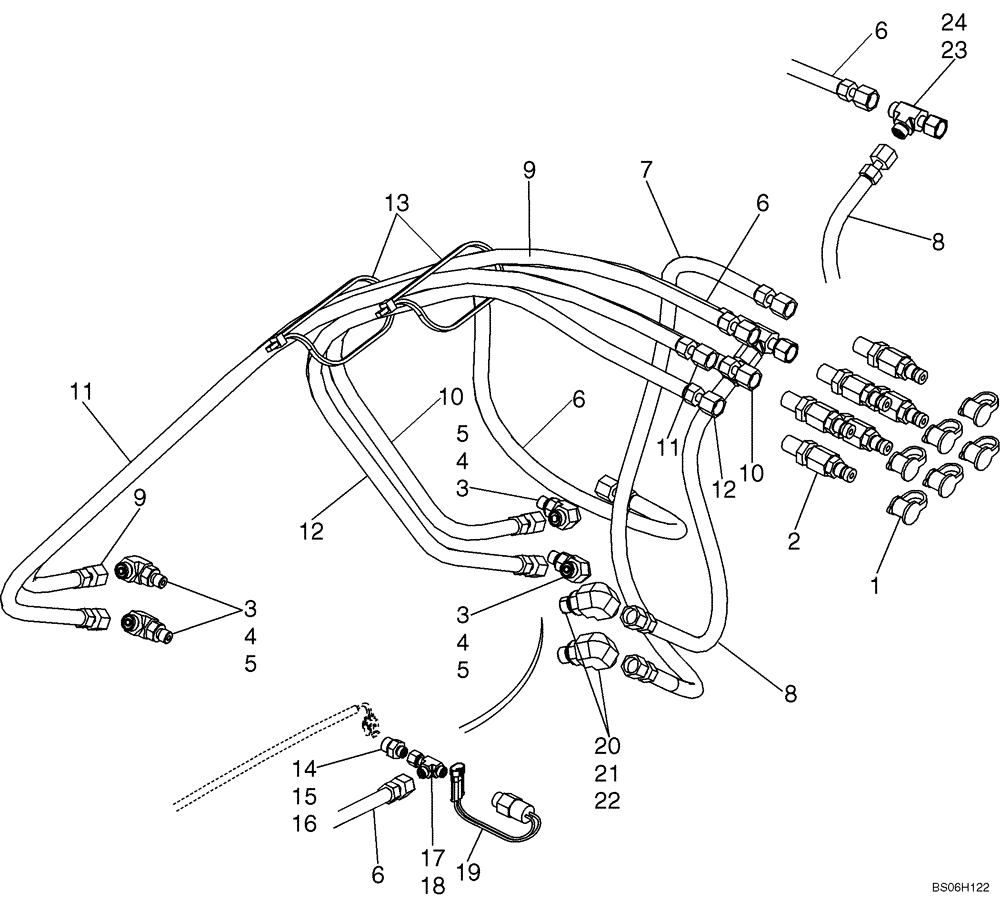

Запчасти Case 1150K (06-04) - DIAGNOSTIC LINES (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
H434163
DUST CAP
6шт.
2
442012A1
LUBE NIPPLE
Diagnostic Check; Component Parts Not Serviced Separately
6шт.
3
201-303
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
Incl. Ref 4, 5
4шт.
4
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End
1шт.
5
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
Boss End
1шт.
6
87341635
HOSE ASSY.
1025 mm (40-3/8 in); To Port G1 On The Front Pump Right Side
1шт.
7
87341636
HOSE ASSY.
945 mm (37-1/4 in); To Port MP On The Right Side Of The Equipment Valve
1шт.
8
87363587
HOSE ASSY.
500 mm (19-11/16 in); To Port PST On Right Side Of Equipment Valve
1шт.
9
87554401
HOSE,4.76mm ID x 1095mm L
Right Reverse; To Top Port On The Rear Pump; Left Side
1шт.
10
87554402
HOSE ASSY.
1030 mm (40-9/16 in); Left Reverse; To Top Port On The Front Pump, Right Side
1шт.
11
87554404
HOSE ASSY.
1150 mm (45-9/32 in); Right Forward; To Bottom Port On The Rear Pump, Left Side
1шт.
12
87554403
HOSE ASSY.
1105 mm (43-17/32 in); Left Forward; To Bottom Port On The Front Pump, Right Side
1шт.
13
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP
2шт.
14
201-119
FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB
9/16 ORFS x 3/4 ORB; Incl. Ref 15, 16
1шт.
15
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end
1шт.
16
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End
1шт.
18
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal
2шт.
19
87403648
PRESSURE SWITCH
1шт.
20
201-324
ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS
Includes Ref. Ref. 21, 22
2шт.
21
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End
1шт.
22
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Boss End
1шт.
24
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal
2шт.
Выбрано товаров: 24
