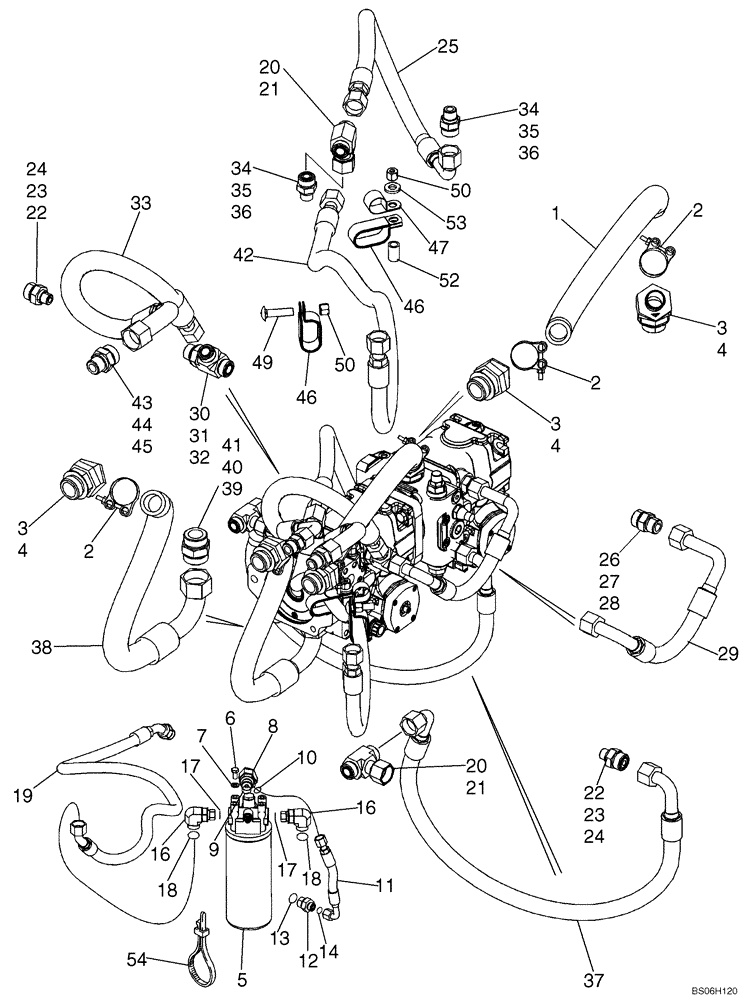

Запчасти Case 1150K (06-02) - HYDROSTATICS - PUMP, TANDEM SUPPLY AND RETURN TO FILTER (06) - POWER TRAIN

1

87337458

HOSE,31.75mm ID x 1080mm L, SAE 100R4

1080 mm (42-17/32 in); Supply From Tank to Front Pump

1шт.

2

87364086

CLAMP,1.62" - 1.88"

T-Bolt Clamp, 1-7/8 - 1-5/8

3шт.

3

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl. Ref 4

3шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

5

418237A1

FILTER ASSY

Hydrostatic; See Figure 06-08

1шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

Incl. Ref 9, 10

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

11

435014A1

HOSE ASSY.

252 mm (9-15/16 in); Filter To Tank; Charge Filter Bypass

1шт.

12

201-128

HYD CONNECTOR,13/16"-16 ORFS x 1 1/16"-12 ORB

Incl. Ref 13, 14

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

16

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Incl. Ref 17, 18

2шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

19

87369682

HOSE ASSY.

1590 mm (62-5/8 in); Filter Outlet To Hydrostatic Pump

1шт.

20

201-419

TEE,1 3/16"-12 ORFS x 1 3/16"-18 Sw Br

Incl. Ref 21

2шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

22

201-141

HYD CONNECTOR,1 3/16"-12 ORFS x 3/4"-16 ORB

Incl. Ref 23, 24

2шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

24

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

25

87337465

HOSE ASSY.

850 mm (33-1/2 in); Front Pump to Rear Pump

1шт.

26

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes Ref. 27, 28

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

28

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

29

429711A1

HOSE ASSY.

335 mm (13-1/4 in); Case Drain

1шт.

30

201-428

TEE,1-3/16" - 12 ORFS x 1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. Ref 31, 32

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

32

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

2шт.

33

87337466

HOSE ASSY.

985 mm (38-13/16 in); Pump Case Drain To Tank

1шт.

34

201-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

Incl. Ref 35, 36

2шт.

35

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

37

87538866

HOSE ASSY.

893 mm (35-3/16 in); Supply;, Serial Range: Pump-Pump

1шт.

38

87337471

HOSE ASSY.

1110 mm (43-3/4 in); Suction

1шт.

39

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

Incl. Ref 40, 41

1шт.

40

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss End

1шт.

41

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal End

1шт.

42

87337467

HOSE ASSY.

1450 mm (57-3/32 in); Rear Pump Outlet to Filter Inlet at Ref 16

1шт.

43

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1.0 In Dia; Incl. Ref 44, 45; Replaces 201-130, 3/4 In Dia; Used On Some Models

1шт.

44

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

45

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

46

242999A1

CLAMP

Double Clamp

2шт.

47

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

2шт.

49

811-12050

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8

1шт.

50

412126

NUT,M12 x 1.75

2шт.

52

487704R1

SPACER,3/4" Tube x 1 3/16"

1шт.

53

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

54

87429171

STRAP

Brown, 203 mm (8 inch)

1шт.
