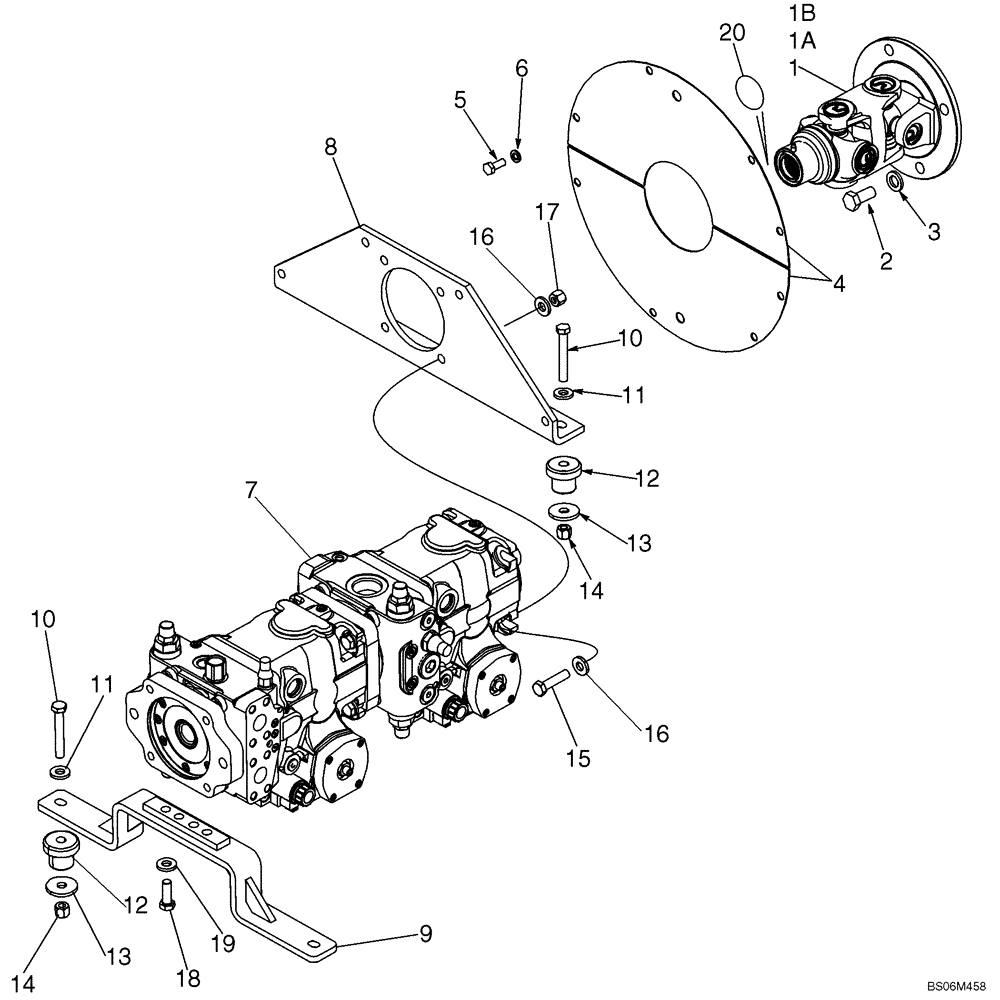

Запчасти Case 1150K (06-01) - MOUNTING - PUMP, HYDROSTATIC TANDEM AND DRIVESHAFT (06) - POWER TRAIN

1

87595461

DRIVE SHAFT

Driveshaft; W/ 50 mm (2.0 in) Dia Grease Cap, Incl. Ref 1A - 1B ; Replaces 87316187 Driveshaft W/ 45 mm (1.7 In) Dia Grease Cap; Used On Some Models

1шт.

87400942

UNIVERSAL JOINT

Driveshaft U-Joint; Incl. (4) 87280463 Snap rings, Plus A Cross Bearing Kit Which Is Not Serviced Separately that Includes (1) Spider, (4) Bearings, (4) Snap rings, (4) Lock Plates, (8) Bolts; For 87316187 Driveshaft

1шт.

1a

87596226

YOKE

Yoke, Driveshaft

1шт.

1b

87596225

CAP

Cap, Grease, 50 mm (2 In) Dia; Use with 345-149 Loctite 518 Sealant

1шт.

2

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

Use with Loctite 243

4шт.

3

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

4

385750A1

COVER

Flywheel Housing

2шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

7шт.

6

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

7шт.

7

87313547

PUMP,90 CC

Tandem; Hydrostatic; See Figure 06-12, 06-13

1шт.

7

87313547R

REMAN-HYDROSTAT PUMP

1150K TIER 3 (10/06-)

1шт.

7

87313547C

CORE-HYDROSTAT PUMP

Return Number

1шт.

8

87393140

SUPPORT

Front Pump Support

1шт.

9

87337470

BRACKET, SUPPORTING

Rear Pump Support

1шт.

10

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

4шт.

11

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

12

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

Front Mount

4шт.

13

D25022

WASHER

4шт.

14

412126

NUT,M12 x 1.75

4шт.

15

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

16

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

17

412126

NUT,M12 x 1.75

4шт.

18

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

Use With Loctite 243 Adhesive Thread

2шт.

19

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

20

L33673

OIL SEAL

Oil Seal

1шт.

87698063

HYD PUMP REPAIR KIT

For Pump Connecting Bolts; Includes (16) Bolts, (16) Rings, (2) O-Rings, (1) Adhesive Loctite 242/243

1шт.
