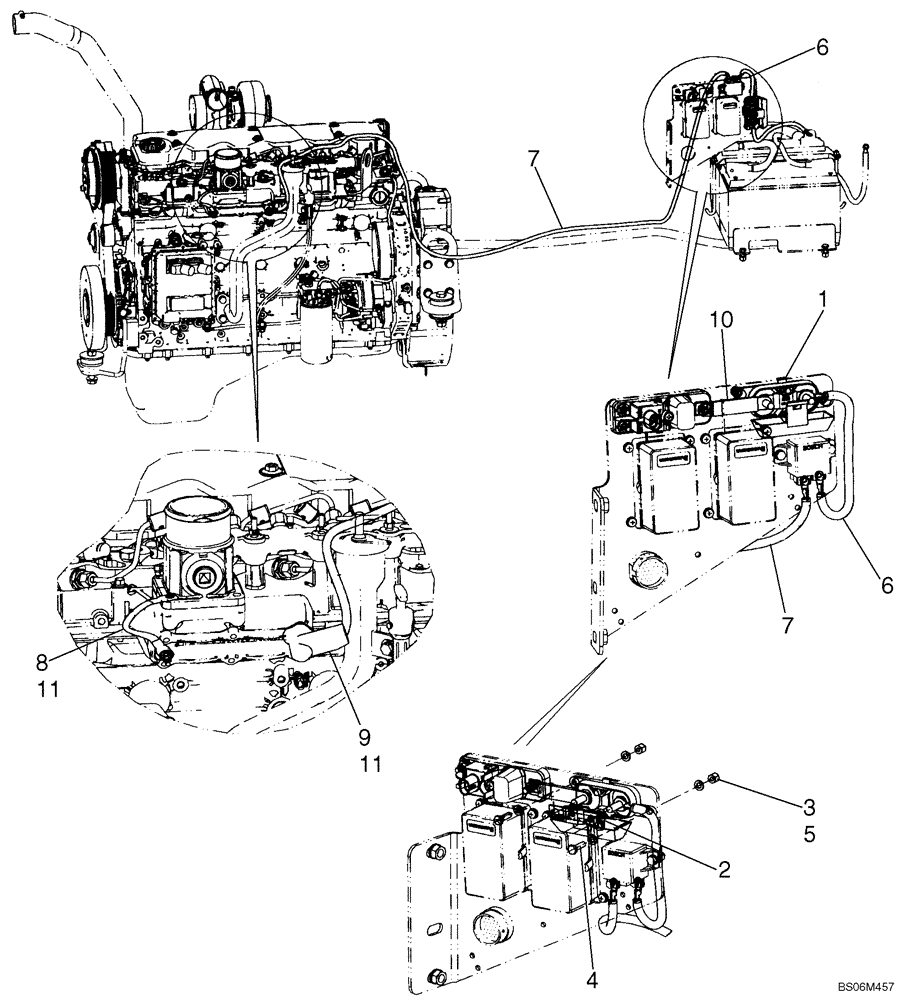

Запчасти Case 1150K (04-20) - GRID HEATER - CABLES (04) - ELECTRICAL SYSTEMS

1

440038A1

JUNCTION BLOCK

Fuse Block, Includes Hardware

1шт.

2

8501311

FUSE,150A, Megaval

150 Amp

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Power Relay, 24V

4-8шт.

4

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2-4шт.

5

832-10406

NUT,M6 x 1, Cl 8

2-4шт.

6

87592432

CABLE

Fuse To Relay

1шт.

7

87592431

CABLE

Relay To Grid Heater

1шт.

8

87413162

GROUND STRAP

Copper Ground, Cold Start

1шт.

9

L126713

BOOT

Fuse To Relay

1шт.

10

87592433

BAR

Cold Start

1шт.

11

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.
