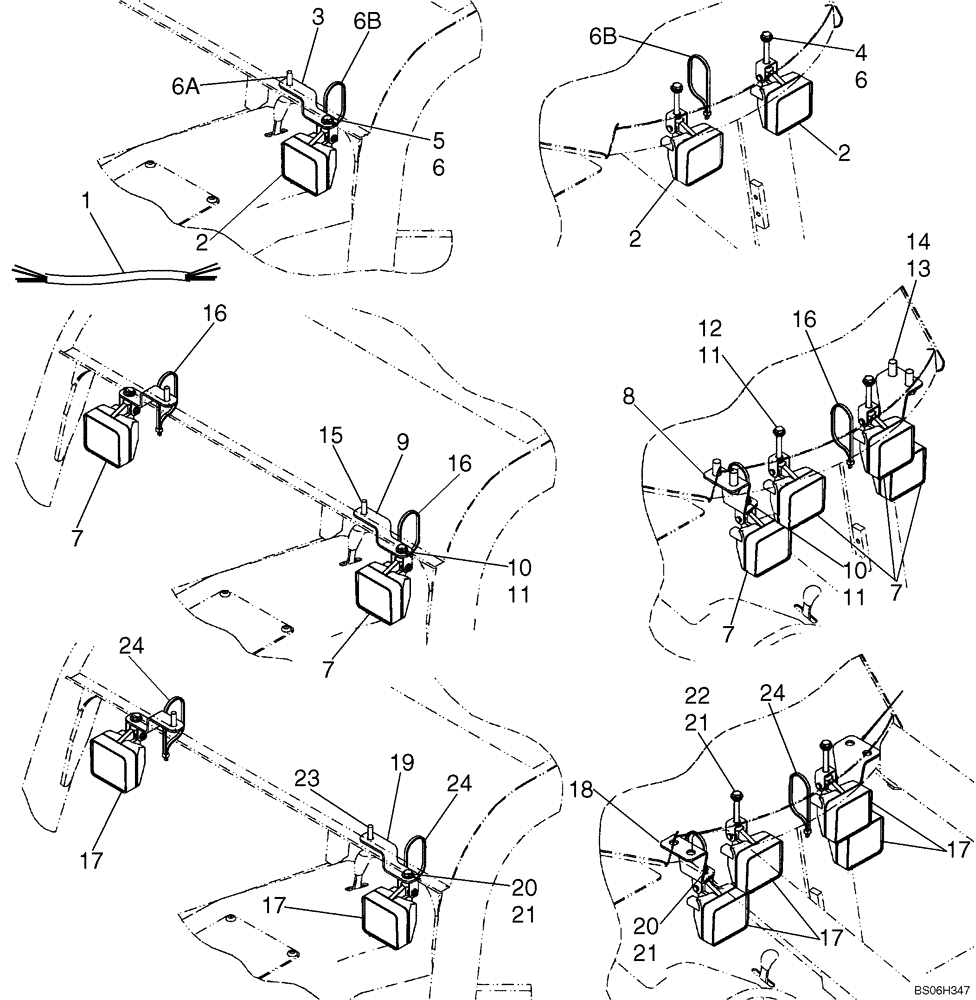

Запчасти Case 1150K (04-18) - LAMPS, ROPS CANOPY (04) - ELECTRICAL SYSTEMS

1

87370161

WIRE HARNESS

Canopy Lamp Harness

1шт.

REF

INSTRUCTION

STANDARD CANOPY LIGHT PACKAGE

1шт.

2

87555142

LIGHT ASSY.,Halogen, 24V, 65W, Clear

24V, 65W; Front and Rear Flood and Work Lamps; Incl. 87563198 Lamp

3шт.

87563198

BULB,24V, 65 WATT, H.D. H - 3

24V, 65W, Heavy Duty H3 Bulb

1шт.

2

47682624

WORK LAMP

LAMP, WORK, LED

3шт.

3

445105A1

BRACKET

Rear Lamp Bracket

1шт.

4

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

5

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

6a

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

1шт.

6b

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

2шт.

REF

INSTRUCTION

CANOPY WORK LIGHTS WITHOUT SWEEPS

1шт.

7

87555142

LIGHT ASSY.,Halogen, 24V, 65W, Clear

24V, 65W; Front and Rear Flood and Work Lamps; Incl. 87563198 Lamp

6шт.

87563198

BULB,24V, 65 WATT, H.D. H - 3

24V, 65W, Heavy Duty H3 Bulb

1шт.

8

87563197

BRACKET

Front Lamp Bracket

2шт.

9

445105A1

BRACKET

Rear Lamp Bracket

2шт.

10

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

12

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

13

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

15

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

16

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

4шт.

REF

INSTRUCTION

CANOPY WORK LIGHTS WITH SWEEPS

1шт.

17

87555142

LIGHT ASSY.,Halogen, 24V, 65W, Clear

24V, 65W; Front and Rear Flood and Work Lamps; Incl. 87563198 Lamp

6шт.

87563198

BULB,24V, 65 WATT, H.D. H - 3

24V, 65W, Heavy Duty H3 Bulb

1шт.

18

87563197

BRACKET

Front Lamp Bracket; Uses Existing Sweep Hardware

2шт.

19

445105A1

BRACKET

Rear Lamp Bracket

2шт.

20

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

22

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

23

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

4шт.
