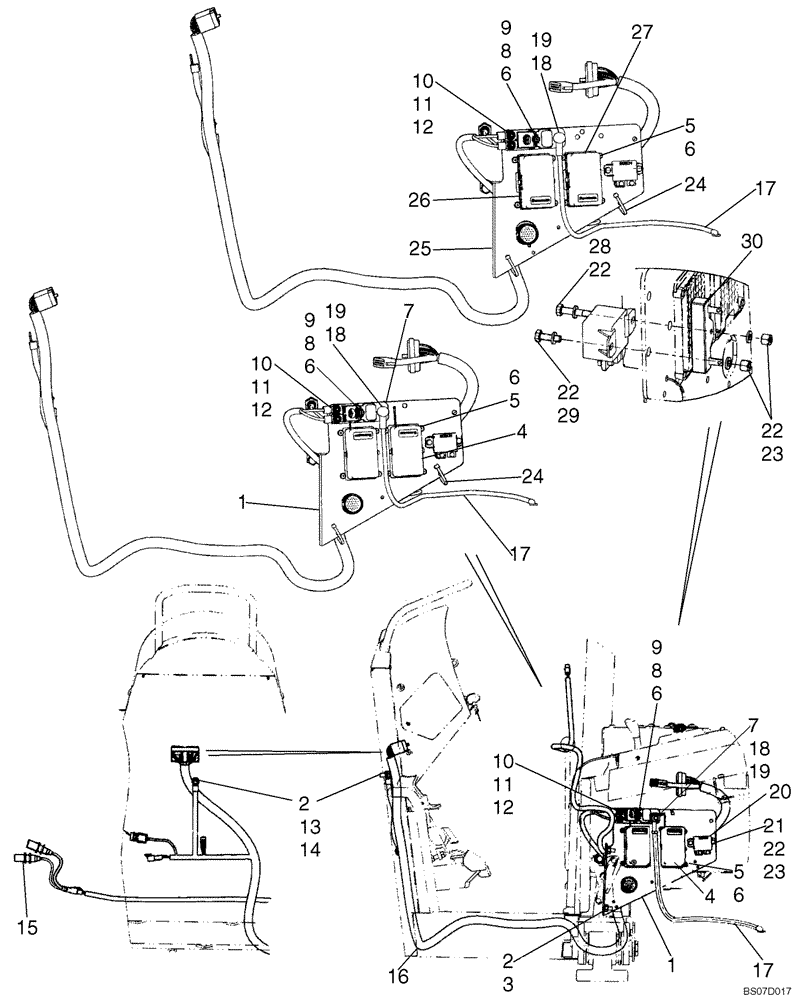

Запчасти Case 1150K (04-14A) - HARNESS, CAB/CANOPY (04) - ELECTRICAL SYSTEMS

1

87394755

BRACKET, SUPPORTING

Relay Mount; If Used

1шт.

2

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

3шт.

3

86500689

NUT,M10 x 1.5, Cl 10

2шт.

4

87315248

RELAY

Fuse Boxes; If Used

2шт.

5

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

8шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

9шт.

7

87315250

MODULE

Power Relay

1шт.

8

840-1545

SCREW,Phillips Drive, Pan HD, M5 x 45mm, Cl 4.8

1шт.

9

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

1шт.

10

86632601

LOCK WASHER,8.4mm ID x 15mm OD x 0.8mm Thk

2шт.

11

86625072

NUT,Hex, M6, Cl 10

Nut

2 - 4шт.

12

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

2 - 4шт.

13

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

14

86632602

LOCK WASHER,Ext Tooth, M10

1шт.

15

87596056

SWITCH

Proximity Switch

2шт.

16

87370164

WIRE HARNESS

1шт.

17

87608546

CABLE

Wire, Alternator

1шт.

18

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

20

1546485C1

RELAY,24V

24V Power

1шт.

21

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

If Used

2шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

23

832-10406

NUT,M6 x 1, Cl 8

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

2шт.

25

87630667

BRACKET, SUPPORTING

BRACKET, Fuse and Relay mounting; If Used

1шт.

26

87630519

BOX, FUSE

RELAY, Fuse Box; If Used

1шт.

27

87312843

FUSE BOX

If Used

1шт.

28

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

If used

1шт.

29

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

If Used

1шт.

30

F22316

RESISTOR,75 Ohms 0.2 Amps DC

Porcelain; If Used

1шт.

31

87696395

RELAY,5-PIN 280 SERIES 24V

Relay Micro 5 Pin 280 Series (24V)

4шт.

32

84208167

RESISTOR

Plug In, If Used, Not Illustrated

1шт.
