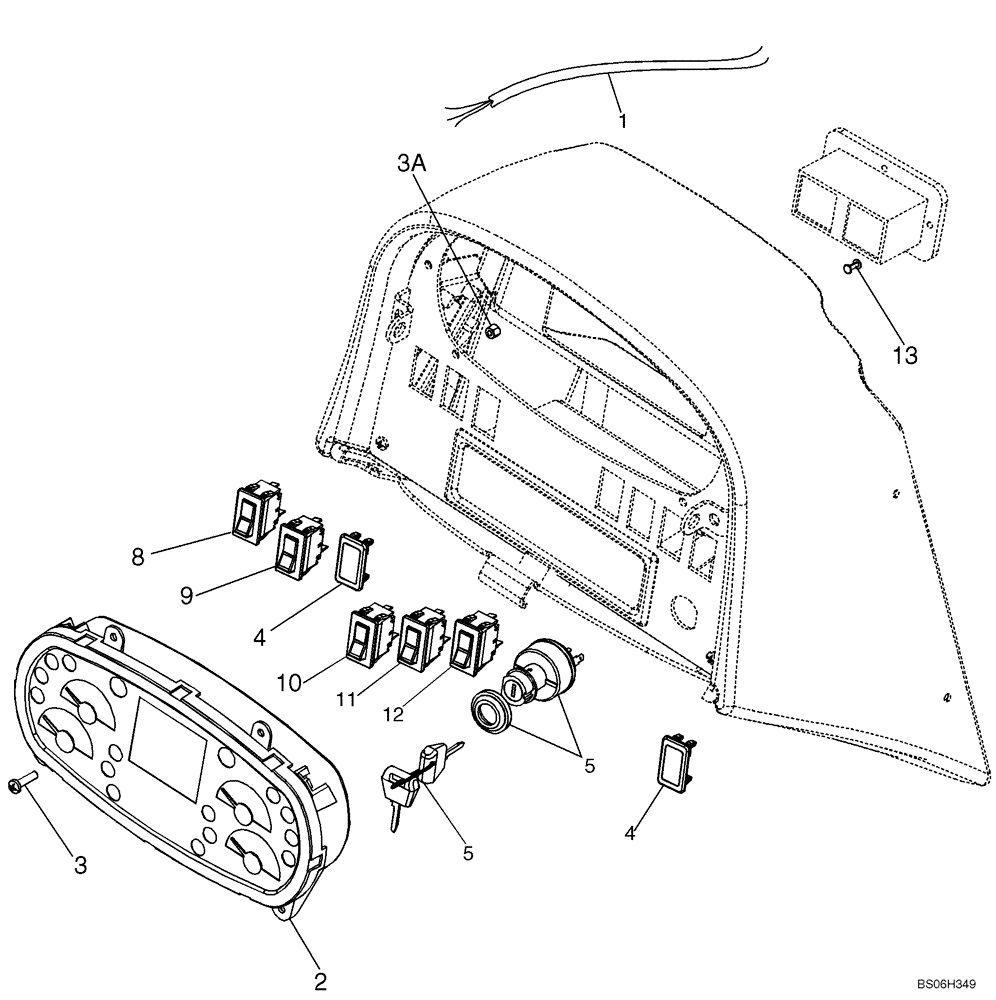

Запчасти Case 1150K (04-12) - HARNESS, FRONT CONSOLE AND SWITCHES - CANOPY, ROPS (04) - ELECTRICAL SYSTEMS

1

87370163

WIRE HARNESS

Front Console; Dashboard, Canopy Models

1шт.

2

87368814

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Instrument Cluster; Component Parts Not Serviced Separately

1шт.

2

87368814R

REMAN-INSTR CLUSTER

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-)

1шт.

2

87368814C

CORE-CLUSTER, INSTR

Return Number

1шт.

3

540-701

SCREW,Cross Pan Hd, M5 x 20

4шт.

3a

832-10405

NUT,M5 x .8, Cl 8

4шт.

4

86000535

PLUG,1.427" x .62", Plastic

Switch Hole

1-2шт.

5

282775A1

IGNITION SWITCH

Includes Padded Keys 1964831C2

1шт.

8

87536793

LIGHT SWITCH

Rocker; Front Work Lamps

1шт.

9

87536792

LIGHT SWITCH

Rocker; Rear Work Lamps

1шт.

10

87410087

ROCKER SWITCH

Rocker; Momentary, Up/Down

1шт.

11

87410091

ROCKER SWITCH

Rocker; Momentary, Display

1шт.

12

386852A2

SWITCH

Rocker; Horn

1шт.

13

86837478

RIVET,Pop, 1/8" x .650"

1/8 x 21/32 Rivet; Dashboard Harness to Rear of Console

4шт.
