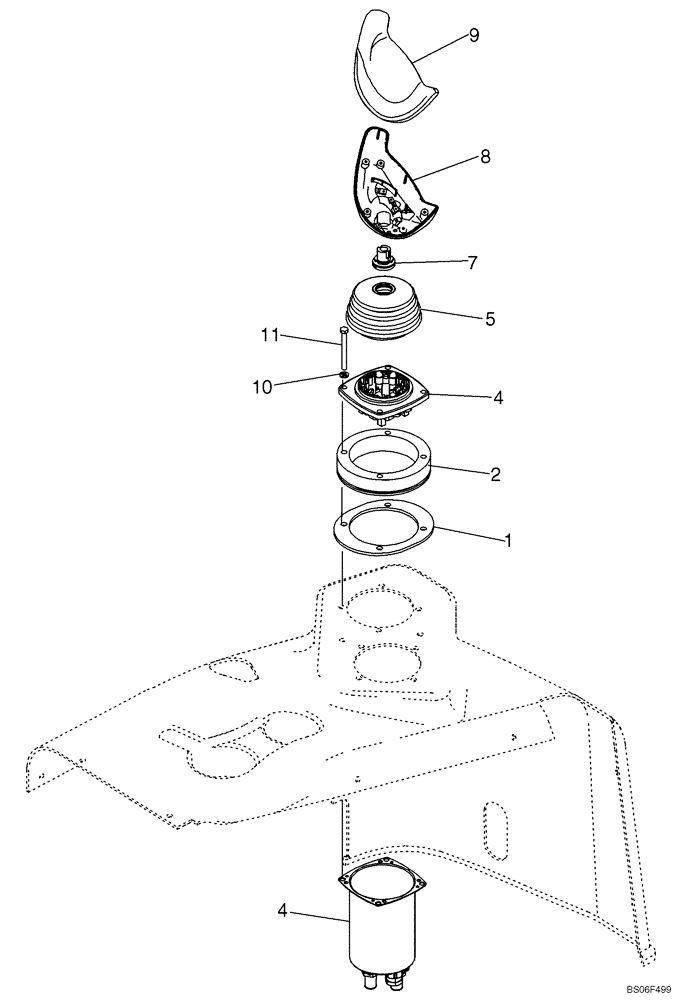

Запчасти Case 1150K (04-10) - BLADE CONTROL WITHOUT TWIST, JOYSTICK, ELECTRIC TWO CONNECTOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

84275670

JOYSTICK

Joystick Leveling

1шт.

1

87386605

RETAINING PLATE

Adapter Plate, Mounts on Top of Right Hand Console; No Longer Used, Not Required; For Lower Adapter Plate, See Figure 09-21

1шт.

2

87408590

MOUNTING PLATE

Drive Control Adapter

1шт.

87334644

CONTROL

Blade Assy; Mounts in Forward Hole in RH Console; Incl. Ref 4 - 9

1шт.

84167849R

REMAN ELECT CONTROL

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU), Blade Assy; Mounts in Forward Hole in RH Console (10/06-), Reman for New PN 87334644

1шт.

84167849C

CORE-ELECTRONIC CONT

Return Number

1шт.

4

87386589

CONTROL UNIT

Blade, Base

1шт.

5

87356983

BOOT

1шт.

87356984

HANDLE GRIP

Assy, Incl. Ref 7 - 9

1шт.

7

87388846

ADAPTER

Adapter, Grip

1шт.

8

87388848

HANDLE

Grip, Lower

1шт.

9

87388847

HANDLE

Grip, Upper

1шт.

10

892-11006

LOCK WASHER,M6

4шт.

11

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

Replaces 614-6060 60 mm long bolt used with Ref 1 Adapter Plate

4шт.
