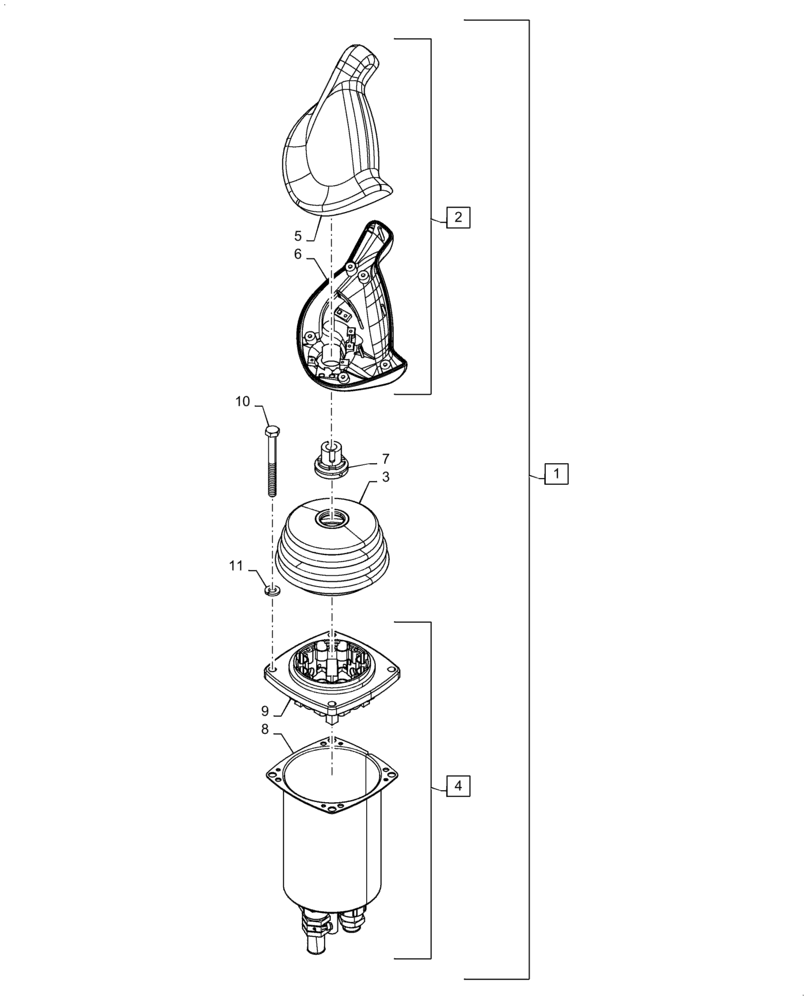

Запчасти Case 1150K (04-10[01]) - BLADE CONTROL JOYSTICK, WITH TWIST, 3 HARNESS CONNECTORS (04) - ELECTRICAL SYSTEMS

1

87572686

CONTROL

Dozer Blade Joystick, Incl 2 - 8

1шт.

2

87356984

HANDLE GRIP

Assembly, Incl Refs 5, 6

1шт.

3

87356983

BOOT

Cover

1шт.

4

84271668

CONTROL

Assembly, Shell, Upper Frame Contriller and Connectors, Incl. 8, 9

1шт.

5

87388847

HANDLE

Upper Grip

1шт.

6

87388848

HANDLE

Lover Grip

1шт.

7

87388846

ADAPTER

Controller to Grip

1шт.

8

NSS

NOT SOLD SEPARAT

Controller Lower Frame and Connectors, Incl in Ref. 4 and Ref. 1

1шт.

9

NSS

NOT SOLD SEPARAT

Upper Controller Frame, Incl in Ref 4 and Ref 1

1шт.

10

614-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8, Full Thd

4шт.

11

892-11006

LOCK WASHER,M6

4шт.
