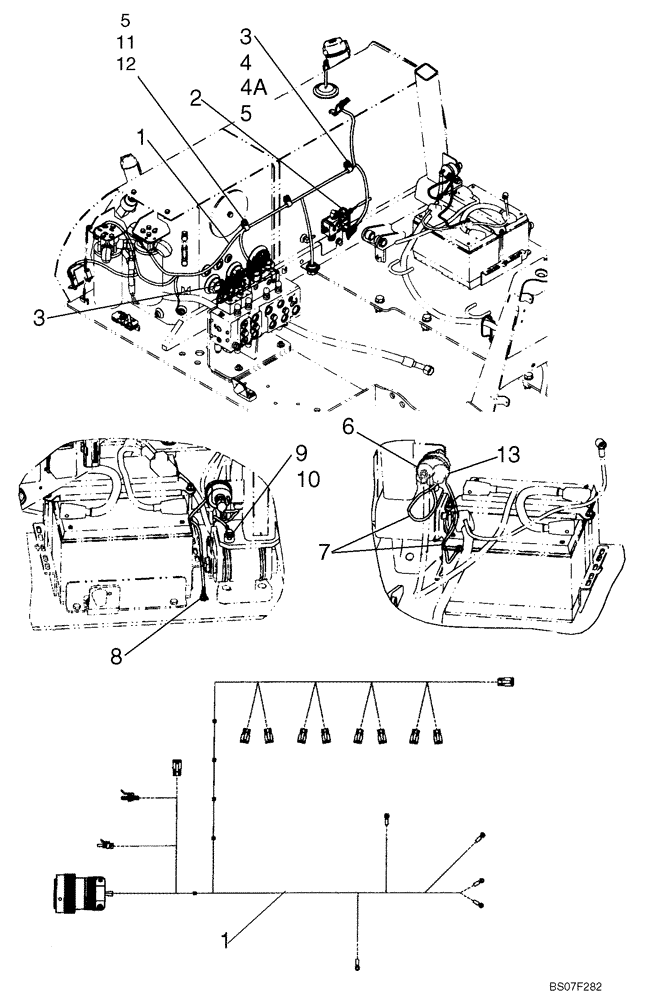

Запчасти Case 1150K (04-08) - HARNESS, EQUIPMENT CONTROL & MASTER DISCONNECT SWITCH (04) - ELECTRICAL SYSTEMS

1

87371137

WIRE HARNESS

Equipment Control; To Valves, Filters, Brake Valve, and Backup Alarm

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

1шт.

3

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

Insulated 19.0 mm, M10 Bolt; If Used

4шт.

4

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

Used With (3) 87340800 Spacers

3шт.

4a

87340800

SPACER,5/8" Tube x 15.88mm

Spacer

3шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

6

87409316

SWITCH

Master Disconnect; Component Parts Not Serviced Separately; Replaces R52278; Also See Figure 04-04

1шт.

7

87533236

GROUND CABLE

Ground Cable

2шт.

8

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

9

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

10

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

11

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

Insulated (12.7 mm); If Used

1шт.

13

87620402

BOOT

Electrical

2шт.
