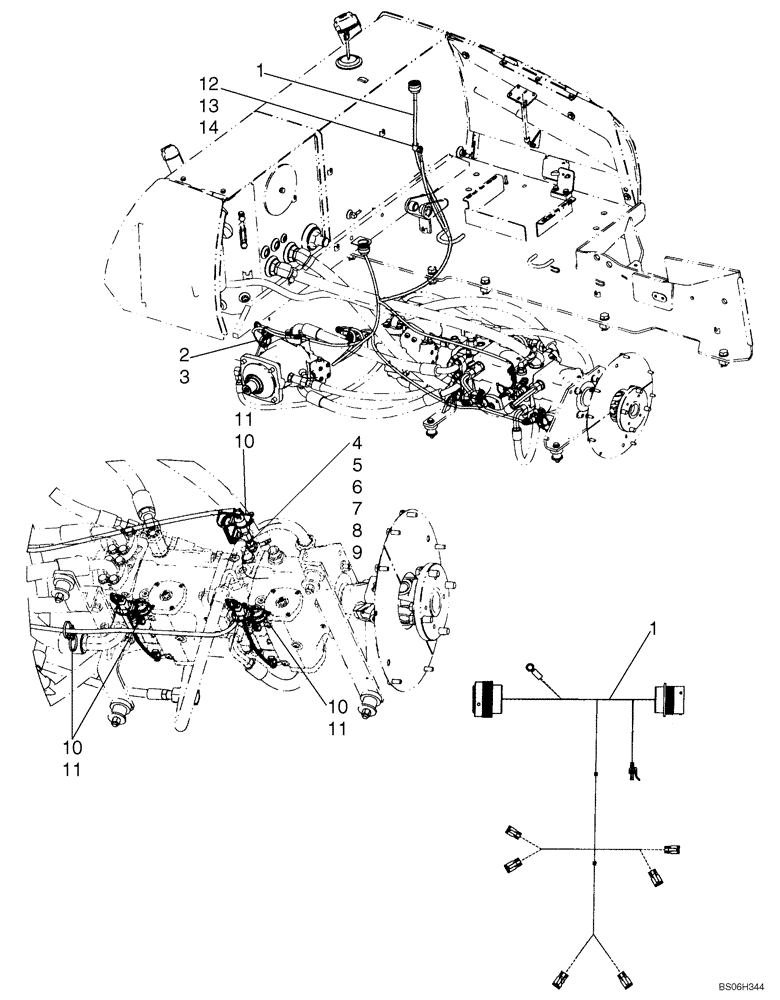

Запчасти Case 1150K (04-07) - HARNESS, PUMP AND MOTORS (04) - ELECTRICAL SYSTEMS

1

87370145

WIRE HARNESS

Pump and Motor Harness

1шт.

2

86982400

SPACER

Nylon Spacer Mount

2шт.

3

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

4шт.

4

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Incl. Ref 5, 6

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

6

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

7

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

Tandem Pump, Incl. Ref 8

1шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.

9

87403648

PRESSURE SWITCH

Charge

1шт.

10

86982400

SPACER

Nylon Spacer Mount

4шт.

11

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

8шт.

12

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

19 mm; M10 Bolt

1шт.

13

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

14

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.
