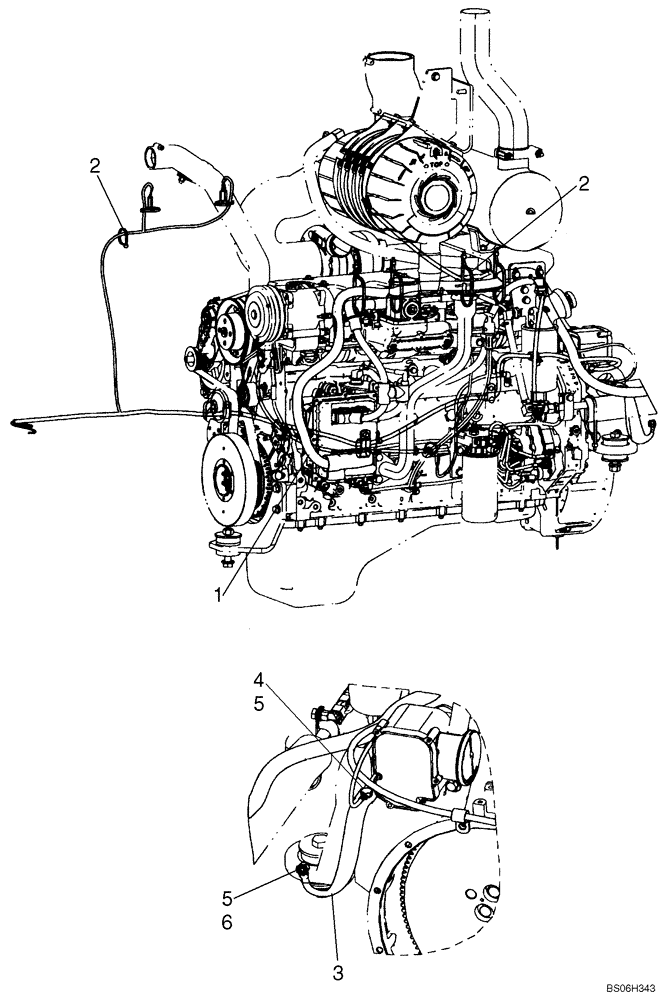

Запчасти Case 1150K (04-06) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR) (04) - ELECTRICAL SYSTEMS

1

87370148

WIRE HARNESS

Main, Engine; With ECU Connection; Attaches to Front Console Harness

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

1шт.

3

87407206

GROUND STRAP

, Serial Range: Engine-Chassis

1шт.

4

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

Engine Ground Wire to Ground Strap; If Used

1шт.

4

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

If Used

1шт.

5

893-11010

LOCK WASHER,Ext Tooth, M10

If used

2шт.

5

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

If Used

2шт.

5

893-11008

LOCK WASHER,Ext Tooth, M8

If Used

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

If Used

1шт.
