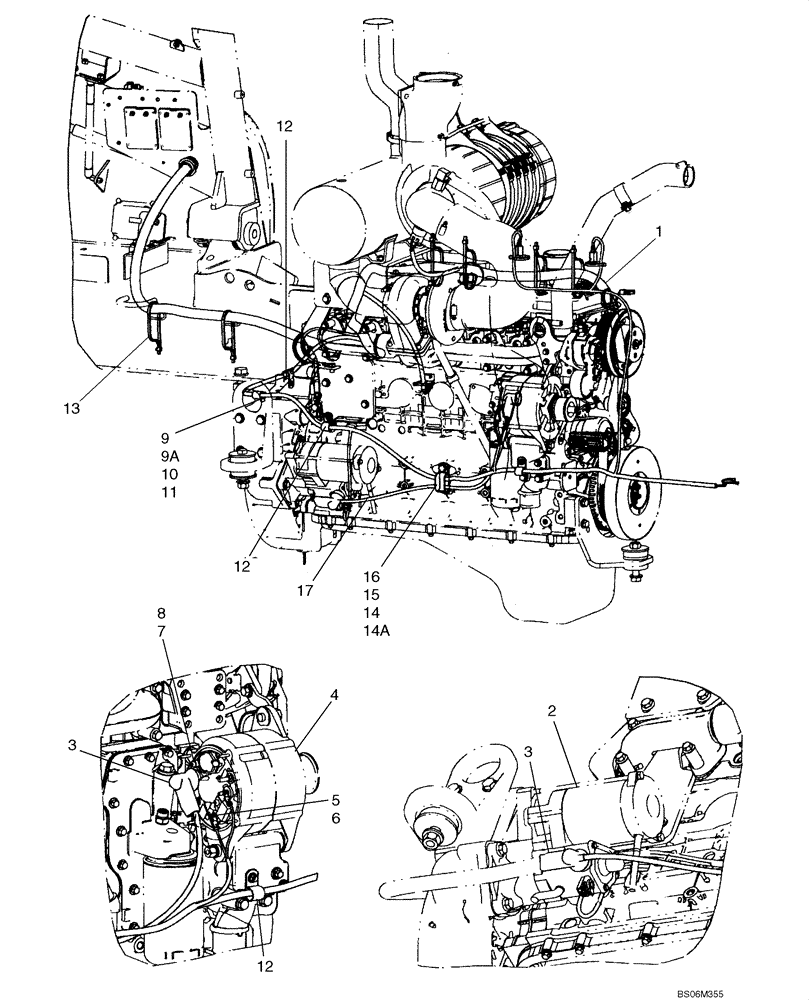

Запчасти Case 1150K (04-05) - HARNESS, ENGINE (RIGHT-HAND SIDE) - ALTERNATOR / STARTER (04) - ELECTRICAL SYSTEMS

1

87370148

WIRE HARNESS

Main, Engine; With ECU Connection; Attaches to Front Console Harness

1шт.

2

8605784

STARTING MOTOR

See Figure 04-01

1шт.

8605784R

REMAN-STARTER

1150K Tier 3 (10/06-)

1шт.

8605784C

CORE-STARTER

Return Number

1шт.

3

L126713

BOOT

2шт.

4

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

See Figure 04-02, 04-03

1шт.

4

1964860C1GV

ALTERNATOR

Value

1шт.

4

1964860C1R

REMAN-ALTERNATOR

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU), ENGINE (RIGHT-HAND SIDE) (10/06-)

1шт.

4

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

5

892-11004

LOCK WASHER,M4

1шт.

6

824-1404

NUT,M4, Cl 5

1шт.

7

492-11044

LOCK WASHER,7/16"

2шт.

8

425-107

NUT,7/16"-14, G5

1шт.

9

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

19 mm P Insulated; 7/16 Bolt ; If Used

1шт.

9a

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

(19 mm P Insulated; M12 Bolt); If used

1шт.

10

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

11

892-11010

LOCK WASHER,M10

1шт.

12

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

Use Existing Hardware

3шт.

13

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

1шт.

14

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

Double, 22.2 mm (0.8 In) Dia. ; If Used

1шт.

14a

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

Double, 15.7 mm (0.62 In) Dia; If Used

1шт.

15

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

16

892-11012

LOCK WASHER,M12

1шт.

17

84235903

WIRE

Starter To Alternator

1шт.
