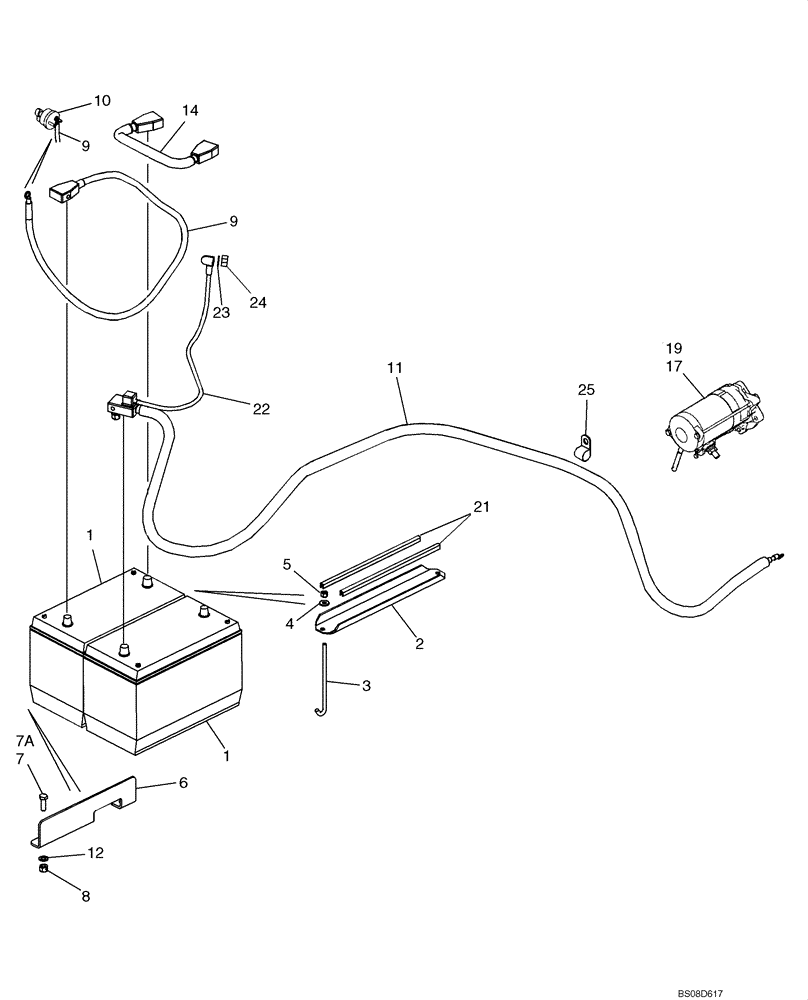

Запчасти Case 1150K (04-04) - BATTERY, DUAL (04) - ELECTRICAL SYSTEMS

1

A176482

WET BATTERY

BATTERY WET BMF31E 12V Dry

2шт.

1

BMF31EW

WET BATTERY

Case US Only

2шт.

1

CCMF31EW

WET BATTERY

Case Canada Only

2шт.

2

R46490

BRACKET

1шт.

3

416297A1

ROD

5/16

2шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

417789A1

ANGLE

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

No Longer Used; Order 614-10035

2шт.

7a

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

86982902

NEG BATTERY CABLE

Black; To Master Disconnect Switch

1шт.

10

87409316

SWITCH

Master Disconnect; Component Parts Not Serviced Separately; Replaces R52278; Also See Figure 04-08

1шт.

11

87390947

CABLE ASSY.

Positive, Red; To Starter

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

14

87532598

CABLE ASSY.

Cable, Red Wire, Includes Conduit;, Serial Range: Battery-Battery

1шт.

17

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

3шт.

19

8605784

STARTING MOTOR

See Figure 04-01

1шт.

8605784R

REMAN-STARTER

1150K Tier 3 (10/06-)

1шт.

8605784C

CORE-STARTER

Return Number

1шт.

21

D40442

MOLDING

Trim, 12 in, Cut From F42827 116 Inch Bulk Trim

2шт.

22

87608546

CABLE

Wire, Alternator; To Relay Mounting Panel

1шт.

23

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

25

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

Uses Existing Hardware

1шт.
