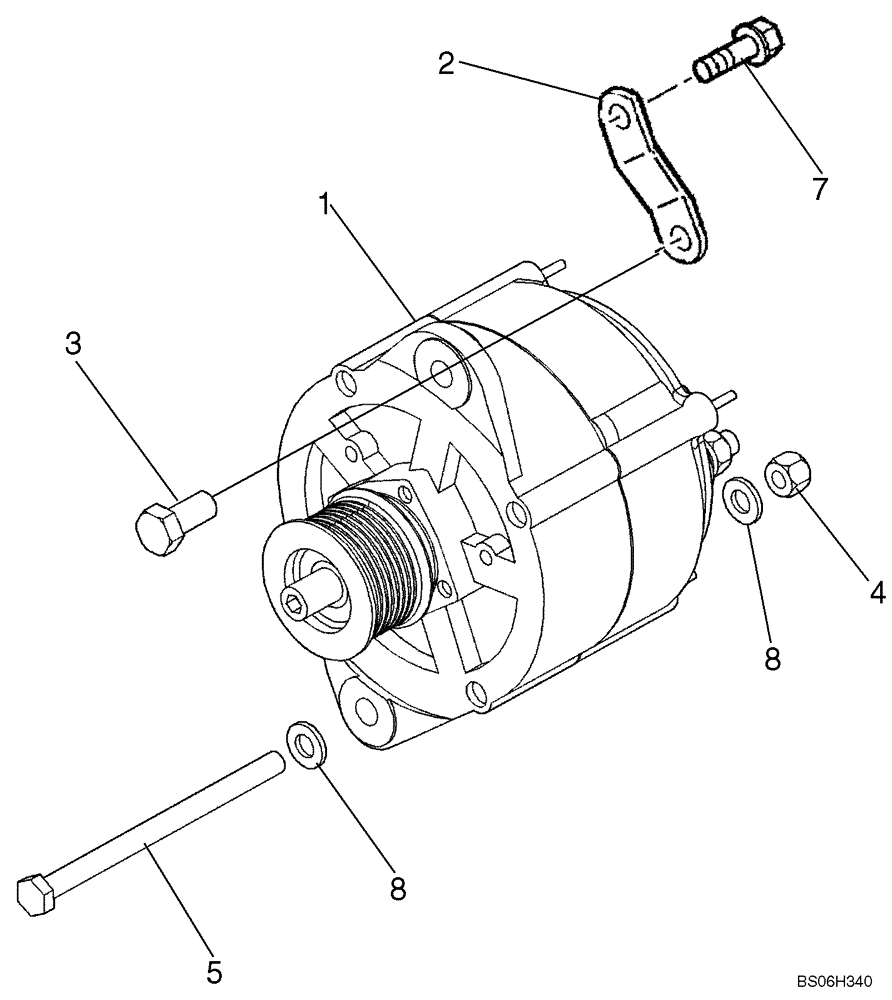

Запчасти Case 1150K (04-02) - ALTERNATOR - MOUNTING (04) - ELECTRICAL SYSTEMS

1

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

Assembly; See Figure 04-03

1шт.

1

1964860C1GV

ALTERNATOR

Value

1шт.

1

1964860C1R

REMAN-ALTERNATOR

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU), Assembly (10/06-)

1шт.

1

1964860C1C

CORE-ALTERNATOR

Return Number

1шт.

2

2855590

BRACKET

Mounting Strap; Incl. with Engine Assembly

1шт.

3

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Full Thread

1шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

5

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

1шт.

7

4899031

BOLT,Flng, M8 x 1.25 x 25mm

Included with Engine Assembly

1шт.

8

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.
