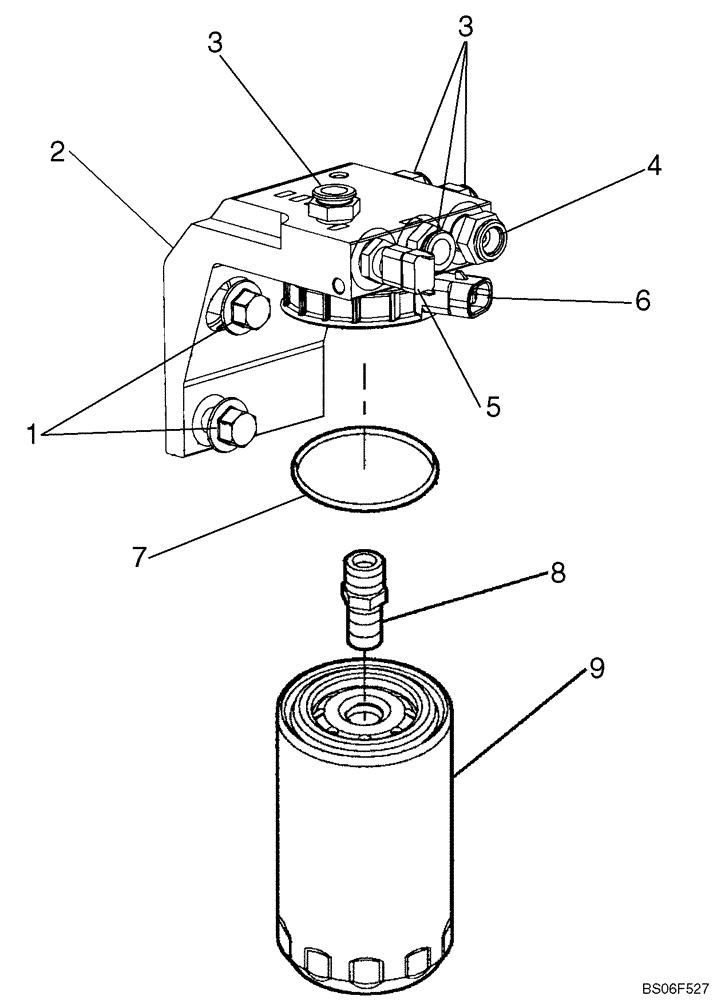

Запчасти Case 1150K (03-10) - FUEL FILTER (03) - FUEL SYSTEM

1

2854566

SCREW,Hex, M12 x 1.75 x 30mm

M12 x 30 Hex Flange Head Screw

2шт.

2854561

HOUSING

Filter Housing Assembly Includes Ref 2 - 8

1шт.

2

2854562

BRACKET

Support and Head

1шт.

3

2854563

FITTING

Quick Disconnect Connectors; Includes O-Ring

4шт.

4

2854564

FITTING,M12 x 1.5 - 12 H9

Quick Disconnect Connector; Includes O-Ring

1шт.

5

4897224

SENSOR

Temperature

1шт.

6

4897838

HEATER

Element

1шт.

7

4898876

O-RING,63.1mm ID x 3.53mm Width

1шт.

8

2854565

BUSHING

Threaded Bushing

1шт.

9

87803200

FUEL FILTER

, Serial Range: -9

1шт.
