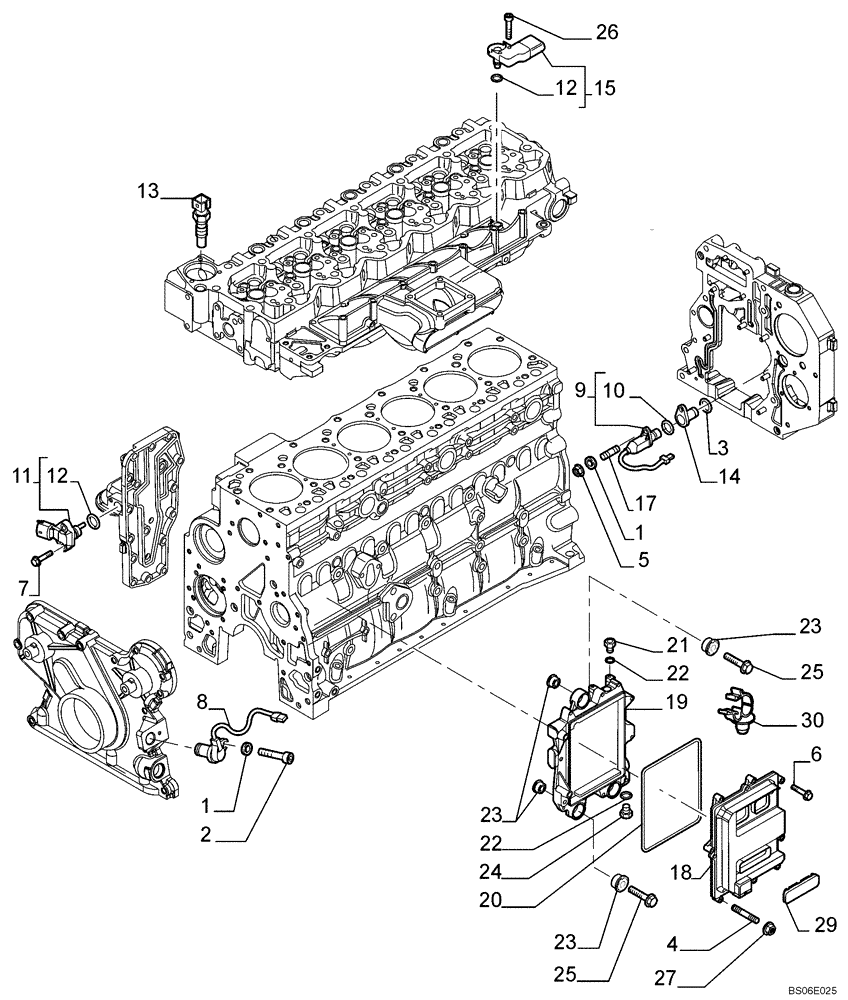

Запчасти Case 1150K (03-06) - FUEL INJECTION SYSTEM - MODULE, ENGINE CONTROL (03) - FUEL SYSTEM

1

4899124

WASHER

2шт.

2

4899082

HEX SOC SCREW,M6 x 20mm

1шт.

3

14453881

O-RING,23.52mm ID x 1.78" Width

Replaces 2852817

1шт.

4

2854593

STUD

1шт.

5

2854282

NUT,M6 x 1

Hex, M6 x 1

1шт.

6

2854083

BOLT,Flng, M6 x 1 x 30mm

Flange, M6 x 30; Replaces 2852818

7шт.

7

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

8

4890189

SENSOR

Speed

1шт.

9

4890190

SENSOR

ECM; Incl. Ref 10

1шт.

10

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

17.17X1.78MM

1шт.

11

4890193

SENSOR

Oil Temperature, Oil Pressure Sensor; Incl. Ref 12

1шт.

12

4895477

O-RING,2.62mm Thk x 13.94mm ID

549 ID x .103

1шт.

13

4897224

SENSOR

Temperature

1шт.

14

4892255

HOUSING

Sensor

1шт.

15

2852821

SENSOR

ECM, Incl. 12; Boost/Air Temperature

1шт.

17

4895157

STUD

1шт.

18

2854594

ECU

1шт.

18

2854594R

REMAN-MODULE

Remanufactured Electronic Control Unit

1шт.

18

2854594C

CORE-MODULE

CORE-MODUL Return Number, ELECTRONIC CONTROL UNIT

1шт.

19

2854595

BRACKET

SUPPORT ASSY; Electronic Unit; Incl. Ref 20 - 24

1шт.

20

2854079

GASKET,6.45mm Thk

1шт.

21

4896542

HYD CONNECTOR,M12 x 1.5 ORB x 6 ORFS

M12 x 1.5

1шт.

22

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

SEAL WASHER 12 x 17 x 1.5 mm Washer

2шт.

23

2855150

INSULATOR BLOCK

BUMPER Stop

6шт.

24

4890964

FITTING,M12 x 1.5

1шт.

25

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

3шт.

26

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

1шт.

27

4899057

FLANGE NUT,M6

1шт.

29

2852825

PLUG,100mm x 40mm L

Rubber

1шт.

30

2852486

CABLE CLIP

2шт.
