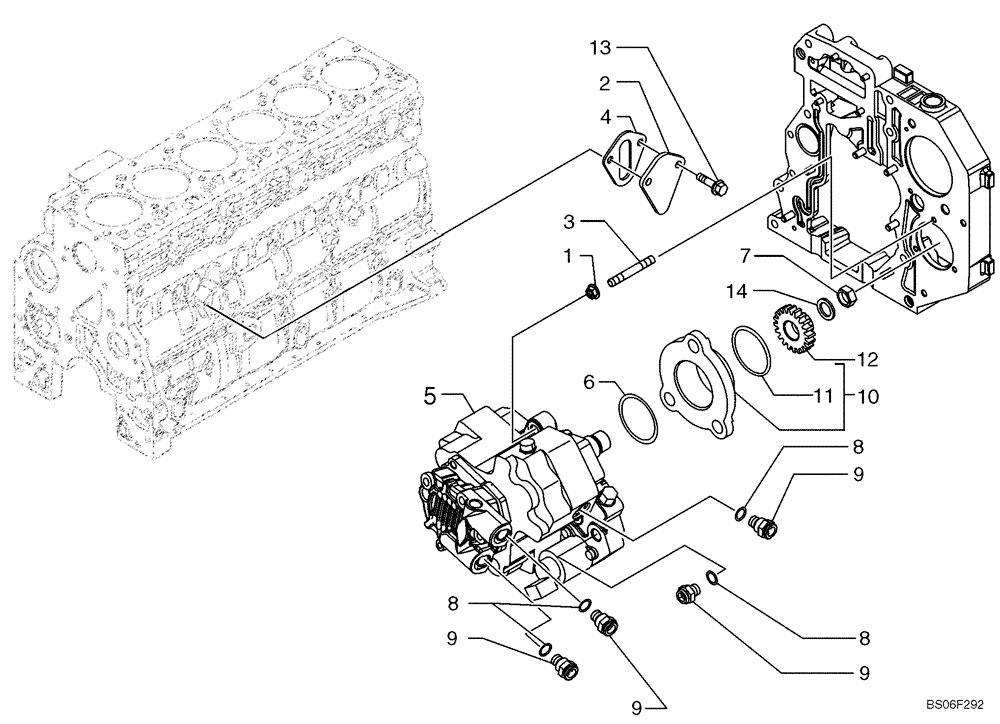

Запчасти Case 1150K (03-03) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

17044731

FLANGE NUT,Hex, M8 x 1.25, Cl 10

Replaces 4899003

3шт.

2

4896952

COVER

1шт.

3

2852488

STUD,M8 x 1,25 x 50mm

M8 x 1.25 x 50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

4898921

FUEL INJECTION PUMP

Incl. Ref 6 - 9, 14

1шт.

5

4898921R

REMAN-INJECTION PUMP

1шт.

5

4898921C

CORE-INJECTION PUMP

Return Number

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

M18 x 1.5

1шт.

8

93156604

GASKET

Replaces 4891385

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

M12, Quick Disconnect

4шт.

10

2852804

HUB

ASSY; Adapter, Incl. Ref 11

1шт.

11

2852805

O-RING,2.6mm Thk x 72.6mm ID

1шт.

12

4893389

DRIVEN GEAR,27T

Fuel Pump

1шт.

13

87803136

SCREW

Flange, M8 x 20; Replaces 2852234

2шт.

14

17095814

WASHER

Spring; Replaces 4890635

1шт.
