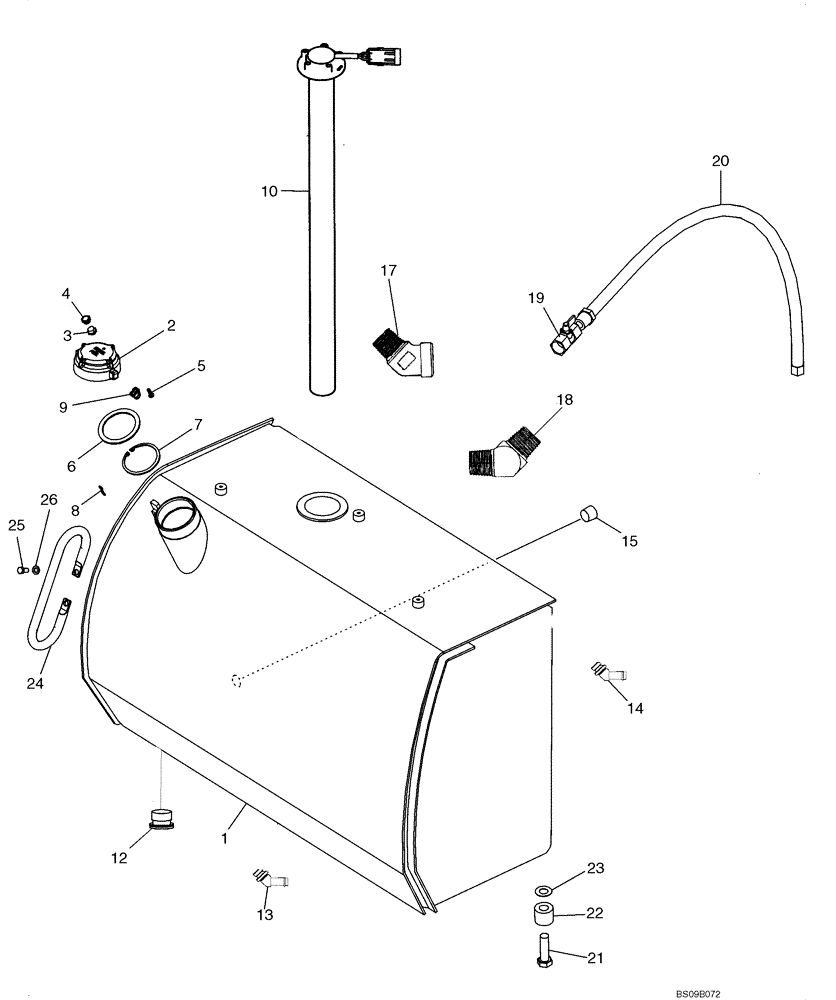

Запчасти Case 1150K (03-01A) - FUEL TANK (IF USED) (03) - FUEL SYSTEM

REF

INSTRUCTION

INSTRUCTION, DIFFERENCE IN TANKS ARE THE LIFTING BOSSES ON THE TOP OF THE TANKS; THESE HAVE THEM. FOR OTHER OPTIONS SEE FIGURE 03-01

1шт.

87695140

FUEL TANK

Complete; Incl. Ref 1 - 14; See Figure 09-09 For Tank Mounting

1шт.

1

NSS

NOT SOLD SEPARAT

Fuel Tank, Unpainted

1шт.

2

R57981

FILLER CAP

Incl. Ref 3 - 5; Service Replacement

1шт.

3

A50096

VALVE

Relief; Use With Loctite 592

1шт.

4

R57888

FILTER

Use With Loctite 592

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

Use with Loctite No. 242

1шт.

6

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

Rubber

1шт.

7

103-21300

SNAP RING,3.00", Int, #300

1шт.

8

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

9

R48634

FASTENER

Hook; Swivel

1шт.

10

87583890

SENDER UNIT

SENDER Fuel Level Sender; Incl. (5) 10-32 UNF Screws, Wiring Connector; Component Parts Not Serviced Seprarately

1шт.

12

86512333

PLUG

Plug, Drain, 1-1/4 PT; Use With Loctite 592

1шт.

13

87372529

45 ELBOW,1/2" Barb x 3/4"-16 ORB

1шт.

14

217-312

FITTING,45 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

Use With 345-147 Thread Sealant; Have Turned at 45 Degrees

1шт.

15

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

Use with Loctite 592

1шт.

17

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

If Used

1шт.

18

217-1209

ELBOW

45 Degrees, 1/2-14 Male; If Used

1шт.

19

86984713

SHUT-OFF VALVE

One-Way; Use With Loctite 592

1шт.

20

87413240

HOSE ASSY.

Environmental; Drain

1шт.

21

814-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

8шт.

22

87440363

SPACER,17.5mm ID x 34.9mm OD x 29mm L

8шт.

23

D44330

SHIM,.031" Thk

Washer

8шт.

24

87694407

HANDLE

Grab

1шт.

25

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

26

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.
