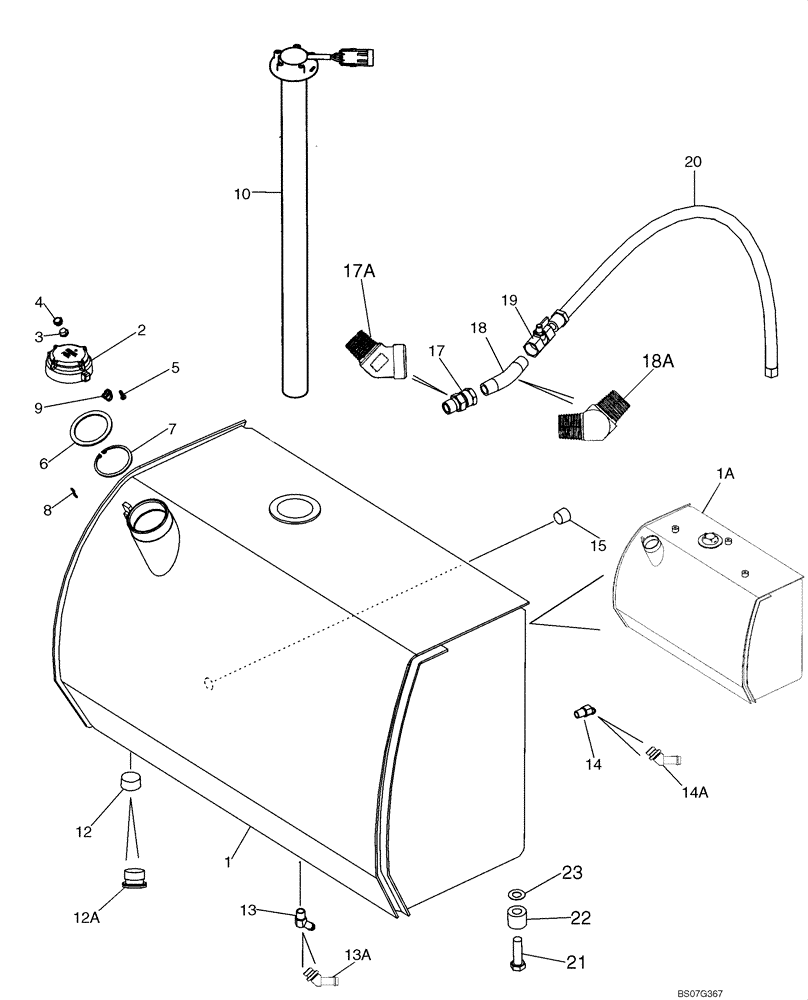

Запчасти Case 1150K (03-01) - FUEL TANK (IF USED) (03) - FUEL SYSTEM

REF

INSTRUCTION

INSTRUCTION, DIFFERENCE IN TANKS ARE THE LIFTING BOSSES ON THE TOP OF THE TANKS; THESE HAVE NONE. FOR OTHER OPTIONS SEE FIGURE 03-01A

1шт.

87456853

TANK

Complete; Without Lifting Bosses at the top of tank Incl. Ref 1, 2 - 10, 12, 13, 14, 15; See Figure 09-09 For Tank Mounting; If Used

1шт.

87695140

FUEL TANK

TANK, Complete;With Lifting Bosses at the Top of Tank, Incl. Ref. 1A-10, 12A, 13A, 14A, 15, See Figure 09-09 For Tank Mounting; If Used

1шт.

1

NSS

NOT SOLD SEPARAT

87456854 Unpainted Tank, Without Lifting Bosses; If Used

1шт.

1a

NSS

NOT SOLD SEPARAT

87695158 Unpainted Tank, With Lifting Bosses; If Used

1шт.

2

R57981

FILLER CAP

Incl. Ref 3 - 5; Service Replacement

1шт.

3

A50096

VALVE

Relief; Use With Loctite 592

1шт.

4

R57888

FILTER

Use With Loctite 592

1шт.

5

301-14712

SCREW,Drive, #12 x 3/4"

Use with Loctite No. 242

1шт.

6

R49868

GASKET,72mm ID x 90mm OD x 3mm Thk

Rubber

1шт.

7

103-21300

SNAP RING,3.00", Int, #300

1шт.

8

R47786

CHAIN (CE)

241 mm (9-1/2 in)

1шт.

9

R48634

FASTENER

Hook; Swivel

1шт.

10

87583890

SENDER UNIT

SENDER Fuel Level Sender; Incl. (5) 10-32 UNF Screws, Wiring Connector; Component Parts Not Serviced Seprarately

1шт.

12

221-37

PLUG

Drain, 1-1/4 PT; Use With Loctite 592; If Used

1шт.

12a

86512333

PLUG

Plug, O-Ring Boss Socket Head Plug, Incl. O-Ring 87695158; If Used

1шт.

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

13

217-143

ELBOW,45 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

If Used

1шт.

13a

87372529

45 ELBOW,1/2" Barb x 3/4"-16 ORB

Use with Tank with Lifting Bosses; If Used

1шт.

14

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

Use With 345-147 Thread Sealant; If Used

1шт.

14a

217-312

FITTING,45 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

Elbow, use woth Tank with Lifting Boses; If Used

1шт.

15

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

Use with Loctite 592

1шт.

17

218-903

HYD CONNECTOR,1/2" NPT x 1/2"

If Used

1шт.

17a

217-1086

45 ELBOW,45 Degree, 1/2"-14 Female x 1/2"-14 Male

If Used

1шт.

18

87415653

PIPE

Bent; Use With Loctite 592; If Used

1шт.

18a

217-1209

ELBOW

45 Degrees, 1/2-14 Male; If Used

1шт.

19

86984713

SHUT-OFF VALVE

One-Way; Use With Loctite 592

1шт.

20

87413240

HOSE ASSY.

Environmental; Drain

1шт.

21

814-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

Tank to Frame

8шт.

22

87440363

SPACER,17.5mm ID x 34.9mm OD x 29mm L

8шт.

23

D44330

SHIM,.031" Thk

Washer

8шт.
